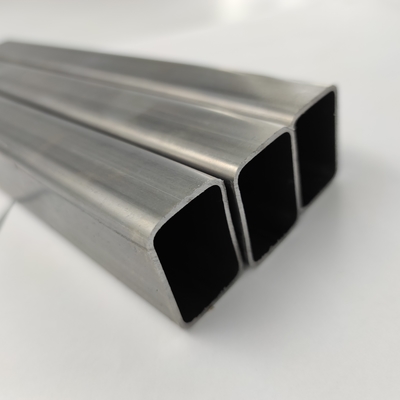

Jis G 3472 Stam 390g Tabung Baja Kekuatan Tinggi Untuk Struktural
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO 9001 TS 16949
Nomor Model:
JIS G3472
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, T/T
Kemampuan Penyediaan:
5000 ton per tahun
Ringkasan Produk
JIS G3472 STAM390G Tabung Baja Kekuatan Tinggi Untuk Struktural Dan Teknik Dalam Otomotif Nama merek: TORICHNomor Model: JIS G3452Sertifikasi: ISO 9001 ISO14001 TS 16949Tempat Asal: Cina Standar JIS G3452Aplikasi untuk pipa biasaDiameter 5-420mmKetebalan dinding 0,5-50 mmPanjang 12m maksimalKelas ...
Rincian produk
Menyoroti:
jis g 3472 tabung baja kekuatan tinggi
,stam 390g tabung baja kekuatan tinggi
,stam 390g tabung baja struktural
Thickness:
1 - 60 mm
Standard:
ASTM
Section Shape:
Persegi panjang persegi bulat
Alloy Or Not:
Non-Paduan
Secondary Or Not:
Non-sekunder
Outer Diameter(Round):
30 - 250 mm
Length:
Sesuai dengan permintaan pelanggan
Application:
Otomotif
Deskripsi Produk
JIS G3472 STAM390G Tabung Baja Kekuatan Tinggi Untuk Struktural Dan Teknik Dalam Otomotif
Nama merek: TORICH
Nomor Model: JIS G3452
Sertifikasi: ISO 9001 ISO14001 TS 16949
Tempat Asal: Cina
Standar JIS G3452
Aplikasi untuk pipa biasa
Diameter 5-420mm
Ketebalan dinding 0,5-50 mm
Panjang 12m maksimal
Kelas SGP
Jumlah pesanan minimum: 5 TON
Harga: negosiasi
Syarat pembayaran: T/T atau L/C
Kemampuan Penyediaan: 5.000 ton per tahun
Waktu Pengiriman: 30-60 hari setelah menerima pembayaran Anda
Rincian kemasan: Dikemas dalam bungkus atau kotak kayu atau atas permintaan.
Aplikasi: Pipa baja karbon pengelasan resistansi untuk struktur mobil.
Pengolahan panas: 1319°C - 1178°C.
| Komposisi Kimia (%) | ||
| Besi kelas | P | S |
| SGP | 0.040max | 0.040max |
| Properti Mekanis | ||
| Besi kelas | Kekuatan tarik Mpa | Elongasi% |
| SGP | 290 menit | 30 menit |
| Dimensi, Berat dan Toleransi Dimensi | |||||||
| Diameter nominal | OD ((mm) | Toleransi OD | WT mm | WT Toleransi | Massa satuan tidak termasuk soket kg/m | ||
| A | B | Pipa untuk dipotong dalam benang kerucut | Pipa lainnya | ||||
| 6 | 1/8 | 10.5 | ± 0,5 mm | ± 0,5 mm | 2.0 | +Tidak ditentukan - 12,5% | 0.419 |
| 8 | 1/4 | 13.8 | ± 0,5 mm | ± 0,5 mm | 2.3 | 0.652 | |
| 10 | 3/8 | 17.3 | ± 0,5 mm | ± 0,5 mm | 2.3 | 0.851 | |
| 15 | 1/2 | 21.7 | ± 0,5 mm | ± 0,5 mm | 2.8 | 1.31 | |
| 20 | 3/4 | 27.2 | ± 0,5 mm | ± 0,5 mm | 2.8 | 1.68 | |
| 25 | 1 | 34.0 | ± 0,5 mm | ± 0,5 mm | 3.2 | 2.43 | |
| 32 | 1 1/4 | 42.7 | ± 0,5 mm | ± 0,5 mm | 3.5 | 3.38 | |
| 40 | 1 1/2 | 48.6 | ± 0,5 mm | ± 0,5 mm | 3.5 | 3.89 | |
| 50 | 2 | 60.5 | ± 0,5 mm | ± 1% | 3.8 | 5.31 | |
| 65 | 2 1/2 | 76.3 | ± 0,7 mm | ± 1% | 4.2 | 7.47 | |
| 80 | 3 | 89.1 | ± 0,8 mm | ± 1% | 4.2 | 8.79 | |
| 90 | 3 1/2 | 101.6 | ± 0,8 mm | ± 1% | 4.2 | 10.1 | |
| 100 | 4 | 114.3 | ± 0,8 mm | ± 1% | 4.5 | 12.2 | |
| 125 | 5 | 139.8 | ± 0,8 mm | ± 1% | 4.5 | 15.0 | |
| 150 | 6 | 165.2 | ± 0,8 mm | ± 1,6 mm | 5.0 | 19.8 | |
| 175 | 7 | 190.7 | ± 0,9mm | ± 1,6 mm | 5.3 | 24.2 | |
| 200 | 8 | 216.3 | ±1,0mm | ± 0,8% | 5.8 | 30.1 | |
| 225 | 9 | 241.8 | ± 1,2 mm | ± 0,8% | 6.2 | 36.0 | |
| 250 | 10 | 267.4 | ± 1,3 mm | ± 0,8% | 6.6 | 42.4 | |
| 300 | 12 | 318.5 | ± 1,5 mm | ± 0,8% | 6.9 | 53.0 | |
| 350 | 14 | 355.6 | - | ± 0,8% | 7.9 | 67.7 | |
| 400 | 16 | 406.4 | - | ± 0,8% | 7.9 | 77.6 | |
| 450 | 18 | 457.2 | - | ± 0,8% | 7.9 | 87.5 | |
| 500 | 20 | 508.0 | - | ± 0,8% | 7.9 | 97.4 | |
JIS G 3452 Pipa baja karbon untuk pipa biasa
Pipa hitam tanpa lapisan seng
Pipa galvanis dengan lapisan seng
Metode produksi: ERW
Kondisi pengiriman:ERW
Kelas baja:SGP
Standar yang relevan: KS D 3507 ASTM A 53 API 5L DIN 2440 DIN 2441 BS 1387 BS 3601 JIS B 0203 JIS B 0253 JIS B 2301
