316l Flat Sided Oval Stainless Steel Tube Elliptical Pipe Untuk Pegangan Dan Pagar
Rincian produk
316l tabung stainless steel oval
,pagar tabung stainless steel oval
,pegangan tabung baja oval

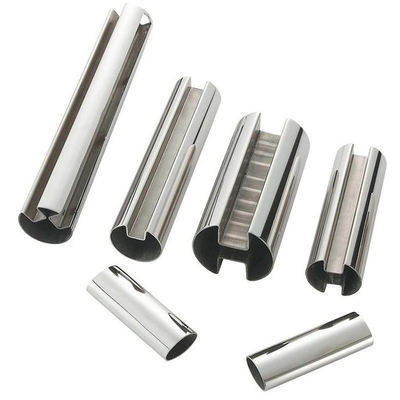

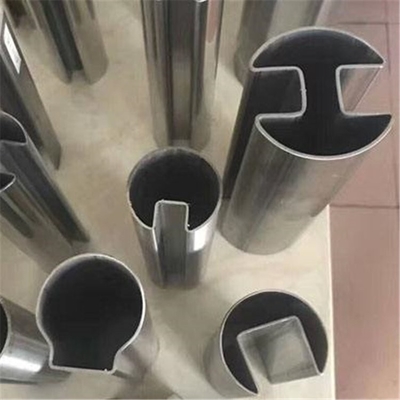

316L Stainless Steel Flat Side Oval Tube Pipa Elips
Standar:
ASTM A554, ASTM A269, ASTM A270.
JIS G3446, CNS 5802
EN 10217-7, EN 10296-2,EN 10305-2,EN 10305-5,
Bahan:Seri 300 SS301, SS304, SS304L. SS316, SS316L
Diameter luar:6mm sampai 219mm.
Ketebalan:0.25mm sampai 6.0mm
Toleransi:OD: +- 0.2mm, WT: +- 0.05mm, Panjang: +-5mm
Panjangnya:3000mm sampai 6000mm, atau pilihan.

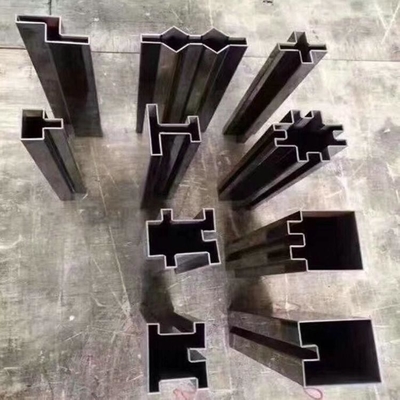

Jenis:tabung bulat, persegi, persegi panjang, alur, oval, bentuk;
Selesaikan:Rambut satin, # 80, # 180, # 240, # 320, # 400, # 600 polish
Kemasan:
A- satu pcs sleeve dalam kantong plastik dan kemudian dikemas oleh bundel tenun;
B- Berat bundel 50 kg maksimum;
C- Tanda tinta pada stiker harus melekat pada setiap tabung dan setiap bundel tenun;
Logo D-Customer dapat dibuat pada pipa atau kantong poli;
E-Paket dapat disesuaikan.
Aplikasi:
1. Bangunan
Pengendali, pagar, konstruksi pintu, dekorasi, furnitur, pagar.
2Industri,
Industri makanan untuk transfer tabung atau untuk membuat fittings lainnya.
3. Tubing komersial,
Instrumen Tubing, Petroleum, minyak dan gasboiler dll
-
