St52 Berlapis Krom DIN 2391 Batang Piston Berongga
Properti Dasar
Tempat Asal:
Zhejiang, CN
Nama merek:
TORICH
Sertifikasi:
ISO9001 ISO14001
Nomor Model:
DIN2391, EN10305, GB/T 1619
Properti Perdagangan
Jumlah Pesanan Minimum:
2 ton
Harga:
1000-1500usd per ton
Ketentuan Pembayaran:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Kemampuan Penyediaan:
5000 ton per tahun
Ringkasan Produk
ST52 Batang piston berongga berlapis krom Nama produk ST52 Batang piston berongga berlapis krom Bahan CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo, SS431, SS430, baja tahan karat 304/316/2205, dll. Kondisi Pengiriman Hard Chrome Piston Rod (HRC 15-20) Batang yang dipadamkan dan dipanaskan ...
Rincian produk
Menyoroti:
batang piston berlapis krom st52
,batang piston berongga st52
,batang piston berongga din2391
Product Name:
ST52 Batang Piston Berongga Berlapis Krom
Keyword:
Batang Piston ST52
Material:
CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo, SS431, SS430, Baja Tahan Karat 304/316/2205
Application:
untuk silinder hidrolik
Diameter Tolerance:
ISO f7/h8/g6
Roundness:
Setengah dari toleransi ISO f7
Deskripsi Produk
ST52 Batang piston berongga berlapis krom
| Nama produk |
ST52 Batang piston berongga berlapis krom |
| Bahan | CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo, SS431, SS430, baja tahan karat 304/316/2205, dll. |
| Kondisi Pengiriman |
Hard Chrome Piston Rod (HRC 15-20) |
| Kejujuran: |
<= 0,2/1000 |
| Ketidaksetaraan: | Ra <= 0,2 u |
| Diameter | Apelanggan️kebutuhan |
| Lapisan krom | 20 mikron (menit) sampai 100 mikron |
| Panjang | maksimal 13m |
| Kebulatan | DIN2391, EN10305, GB/T 1619 |
| Toleransi | ISO f7/h8/g6 |
| Bentuk | Bulat |
| Perlindungan: | minyak anti karat pada permukaan luar,Perlindungan sleeve kardus keras |
| Digunakan | Silinder hidraulik |
| Kemasan: | Kasus kayu |

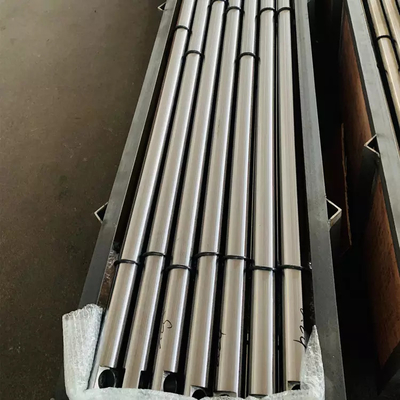

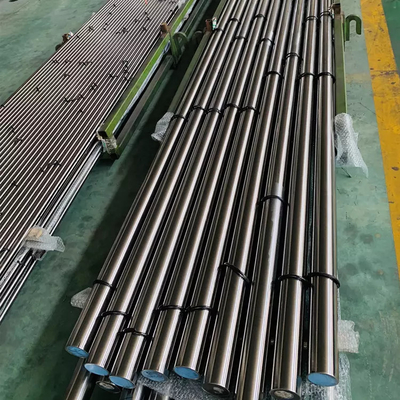

Piston Rod
Rod piston berlapis krom keras
