304 316 Stainless Steel Tube Handrail Datar Oval Dipoles Selesai
Rincian produk
Tabung Stainless Steel 316 Datar
,Tabung Stainless Steel 316 Oval

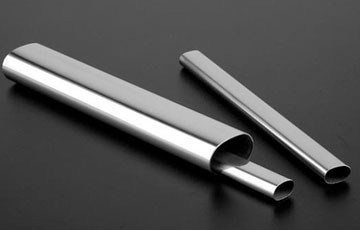

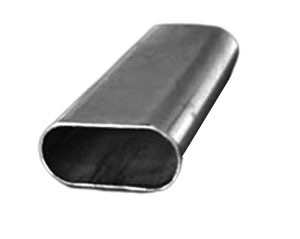

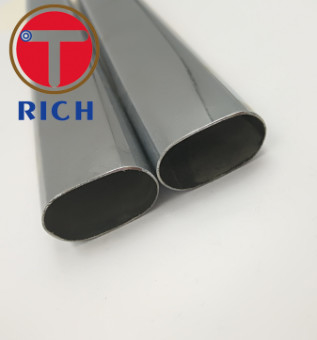

304 316 Stainless Steel Tube Handrail Pipe Flat Oval Tube
Pengembangan pipa berbentuk khusus terutama adalah pengembangan varietas produk,
Termasuk bentuk bagian, bahan dan kinerja.
Gambar Ini adalah metode yang efektif untuk menghasilkan pipa berbentuk khusus.
Ini cocok untuk memproduksi pipa berbentuk khusus dengan berbagai bagian dan bahan.
Untuk menghasilkan berbagai jenis pipa berbentuk khusus, kita juga harus memiliki berbagai
dari sarana produksi.
Pada tahun 1990-an, atas dasar menggambar dingin, Cina mengembangkan menggambar gulung
Rotary forging, rolling hidraulik, ekstrusi, dan rotary die,
Dan terus meningkatkan dan menciptakan peralatan dan proses baru.
| Asal usul | ZHEJIANG CHINA |
| Merek | Sejarah |
| Jenis | Pemasangan |
| Bahan | ss400 304,TP304,TP304L,TP304LN |
| Toleransi | ± 3% |
| Aplikasi | Rel,Rel,Konstruksi pintu,dekorasi, perabotan, pagar |
| Teknik | Bergelombang panas |
| OD | 40*120,40*100,65*114,55*160, |
| WT | 0.5-12mm |
Proses Produksi:
Tabung harus dibuat dari baja bergelombang datar dengan proses pengelasan otomatis tanpa
penambahan logam pengisi---- dingin ditarik ke bentuk tabung oval---- dipotong ke panjang yang diperlukan---- deburr
Komposisi kimia dari 304 stainless steel:
| Cr% | Ni% | C% | P% | Si% | Mn% | S% |
| 18-19 | 8-9 | 0.03-0.07 | ≤ 0.035 | ≤ 1 | ≤ 2 | ≤ 0.03 |
Kelas baja/bahan baja:
| Kelas baja | TP304 | TP304L | TP304LN | TP316 | TP316L |
| UNS | S30400 | S30403 | S30453 | S31600 | S31603 |
| C,maksimal | 0.08 | 0.035 | 0.035 | 0.080 | 0.035 |
| Mn, maksimal | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 |
| P, maksimal | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 |
| S, maksimal | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 |
| Ya, maksimal. | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Tidak | 18.0-20.0 | 18.0-20.0 | 18.00-20.00 | 16.0-18.0 | 16.0-18.0 |
| Cr | 8.0-11.0 | 8.0-13.0 | 8.00-12.00 | 11.0-14.0 | 10.0-14.0 |
| Mo | 2.00-3.00 | 2.00-3.00 |
-
