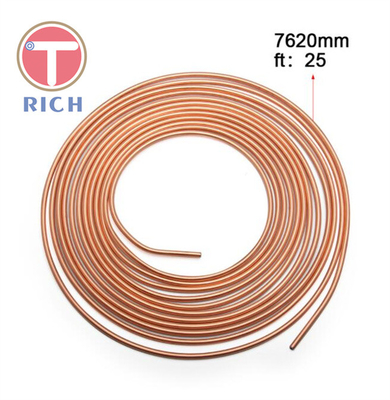

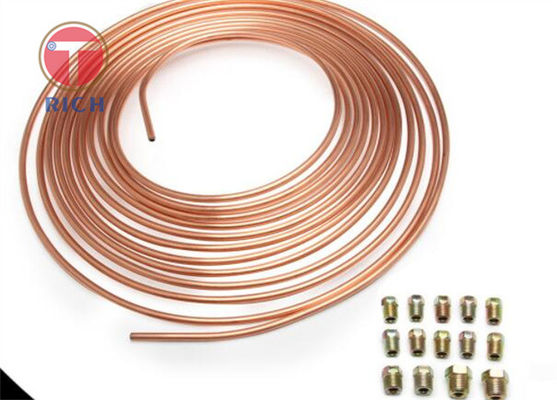

4.76X0.7mm PVF Mobil Pipa Tembaga Galvanis 25 Kaki Nyamuk Coil Emas
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO 9001 TS16949
Nomor Model:
SAE J527 b
Properti Perdagangan
Jumlah Pesanan Minimum:
3 ton
Harga:
4-6USD/kg
Ketentuan Pembayaran:
L/C, T/T
Kemampuan Penyediaan:
5000 ton per tahun
Ringkasan Produk
4.76X0.7mm PVF Mobil Galvanized Tembaga Pipe Brake Pipe 25 Feet Mosquito Coil Emas + 16 Aksesoris Detil cepat: Asal usul Cina Nama merek Torich Sertifikat ISO9001 TS16949 Bahan Tembaga galvanis Nama produk 4.76X0.7mm PVF Mobil Galvanized Tembaga Pipe Brake Pipe 25 Feet Mosquito Coil Emas + 16 ...
Rincian produk
Menyoroti:
SAE J527 Pipa Tembaga Galvanis
,Pipa Tembaga Galvanis PVF
,Tabung Baja Dilas SAE J527
Material:
Tembaga galvanis
Standard:
SAE J527
OD:
4.76-8.00 mm
WT:
0.7mm
Length:
Panjang lurus atau koil
Assurance Pressure:
350kg/cm3
Deskripsi Produk
4.76X0.7mm PVF Mobil Galvanized Tembaga Pipe Brake Pipe 25 Feet Mosquito Coil Emas + 16 Aksesoris
Detil cepat:
| Asal usul | Cina |
| Nama merek | Torich |
| Sertifikat | ISO9001 TS16949 |
| Bahan | Tembaga galvanis |
| Nama produk | 4.76X0.7mm PVF Mobil Galvanized Tembaga Pipe Brake Pipe 25 Feet Mosquito Coil Emas + 16 Aksesoris |
| Kapasitas | Memotong dan dibuat sesuai kebutuhan pelanggan |
Dimensi dan spesifikasi
| OD mm | Ketebalan mm | Berat g/m | Tekanan jaminan kg/cm3 |
| 4.76 | 0.7 | 70.28 | 350 |
| 6.00 | 0.7 | 91.76 | 350 |
| 6.35 | 0.7 | 97.75 | 350 |
| 7.00 | 0.7 | 108.75 | 350 |
| 7.14 | 0.7 | 111.17 | 350 |
| 8.00 | 0.7 | 126.31 | 350 |
Pengantar dasar:
Toleransi
O.D. dan W.T. +/- 0,08mm
Ukuran: 27.3*27*0.5cm
Berat: 0,62kg
Bahan: tembaga galvanis
Model yang berlaku: Universal

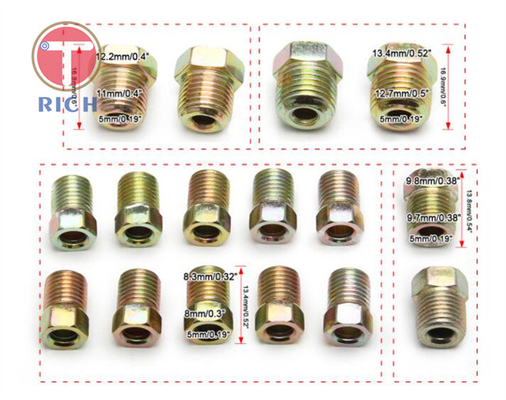

Ukuran aksesoris:
2 x 3/16 (7/16-24)
10 x 3/16 ′′ (3/8-24)
2 x 3/16 (1/2-20)
2 x 3/16 ′′ (9/16-18)
Tempat Asal: Zhejiang, Cina (Daratan)
Apa yang bisa kita lakukan:
Memotong dan dibuat sesuai kebutuhan pelanggan
Aplikasi:
Sistem rem
Kemasan:Kantong atauKasus kayu atau sesuai dengan kebutuhan klien
Pengiriman:Pengangkutan darat/pengangkutan laut
