Tabung Kapiler SS304 Baja Ringan Dingin Untuk Medis
Rincian produk
SS304 Tabung Kapiler Medis
,Tabung Kapiler Baja Ringan
,Tabung Baja Ringan Kapiler Dingin
Tabung Kapiler Baja Ringan SS304 Tabung Kapiler
Standar:ASTM, ASME, EN, JIS, DIN, GB/T dll
Kelas baja:304 ((0Cr18Ni9), 304L ((00Cr18Ni10), 316 ((0Cr17Ni12Mo2), 316L ((0Cr17Ni14Mo2), 321, 409, 409L, 430
Ukuran:OD 0.28-10mm WT 0.08-1mm Panjang≤ 500mm Atau dalam kumparan
Toleransi:OD +/- 0,01mm,WT +/- 0,01mm,L +/- 0,1mm
Perawatan permukaan: Polishing,Annealing, Mirro permukaan, Cerah, Picklin
Aplikasi: perawatan medis, minyak bumi, kedirgantaraan, peralatan medis, AC, industri kimia, elektronik, aksesori, mesin makanan, pembangkit listrik,bidang farmasi dan lainnya.
| 201 | 202 | 304 | 316 | S31803 | S32750 | ||
| Komposisi Kimia ((%) | C | ≤ 0.15 | ≤ 0.15 | ≤ 0.08 | ≤ 0.08 | ≤ 0.030 | ≤ 0.030 |
| Ya. | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 0.80 | |
| Mn | 5.5-7.5 | 7.5-10.0 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 1.20 | |
| P | ≤ 0.060 | ≤ 0.060 | ≤ 0.045 | ≤ 0.045 | ≤ 0.030 | ≤ 0.035 | |
| S | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.020 | ≤ 0.020 | |
| Cr | 16-18 | 17-19 | 18-20 | 16-18 | 21-23 | 21-23 | |
| Tidak | 3.5-5.5 | 4.0-6.0 | 8.0-10.5 | 16.0-18.5 | 4.5-6.5 | 6.0-8.0 | |
| Mo |
|
|
| 2.0-3.0 | 2.5-3.5 | 3.0-5.0 | |
| N | ≤ 0.25 | ≤ 0.25 |
|
| 0.08-0.2 | 0.24-0.32 | |
| Cu |
|
|
|
|
| ≤ 0.50 | |
| Sifat Mekanis | Kekuatan tarik ((MPa) | ≥ 655 | ≥ 620 | ≥515 | ≥515 | ≥ 620 | ≥ 800 |
| Kekuatan Pemanfaatan ((MPa) | ≥260 | ≥310 | ≥205 | ≥205 | ≥ 450 | ≥ 550 | |
| Perpanjangan ((%) | ≥ 35 | ≥ 35 | ≥ 35 | ≥ 35 | ≥ 25 | ≥ 15 | |
| Kekerasan ((HV) | ≤ 230 | ≤ 230 | ≤ 200 | ≤ 200 | ≤ 303 | ≤323 | |

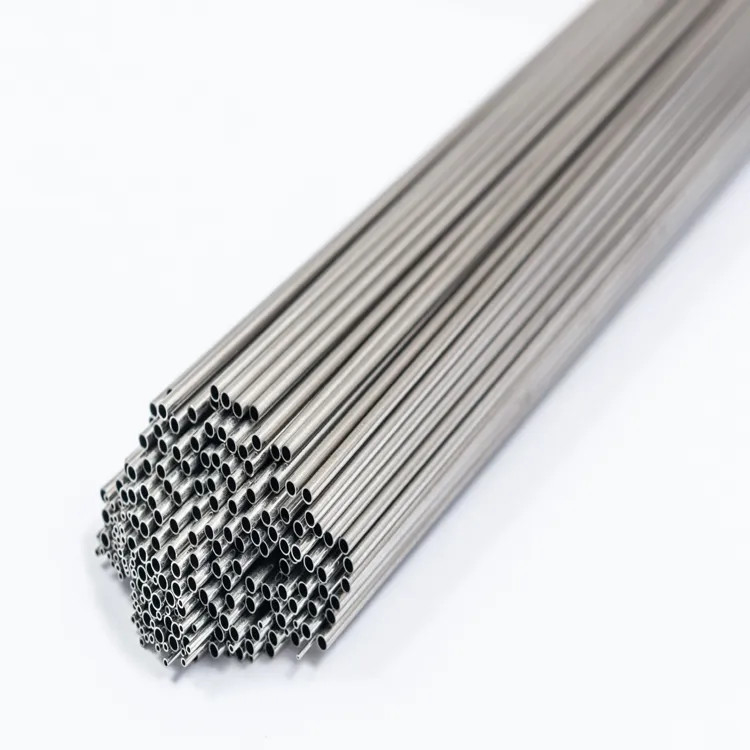

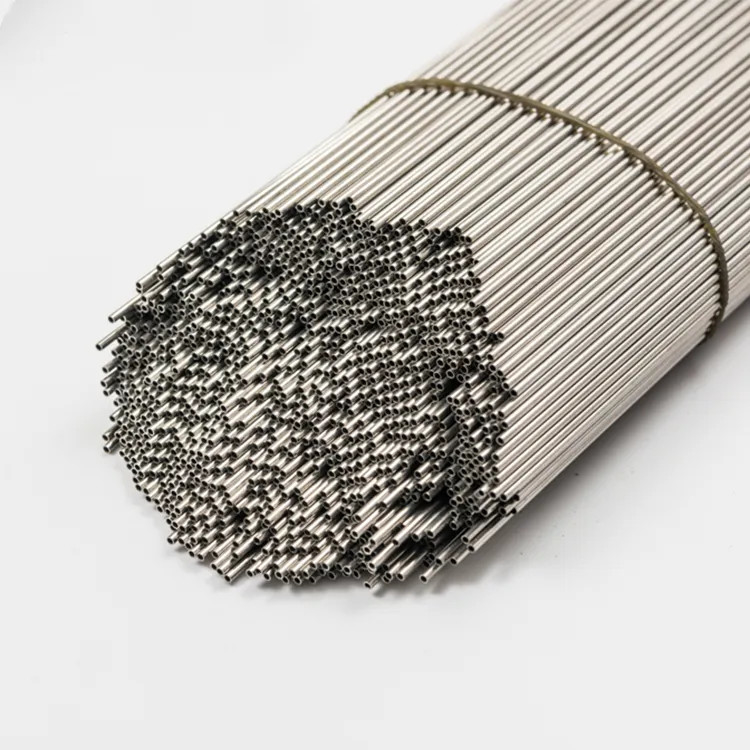

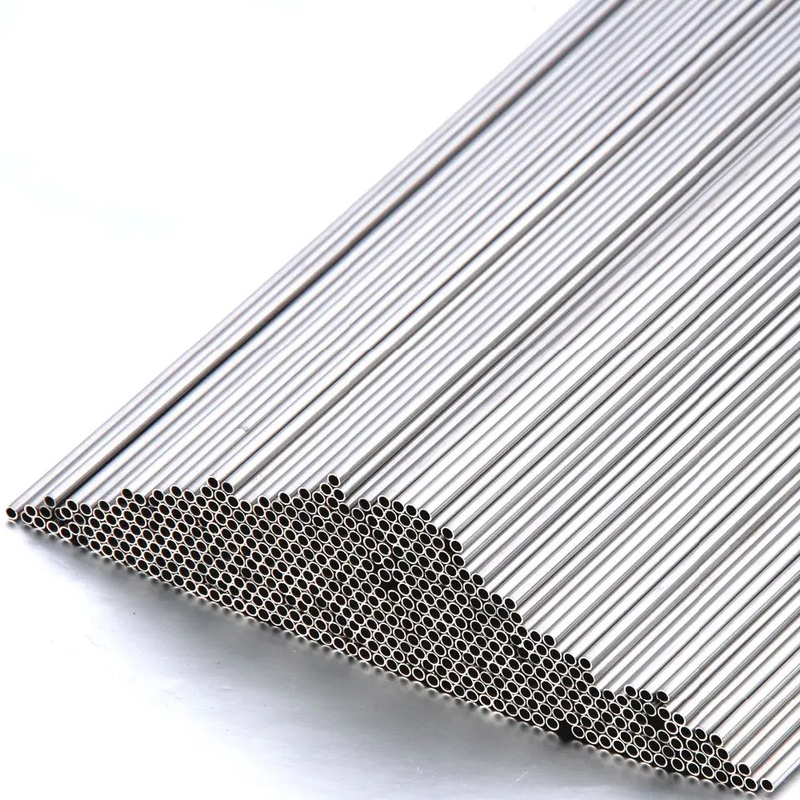

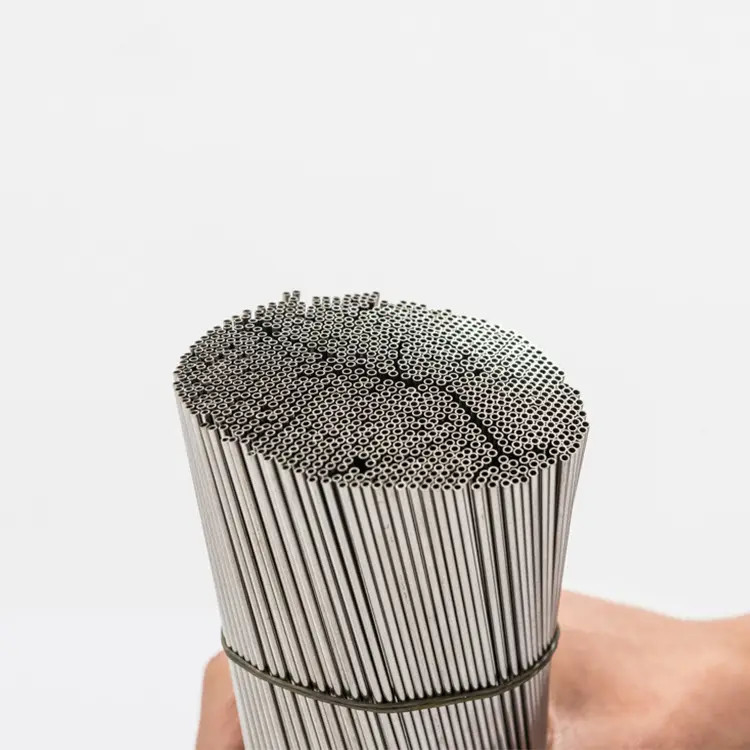

Gambar produk
Proses produksi pipa las baja tahan karat:
Bahan baku - silting - pipa las - trimming - polishing - inspeksi (pencetakan semprotan) - kemasan - pengiriman (lager) (pipa las dekoratif). Raw material - Slitting - Welding pipe Heat treatment - Correction - Straightening - End trimming - Pickling - Water pressure test - Inspection (printing) - Packaging - Shipping (warehouse) (Pipe for industrial piping of welded pipe).

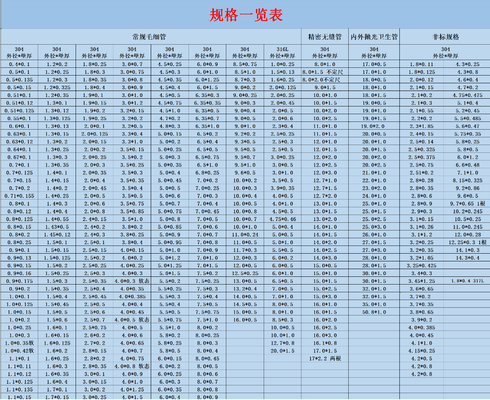

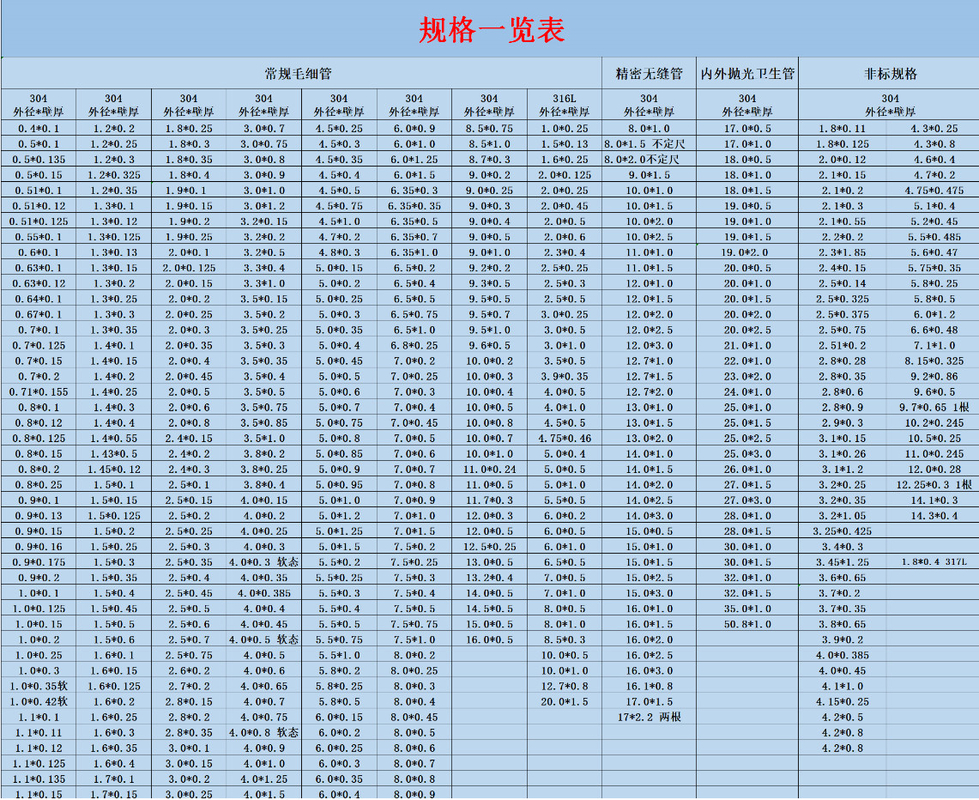

Ukuran reguler yang bisa kami sediakan
Sertifikat
Pujian pelanggan
