Bright Annealed 304 Stainless Steel Tube Cold Drawn Capillary Tubing Untuk Medis
Properti Dasar
Tempat Asal:
Zhejiang, Tiongkok
Nama merek:
TORICH
Sertifikasi:
ISO9001,ISO14001,TS16949
Nomor Model:
ASTM A213/ASTM A269/ASTM A249
Properti Perdagangan
Jumlah Pesanan Minimum:
1kg
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Kemampuan Penyediaan:
20.000 ton per tahun
Ringkasan Produk
304 Stainless Steel Tubing Kapiler TORICH adalah pemasok pipa baja profesional dari Cina dengan pengalaman lebih dari 23 tahun. Kami memiliki kualitas bagus dariKapiler Tubing, telah mengekspor 304 kapiler stainless steel ke India,UAE,Australia,Poland, dll Standar: Kelas baja: Ukuran:OD 0,28-10mm WT ...
Rincian produk
Menyoroti:
Tabung Stainless Steel Medis 304
,Tabung Kapiler Anil Terang
,Tabung Kapiler Dingin
Product Name:
Tabung Kapiler Presisi Stainless Steel Diameter Super Kecil
Keyword:
pipa kapiler
Material:
201.304.310.316, dst
Usage:
Aplikasi medis
Shape:
Membentuk
Technique:
Ditarik Dingin
Surface:
Disesuaikan
Length:
maks12000mm
OD:
0,28-10mm
WT:
0,08-1mm
Deskripsi Produk
304 Stainless Steel Tubing Kapiler
TORICH adalah pemasok pipa baja profesional dari Cina dengan pengalaman lebih dari 23 tahun.
Kami memiliki kualitas bagus dariKapiler Tubing, telah mengekspor 304 kapiler stainless steel ke India,UAE,Australia,Poland, dll
Standar:
Kelas baja:
Ukuran:OD 0,28-10mm WT 0,08-1mm
Proses Produksi:Cold Drawing Bright Anneal dll
Jenis:Tanpa jahitan, las
Permukaan:Pucling, Bright
| 201 | 202 | 304 | 316 | S31803 | S32750 | ||
| Komposisi Kimia ((%) | C | ≤ 0.15 | ≤ 0.15 | ≤ 0.08 | ≤ 0.08 | ≤ 0.030 | ≤ 0.030 |
| Ya. | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 0.80 | |
| Mn | 5.5-7.5 | 7.5-10.0 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 1.20 | |
| P | ≤ 0.060 | ≤ 0.060 | ≤ 0.045 | ≤ 0.045 | ≤ 0.030 | ≤ 0.035 | |
| S | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.020 | ≤ 0.020 | |
| Cr | 16-18 | 17-19 | 18-20 | 16-18 | 21-23 | 21-23 | |
| Tidak | 3.5-5.5 | 4.0-6.0 | 8.0-10.5 | 16.0-18.5 | 4.5-6.5 | 6.0-8.0 | |
| Mo |
|
|
| 2.0-3.0 | 2.5-3.5 | 3.0-5.0 | |
| N | ≤ 0.25 | ≤ 0.25 |
|
| 0.08-0.2 | 0.24-0.32 | |
| Cu |
|
|
|
|
| ≤ 0.50 | |
| Sifat Mekanis | Kekuatan tarik ((MPa) | ≥ 655 | ≥ 620 | ≥515 | ≥515 | ≥ 620 | ≥ 800 |
| Kekuatan Pemanfaatan ((MPa) | ≥260 | ≥310 | ≥205 | ≥205 | ≥ 450 | ≥ 550 | |
| Perpanjangan ((%) | ≥ 35 | ≥ 35 | ≥ 35 | ≥ 35 | ≥ 25 | ≥ 15 | |
| Kekerasan ((HV) | ≤ 230 | ≤ 230 | ≤ 200 | ≤ 200 | ≤ 303 | ≤323 | |
|
Aplikasi
| Arsitek/Teknisi Sipil | Fittings pintu dan jendela, furnitur baja, bagian struktural dll. | ||
| Transportasi | Sistem knalpot, trim mobil, tanker jalan, kontainer kapal, kapal tanker kimia dll. | |||
| Kimia/Pharmaceutical | Kapal bertekanan, pipa proses dll. | |||
| Minyak & Gas | Akomodasi platform, tray kabel, pipa bawah laut dll. | |||
| Air | Pengolahan air dan limbah, pipa air, tangki air panas dll. | |||
| Medis | Instrumen bedah, implan bedah, pemindai MRI dll. | |||
| Makanan & Minuman | Peralatan katering, pembuatan bir, pengolahan makanan dll. | |||

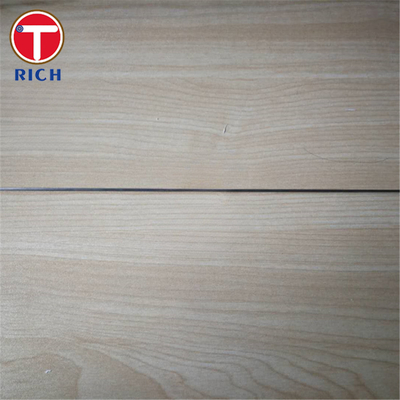

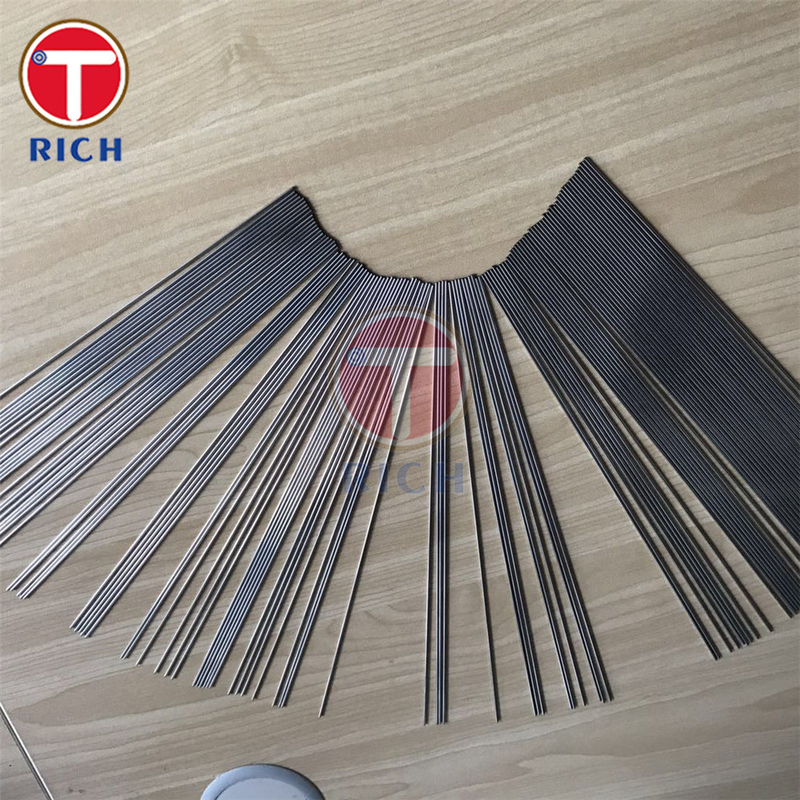

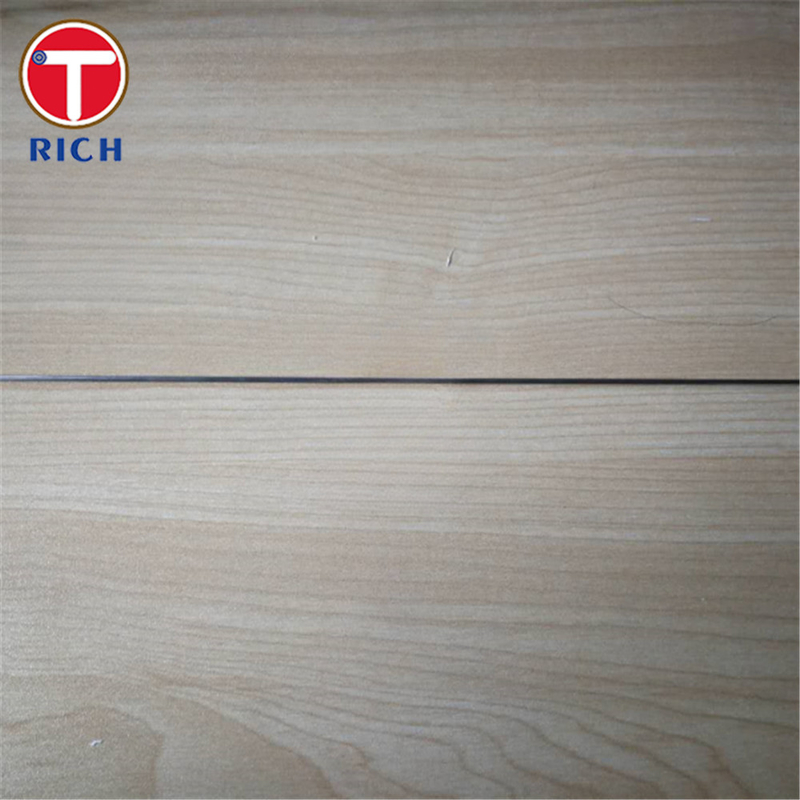

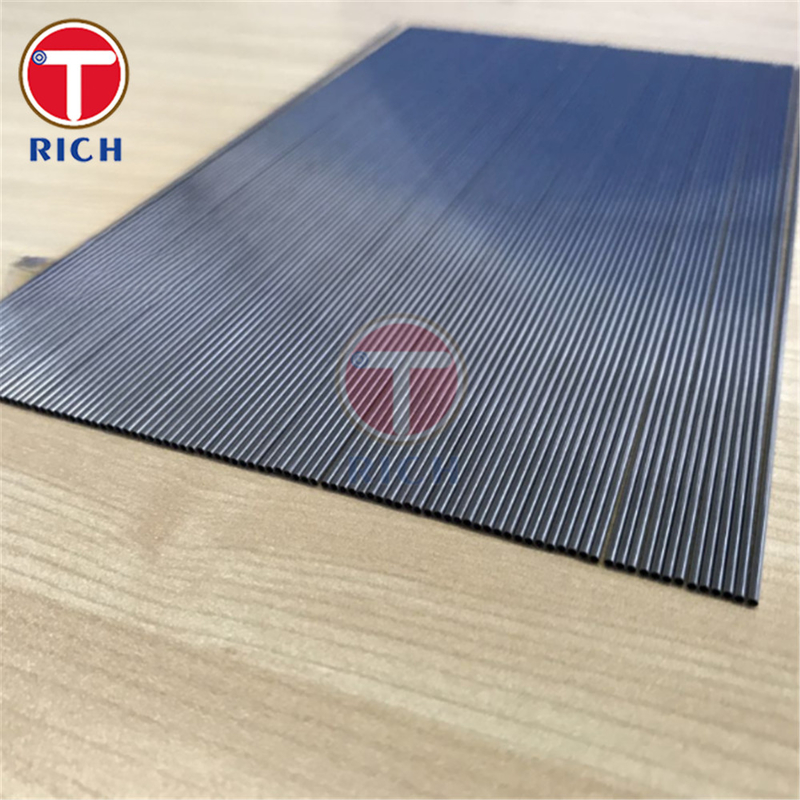

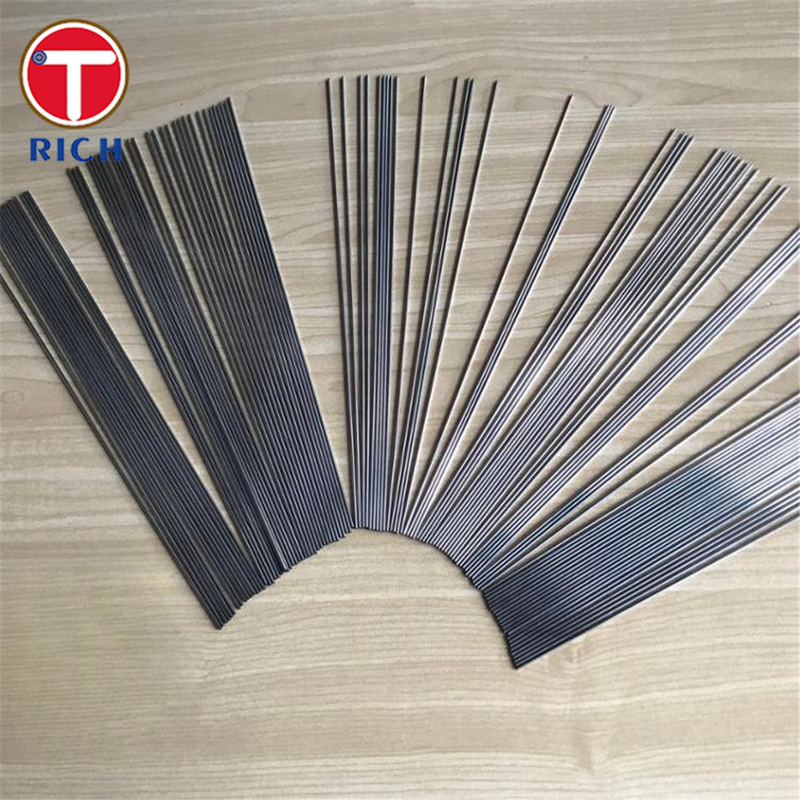

Gambar produk
Ukuran reguler yang bisa kami sediakan
Sertifikat
Pujian pelanggan

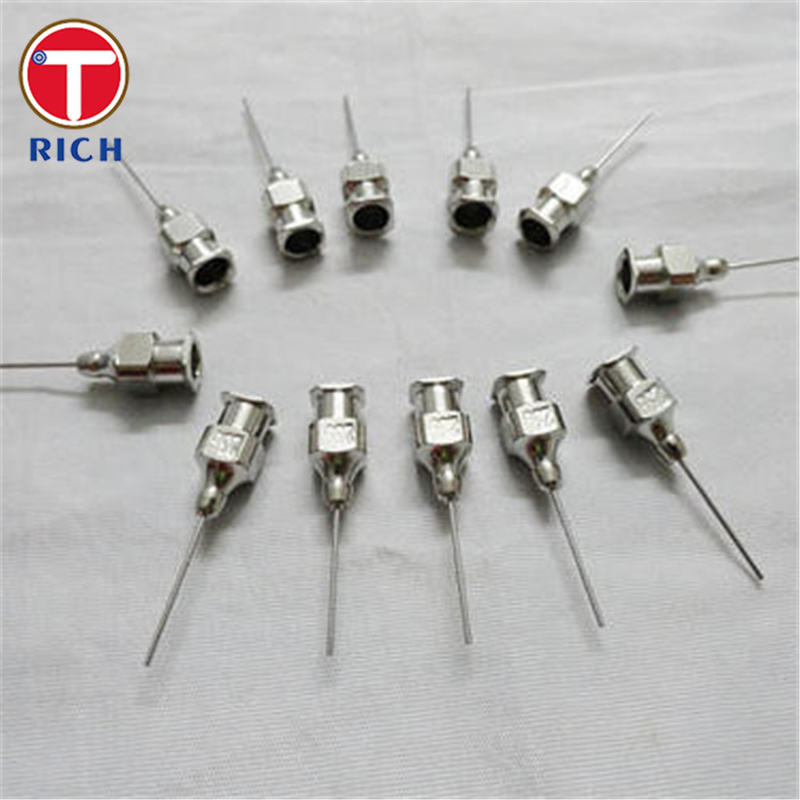

1.0*0.1 dan 0.8*0.1 Tabung Kapiler Diameter Super Kecil untuk Tujuan Medis
