Tabung Baja Seamless Baja Dingin, Tabung Mekanik Baja Karbon dan Baja Paduan
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO9001:2008, ISO14001:2008, TS16949
Nomor Model:
ASTM A519
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, T/T
Kemampuan Penyediaan:
2000 ton per bulan
Ringkasan Produk
Tubing mekanik tanpa jahitan yang ditarik dingin dari baja karbon dan paduan dengan kualitas baja karbon dan paduan Tubing Mekanis Karbon dan Baja Legasi Tanpa Jahit yang Ditarik Dingin Rentang ukuran: O.D.:6-450mm W.T.:1-50mm L:max12000mm Kelas: 1010,1020,4130,4140,25CrMo, 30CrMo, 34CrMo4 Kelas ...
Rincian produk
Menyoroti:
ditarik tabung mulus dingin
,dingin ditarik tabung
Material:
Karbon dan Alloy Steel
Grade:
1010,1020,4130,4140,25CrMo, 30CrMo, 34CrMo4
Type:
Mulus
Production:
Dingin ditarik
Deskripsi Produk

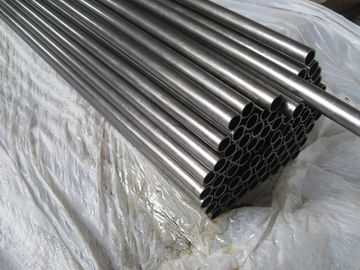

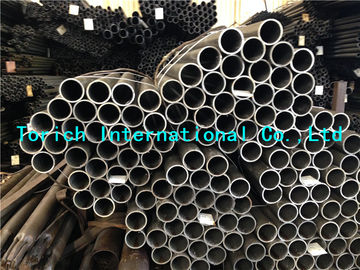

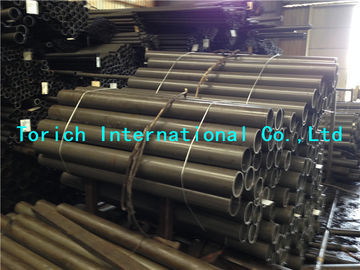

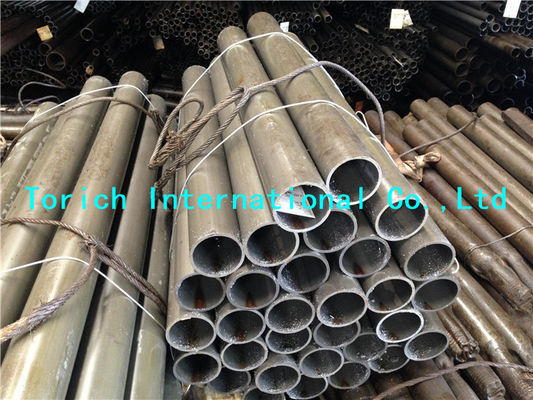

Tubing mekanik tanpa jahitan yang ditarik dingin dari baja karbon dan paduan dengan kualitas baja karbon dan paduan
Tubing Mekanis Karbon dan Baja Legasi Tanpa Jahit yang Ditarik Dingin
Rentang ukuran: O.D.:6-450mm W.T.:1-50mm L:max12000mm
Kelas:
1010,1020,4130,4140,25CrMo, 30CrMo, 34CrMo4
| Kelas baja dan komposisi kimia: | |||||||
| Baja | C | Mn | P | S | Ya. | Cr | Mo |
| Kelas | maksimal | maksimal | maksimal | maksimal | menit | ||
| 1008 | 0.10 | 0.30-0.50 | 0.040 | 0.050 | |||
| 1010 | 0.08-0.13 | 0.30-0.60 | 0.040 | 0.050 | |||
| 1018 | 0.15-0.20 | 0.60-0.90 | 0.040 | 0.050 | |||
| 1020 | 0.18-0.23 | 0.30-0.60 | 0.040 | 0.050 | |||
| 1026 | 0.22-0.28 | 0.60-0.90 | 0.040 | 0.050 | |||
| 1035 | 0.32-0.38 | 0.60-0.90 | 0.040 | 0.050 | |||
| 1045 | 0.43-0.50 | 0.60-0.90 | 0.040 | 0.050 | |||
| 4130 | 0.28-0.33 | 0.40-0.60 | 0.040 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| 4140 | 0.38-0.43 | 0.75-1.00 | 0.040 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| Kelas | kondisi | Ultimat | Hasil | Perpanjangan | Rockwell |
| Kekuatan | Kekuatan | Kekerasan | |||
| Ksi Mpa | Ksi Mpa | % | Skala B | ||
| 1020 | HR | 50 345 | 32 221 | 25 | 55 |
| CW | 70 483 | 60 414 | 5 | 75 | |
| SR | 65 448 | 50 345 | 10 | 72 | |
| A | 48 331 | 28 193 | 30 | 50 | |
| N | 55 379 | 34 234 | 22 | 60 | |
| 1035 | HR | 65 448 | 40 276 | 20 | 72 |
| CW | 85 586 | 75 517 | 5 | 88 | |
| SR | 75 517 | 65 448 | 8 | 80 | |
| A | 60 414 | 33 228 | 25 | 67 | |
| N | 65 448 | 40 276 | 20 | 72 | |
| 1045 | HR | 75 517 | 45 310 | 15 | 80 |
| CW | 90 621 | 80 552 | 5 | 90 | |
| SR | 80 552 | 70 483 | 8 | 85 | |
| A | 65 448 | 35 241 | 20 | 72 | |
| N | 75 517 | 48 331 | 15 | 80 | |
| 4130 | HR | 90 621 | 70 483 | 20 | 89 |
| SR | 105 724 | 85 586 | 10 | 95 | |
| A | 75 517 | 55 379 | 30 | 81 | |
| N | 90 621 | 60 414 | 20 | 89 | |
| 4140 | HR | 120 855 | 90 310 | 15 | 100 |
| SR | 120 855 | 100 689 | 10 | 100 | |
| A | 80 552 | 60 414 | 25 | 85 | |
| N | 120 855 | 90 621 | 20 | 100 |
Aplikasi:untuk mesin, insinyur mekanik
