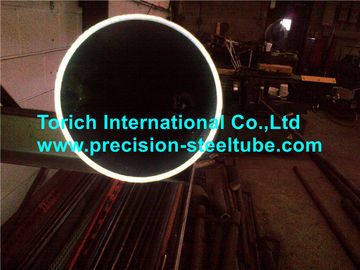

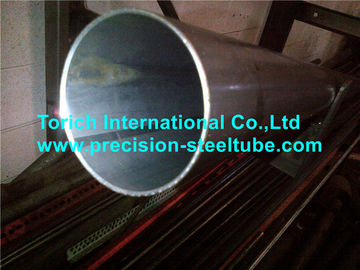

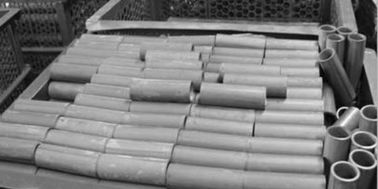

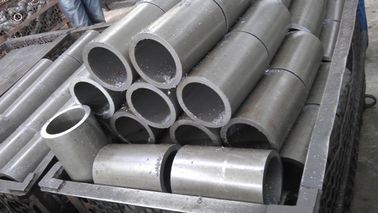

Tabung baja las tahan listrik, tabung baja ERW / DOM 50mm
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO 14001 ISO 9001-2008 TS 16949 ABS DNV
Nomor Model:
ASTM A513
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
600-1200USD per ton
Kemampuan Penyediaan:
60000 ton per tahun
Ringkasan Produk
ASTM A513 Saluran mekanik tahan listrik las karbon dan baja paduan Aplikasi:untuk Mesin, Insinyur Mesin, Bagian Otomotif, Industri Otomotif Jangkauan ukuran: O.D.:6-350mm W.T.:1-12.5mm L:max12000mm Produksi:ERW + DOM Kelas baja dan komposisi kimia: Kelas baja C Mn P S Ya. Cr Mo maksimal maksimal ...
Rincian produk
Menyoroti:
pengelasan pipa baja
,Listrik perlawanan dilas tabung baja
Material:
Karbon dan Alloy Steel
Steel Grade:
1008 1010 1020 1026 dll
Standard:
ASTM A513
Applications:
Untuk Mesin, Teknisi Mekanik, Suku Cadang Otomotif
Production Method:
Perlawanan Listrik Dilas & DOM
Shape:
Bulat
Characteristic:
Tabung Mekanis, Tabung Presisi
Deskripsi Produk
ASTM A513 Saluran mekanik tahan listrik las karbon dan baja paduan
Aplikasi:untuk Mesin, Insinyur Mesin, Bagian Otomotif, Industri Otomotif
Jangkauan ukuran: O.D.:6-350mm W.T.:1-12.5mm L:max12000mm
Produksi:ERW + DOM
| Kelas baja dan komposisi kimia: | |||||||
| Kelas baja | C | Mn | P | S | Ya. | Cr | Mo |
| maksimal | maksimal | maksimal | maksimal | menit | |||
| 1008 | 0.10 | 0.5 | 0.035 | 0.035 | |||
| 1010 | 0.08-0.13 | 0.30-0.60 | 0.035 | 0.035 | |||
| 1018 | 0.14-0.20 | 0.30-0.60 | 0.035 | 0.035 | |||
| 1020 | 0.17-0.23 | 0.30-0.60 | 0.035 | 0.035 | |||
| 1026 | 0.22-0.28 | 0.60-0.90 | 0.035 | 0.035 | |||
| 1035 | 0.31-0.38 | 0.60-0.90 | 0.035 | 0.035 | |||
| 4130 | 0.28-0.33 | 0.40-0.60 | 0.035 | 0.035 | 0.15-0.35 | 0.80-1.10 | 0.08-0.25 |
| 4140 | 0.38-0.43 | 0.75-1.00 | 0.035 | 0.035 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| Kelas baja | Hasil | Ulitmate | Perpanjangan | RB | RB |
| Kekuatan | Kekuatan | % | menit | maksimal | |
| Ksi Mpa | Ksi Mpa | ||||
| Tabung yang dilas | |||||
| 1008 | 30 207 | 42 290 | 15 | 50 | |
| 1010 | 32 221 | 45 310 | 15 | 55 | |
| 1020 | 38 262 | 52 359 | 12 | 62 | |
| 1026 | 45 310 | 62 427 | 12 | 68 | |
| 1035 | 50 345 | 66 455 | 10 | 75 | |
| 4130 | 55 379 | 72 496 | 10 | 80 | |
| 4140 | 70 485 | 90 621 | 10 | 85 |
| Kelas baja | Hasil | Ulitmate | Perpanjangan | RB | RB |
| Kekuatan | Kekuatan | % | menit | maksimal | |
| Ksi Mpa | Ksi Mpa | ||||
| Tabung yang ditarik dari wastafel | |||||
| 1008 | 38 262 | 48 331 | 8 | 65 | |
| 1010 | 40 276 | 50 345 | 8 | 65 | |
| 1020 | 50 345 | 60 414 | 8 | 70 | |
| 1026 | 55 379 | 70 483 | 7 | 77 | |
| 1035 | 70 483 | 80 552 | 7 | 82 | |
| 4130 | 50 345 | 70 483 | 20 | 100 | |
| 4140 | 65 448 | 90 621 | 20 | 105 |
| Kelas baja | Hasil | Ulitmate | Perpanjangan | RB | RB |
| Kekuatan | Kekuatan | % | menit | maksimal | |
| Ksi Mpa | Ksi Mpa | ||||
| Menormalkan Tubing | |||||
| 1008 | 23 159 | 38 262 | 30 | 65 | |
| 1010 | 25 172 | 40 276 | 30 | 65 | |
| 1020 | 35 207 | 50 345 | 25 | 75 | |
| 1026 | 40 276 | 60 414 | 25 | 80 | |
| 1035 | 45 310 | 65 448 | 20 | 85 |
| Kelas baja | Hasil | Ulitmate | Perpanjangan | RB | RB |
| Kekuatan | Kekuatan | % | menit | maksimal | |
| Ksi Mpa | Ksi Mpa | ||||
| Tabung yang ditarik dengan mandrel | |||||
| 1008 | 50 345 | 60 414 | 5 | 73 | |
| 1010 | 50 345 | 60 414 | 5 | 73 | |
| 1020 | 60 414 | 70 483 | 5 | 80 | |
| 1026 | 70 483 | 80 552 | 5 | 85 | |
| 1035 | 80 552 | 90 621 | 5 | 90 | |
| 4130 | 85 586 | 95 655 | 5 | 90 | |
| 4140 | 100 690 | 110 758 | 5 | 90 |
| Kelas baja | Hasil | Ulitmate | Perpanjangan | RB | RB |
| Kekuatan | Kekuatan | % | menit | maksimal | |
| Ksi Mpa | Ksi Mpa | ||||
| Tabung yang Dibangkitkan dengan Mandrel | |||||
| 1008 | 45 310 | 55 379 | 12 | 68 | |
| 1010 | 45 310 | 55 379 | 12 | 68 | |
| 1020 | 55 379 | 65 448 | 10 | 75 | |
| 1026 | 65 448 | 75 517 | 10 | 80 | |
| 1035 | 75 517 | 85 586 | 10 | 85 | |
| 4130 | 80 552 | 90 621 | 10 | 87 | |
| 4140 | 95 655 | 105 724 | 10 | 90 |
