Dingin ditarik tabung baja mulus GOST9567 10, 20, 35, 45, 40x
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
TS16949 , KR , RINA , DNV , GL , PED
Nomor Model:
GOST 9567
Properti Perdagangan
Jumlah Pesanan Minimum:
5MT
Harga:
USD 600-900
Kemampuan Penyediaan:
6000MT/Month
Ringkasan Produk
Tabung baja tanpa jahitan presisi yang ditarik dingin GOST9567 10, 20, 35, 45, 40x GOST9567 Tabung baja presisi Precision Seamless Steel PipeJangkauan ukuran: O.D.:6-168mm W.T.:1-15mm L:max12000mm Tabung Baja Tembaga PrecisionAplikasi: Mobil, Teknik Mesin, Bagian mobil dll. Komposisi kimia ((%, ...
Rincian produk
Menyoroti:
Pipa seamless presisi
,precision pipes and tubes
Dimension::
6-168mm * 1-15mm * 12000mm
Application::
Otomotif, teknik mesin, suku cadang mobil dll.
Grade::
10 , 20 , 35 , 45 , 40x
Section Shape::
Bulat
Deskripsi Produk
Tabung baja tanpa jahitan presisi yang ditarik dingin
GOST9567 10, 20, 35, 45, 40x
GOST9567 Tabung baja presisi
Precision Seamless Steel PipeJangkauan ukuran:
O.D.:6-168mm W.T.:1-15mm L:max12000mm
Tabung Baja Tembaga PrecisionAplikasi:
Mobil,
Teknik Mesin,
Bagian mobil dll.
Komposisi kimia ((%, maksimum)
| Kelas baja | C | Ya. | Mn | Cr | Tidak | Mo | S | P | Cu |
| 10 | 0.07-0.14 | 0.17-0.37 | 0.35-0.65 | 0.15 | 0.3 | - | - | - | - |
| 20 | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | 0.25 | 0.25 | - | 0.03 | 0.025 | 0.3 |
| 35 | 0.32-0.40 | 0.17-0.37 | 0.50-0.80 | 0.25 | 0.3 | - | 0.04 | 0.035 | 0.3 |
| 45 | 0.42--0.45 | 0.17-0.37 | 0.50-0.80 | 0.25 | - | - | - | - | - |
| 40X | 0.36-0.44 | 0.17-0.37 | 0.50-0.80 | 0.80-1.10 | 0.3 | - | 0.035 | 0.035 | 0.3 |
| 30XHSA | 0.28-0.34 | 0.90-1.20 | 0.80-1.10 | 0.80-1.10 | 0.3 | - | 0.005 | 0.025 | - |
Komposisi mekanik:
| Besi kelas | Kekuatan tarik N/mm2 (min) | Kekuatan output, N/mm 2 (min) | Perpanjangan, % ((menit) |
| 10 | 343 | 206 | 24 |
| 20 | 412 | 245 | 21 |
| 35 | 510 | 294 | 17 |
| 45 | 589 | 323 | 14 |
| 40X | 618 | - | 14 |
| 30XHSA | 491 | - | 18 |

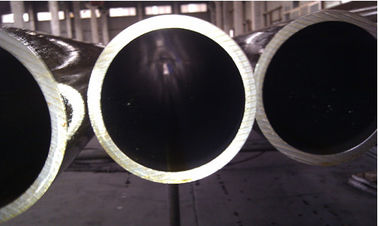

Tabung presisi baja karbon di bawah inspeksi ukuran, inspeksi permukaan dan pengemasan:

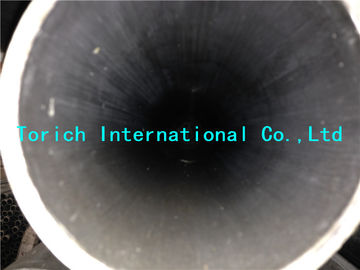

Pipa baja tanpa jahitan presisi tinggi dengan toleransi ID yang sangat tinggi dan kelancaran ID:
Kemasan dan Pengiriman untuktabung baja tanpa jahitan presisi:
