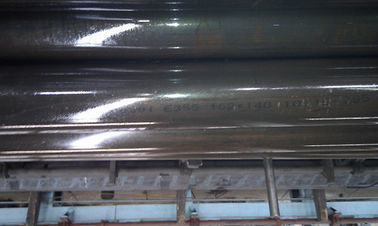

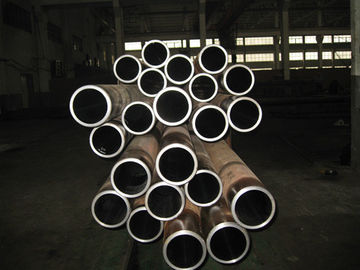

Round Carbon Precision Steel Tube, Tabung Gas Cylinder Dengan ISO 9001-2008
Rincian produk
Presisi pipa baja
,Pipa seamless presisi
Tabung baja presisi EN10305-1 Tabung Silinder Gas Kelas E355 E235
Standar: EN10305-1 Tabung baja yang ditarik dingin/digulung tanpa jahitan
Tabung baja untuk aplikasi presisi.
Aplikasi: untuk Aplikasi Silinder Gas, Silinder Minyak/silinder Teleskop
Jangkauan Ukuran: O.D.:6-380mm W.T.:1-35mm L:max12000mm
Kelas baja: E235, E355, E215 dll
Kelas baja dan komposisi kimia:
| Kelas baja | C | Ya. | Mn | P | S | Al | |
| Nama baja | Nomor baja | maksimal | maksimal | maksimal | maksimal | maksimal | menit |
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 | - |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 | - |
| Sifat mekanik pada suhu kamar | |||||||||||||
| Kelas baja | Nilai minimum untuk kondisi pengiriman | ||||||||||||
| Nama baja | Aluminium Nubmer | (+Cc) | (+LCc) | (+SR) | (+Ad) | (+N) NBK | |||||||
| Rm Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | ||
| E215 | 1.0212 | 430 | 8 | 380 | 12 | 380 | 280 | 16 | 280 | 30 | 290-430 | 215 | 30 |
| E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340-480 | 235 | 25 |
| E355 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450f | 10 | 450 | 22 | 490-630 | 355 | 22 |
Catatan:Kelas baja khusus juga tersedia, sesuai permintaan pelanggan.
aRm: kekuatan tarik; ReH: kekuatan hasil atas; A: perpanjangan setelah patah
b 1Mpa = 1N/mm2
c Tergantung pada tingkat kerja dingin dalam melewati finishing kekuatan hasil mungkin hampir setinggi kekuatan tarik.
Untuk tujuan perhitungan, hubungan berikut direkomendasikan:
untuk kondisi pengiriman +C: ReH ≥0,8 Rm
untuk kondisi pengiriman +LC: ReH ≥0,7 Rm
d Untuk tujuan perhitungan, relasi berikut dianjurkan:ReH≥0,5Rm
e Untuk tabung dengan diameter luar ≤30mm dan ketebalan dinding ≤3mm, nilai minimal ReH adalah 10Mpa lebih rendah dari nilai yang diberikan dalam tabel ini
f Untuk tabung dengan diameter luar > 160 mm: ReH≥420Mpa
-
