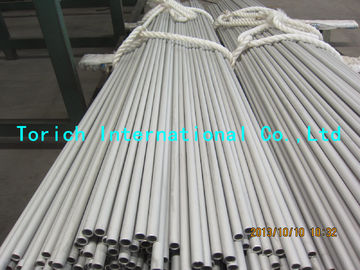

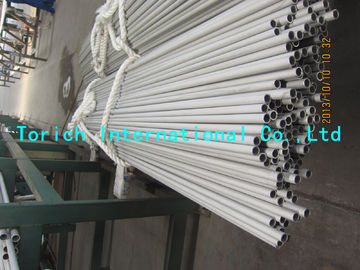

A511 / A511M MT 304, MT304L, MT309, MT309S Tabung Mekanik Stainless Steel Mulus
Rincian produk
stainless tube steel
,diameter besar tabung baja stainless
Aplikasi:
Aplikasi mekanis, yang membutuhkan kekuatan tahan korosi atau suhu tinggi.
Bentuk:
Round, Rectangle, Square, atau khusus
Kelas:
MT 304, MT304L,
MT309, MT309S,
MT 310S,
MT 316, MT316L,
MT317, MT321, MT347
TABEL 1 Persyaratan Kimia Baja Tahan Karat Austenitik
Kelas | Komposisi,% | ||||||
Karbon | Mangan-ese, maks | Fosfor, maks | Belerang, maks | Silicon, maks | Nikel | Chromium | |
MT302 | 0,08 hingga 0,20 | 2,00 | 0,040 | 0,030 | 1,00 | 8.0-10.0 | 17.0-19.0 |
MT304 | 0,08max | 2,00 | 0,040 | 0,030 | 1,00 | 8.0-11.0 | 18.0-20.0 |
MT304L | 0,035maks4 | 2,00 | 0,040 | 0,030 | 1,00 | 8.0-13.0 | 18.0-20.0 |
MT310S | 0,08max | 2,00 | 0,040 | 0,030 | 1,00 | 19.0-22.0 | 24.0-26.0 |
TABEL 2 Persyaratan Kimia Baja Stainless Feritik dan Martensit
Kelas | Komposisi,% | ||||||
Karbon | Mangan-ese, maks | Fosfor, maks | Belerang, maks | Silicon, maks | Nikel | Chromium | |
Martensitik | |||||||
MT410 | 0,15 | 1,00 | 0,040 | 0,030 | 1,00 | 0,50max | 11.5-13.5 |
MT416Se | 0,15 | 1.25 | 0,060 | 0,060 | 1,00 | 0,50max | 12.0-14.0 |
MT413 | 0,20 | 1,00 | 0,040 | 0,030 | 1,00 | 1.25-2.50 | 15.0-17.0 |
Feritik | |||||||
MT405 | 0,08 | 1,00 | 0,040 | 0,030 | 1,00 | 0,50max | 11.5-14.5 |
MT429 | 0,12 | 1,00 | 0,040 | 0,030 | 1,00 | 0,50max | 14.0-16.0 |
MT443 | 0,20 | 1,00 | 0,040 | 0,030 | 1,00 | 0,50max | 18.0-23.0 |
Dokumen referensi:
Standar ASTM:
Metode Tes ASTM A370 dan Definisi untuk Pengujian Mekanis Produk Baja
Spesifikasi ASTM A1016 / A 1016M untuk Persyaratan Umum untuk Baja Paduan Feritik, Austenitik
Baja Paduan, dan Tabung Stainless Steel
ASTM E59 Praktek untuk Pengambilan Sampel Baja dan Besi untuk Penentuan Komposisi Kimia
-
