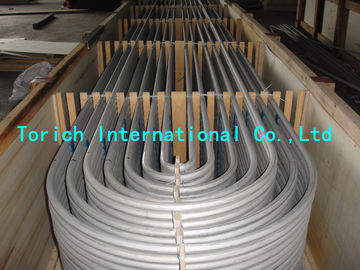

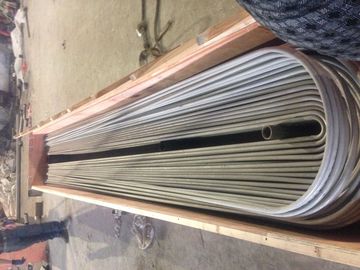

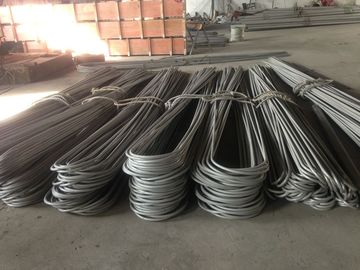

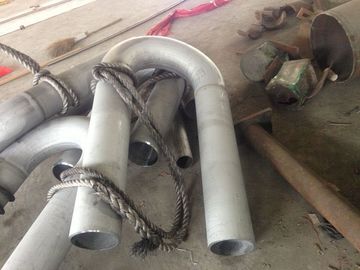

Hot / Cold Selesai Tabung U Bend, JIS G 3463 Bending 316 Stainless Steel Pipe
Rincian produk
bend steel tubing
,bending steel pipe
JIS G 3463 Baja tahan karat austenit untuk pipa boiler dan penukar panas
Tabung baja tanpa jahitan untuk tujuan tekanan
Aplikasi:untuk boiler dan tabung penukar panas
Dimensi: 5-420mm * 0,5-50mm
Kondisi pengiriman: Hot selesai dingin selesai
Berkualitas baja 304 316 317 347
Kekerasan: HRB 90max
| Kelas baja dan komposisi kimia | ||||||||||
| Kelas Segel | Kelas | C | Ya. | Mn | P | S | Tidak | Cr | Mo | dll |
| SUS 304TB | Austenit | 0.08max | 1.00max | 2.00max | 0.040max | 0.030max | 8.00-11.00 | 18.00-20.00 | - | - |
| SUS 304HTB | 0.04-0.10 | 0.75max | 2.00max | 0.040max | 0.030max | 8.00-11.00 | 18.00-20.00 | - | - | |
| SUS 304LTB | 0.030max | 1.00max | 2.00max | 0.040max | 0.030max | 9.00-13.00 | 18.00-20.00 | - | - | |
| SUS310TB | 0.15max | 1.50max | 2.00max | 0.040max | 0.030max | 19.00-22.00 | 24.00-26.00 | - | - | |
| SUS310STB | 0.08max | 1.50max | 2.00max | 0.040max | 0.030max | 19.00-22.00 | 24.00-26.00 | - |
| |
| SUS 316TB | 0.08max | 1.00max | 2.00max | 0.040max | 0.030max | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | - | |
| SUS 316HTB | 0.40-0.10 | 0.75max | 2.00max | 0.030max | 0.030max | 11.00-14.00 | 16.00-18.00 | 2.00-3.00 | - | |
| SUS316LTB | 0.030max | 1.00max | 2.00max | 0.040max | 0.030max | 12.00-16.00 | 16.00-18.00 | 2.00-3.00 | - | |
| SUS316TiTB | 0.080max | 1.00max | 2.00max | 0.040max | 0.030max | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | Ti:5*C %max | |
| SUS317TB | 0.080max | 1.00max | 2.00max | 0.040max | 0.030max | 11.00-15.00 | 18.00-20.00 | 3.00-4.00 | - | |
| SUS317LTB | 0.030max | 1.00max | 2.00max | 0.040max | 0.030max | 11.00-15.00 | 18.00-20.00 | 3.00-4.00 | - | |
| SUS347TB | 0.080max | 1.00max | 2.00max | 0.040max | 0.030max | 9.00-13.00 | 17.00-19.00 | - | Nb:10*C %max | |
| SUS347HTB | 0.40-0.10 | 1.00max | 2.00max | 0.030max | 0.030max | 9.00-13.00 | 17.00-20.00 | - | Nb:8*C %-1.00 | |
| Kelas Baja dan Sifat Mekanisnya | |||||
| Kelas Segel | Tensile trength | Bentuk bukti | Elongasi % | ||
| OD<10 mm | OD≥10mm OD<20 mm | OD ≥20mm | |||
| No.11 bagian uji | No.11 bagian uji | No.11 bagian uji | |||
| SUS 304TB | 520 | 205 | 27 | 30 | 35 |
| SUS 304HTB | 520 | 205 | 27 | 30 | 35 |
| SUS 304LTB | 480 | 175 | 27 | 30 | 35 |
| SUS310TB | 520 | 205 | 27 | 30 | 35 |
| SUS310STB | 520 | 205 | 27 | 30 | 35 |
| SUS 316TB | 520 | 205 | 27 | 30 | 35 |
| SUS 316HTB | 520 | 205 | 27 | 30 | 35 |
| SUS316LTB | 480 | 175 | 27 | 30 | 35 |
| SUS316TiTB | 520 | 205 | 27 | 30 | 35 |
| SUS317TB | 520 | 205 | 27 | 30 | 35 |
| SUS317LTB | 480 | 175 | 27 | 30 | 35 |
| SUS347TB | 520 | 205 | 27 | 30 | 35 |
| SUS347HTB | 520 | 205 | 27 | 30 | 35 |
-
