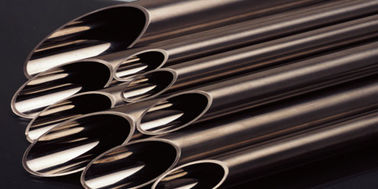

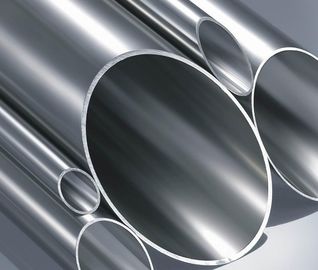

ISO 2037 Tabung Stainless Steel Austenitic Tekanan Tinggi Dengan Diameter Kecil
Rincian produk
stainless steel putaran tabung
,stainless tube steel
ISO 2037 Tabung baja tahan karat untuk industri makanan
Aplikasi:Dalam industri makanan
Bahan:
Baja tahan karat austenit harus digunakan.
- Tabung tanpa jahitan: TS47, TS60 dan TS61 sesuai dengan ISO 2604-6:1978
- Tabung las: TW 47, TW 60 dan TW61 sesuai dengan ISO 2604-4:1978
Keropos permukaan:
Keruwetan permukaan sesuai dengan spesifikasi ISO 468
Fasilitas permukaan halus Ra ≤ 1 μm
Penutup permukaan lainnya Ra≤ 2,5 μm
Tabel 1 Dimensi dalam milimeter
| Diameter luar tabung | Ketebalan |
| 12 12.7 17.3 21.3 | 1 1 1 1 |
| 25 33.7 38 | 1.21 1.6 1.21 1.6 1.21 1.6 |
| 40 51 63.5 | 1.21 1.6 1.21 1.6 1.6 |
| 70 76.1 88.9 | 1.6 1.6 2 |
| 101.6 114.3 139.7 | 2 2 2 |
| 168.3 219.1 273 | 2.6 2.6 2.6 |
| 323.9 355.6 406.4 | 2.6 2.6 3.2 |
Bibliografi:
ISO 1127:1992 Tabung baja tahan karat - Dimensi, toleransi dan massa konvensional per panjang satuan
ISO 2604-2:1975 Produk tahan karat untuk tujuan tekanan - Persyaratan kualitas - Bagian 2: Tabung tanpa jahitan yang diukir
ISO 2604-5:1987Produk baja untuk tujuan tekanan - persyaratan kualitas Bagian 5: tabung stainless steel austenit yang dilas secara longitudinal
ISO 4200:1991Tabel umum ukuran dan massa per satuan panjang
-
