Tabung baja knalpot tabung baja tahan karat las SUS409L / SUS439L / SUS436L / SUS346S
Rincian produk
stainless steel putaran tabung
,stainless tube steel
Tabung baja knalpot tabung baja tahan karat las SUS409L, SUS439, SUS436L, SUS346S, SUS304 & SUS429M
Kelas:310 309 309L 301 304 409L 346 410 429 439 441 444 436 dll
Ketebalan dinding: 1.2,1.5mm atas permintaan.
Diameter:30-60 mm
Panjang: Atas permintaan

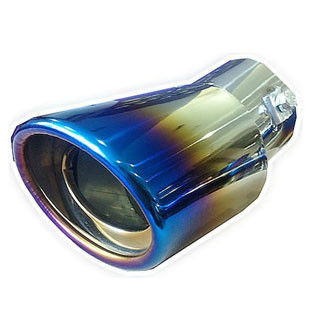

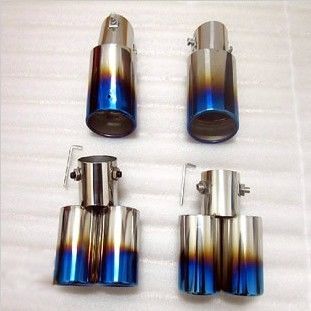

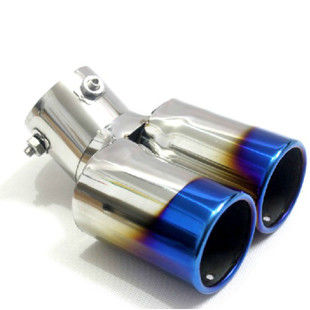

Aplikasi:untuk sistem knalpot otomotif knalpot Steel Tube ((muffler,tabung ekor,tabung cabang,katalisator)
Metode produksi: Seam longitudinal dilas
Tabung sesuai dengan ASTM 269 EN10217-7 EN10296-2.
| Dimensi mm | |
| OD | WT |
| 38 | 1 |
| 38 | 1.2 |
| 38 | 1.5 |
| 40 | 1 |
| 40 | 1.2 |
| 40 | 1.5 |
| 42 | 1.2 |
| 44.5 | 1.5 |
| 50 | 1.2 |
| 53 | 1.2 |
| 57.15 | 2 |
| 50.8 | 2 |
| 60 | 1.2 |
| 63.5 | 2 |
| 70 | 1.2 |
| 76.2 | 1.5 |
| 85 | 1.2 |
Catatan:Tidak semua ukuran Hanya FYI.
Baja knalpot409L Karakteristik material:
1: Harga rendah
2: Kinerja konduktivitas termal lebih baik dari austenit.
3: Koefisien ekspansi termal lebih kecil dari austenit, kelelahan termal.
4: Tambahkan titanium elemen stabilisasi, kinerja mekanik dari bagian-bagian yang baik, terutama digunakan untuk aliran knalpot mobil dari manifold knalpot, pencekam.
