Nikel - Chromium - Inconel Tube berbasis besi Inconel600 TS 640MPA High Plastisitas
Rincian produk

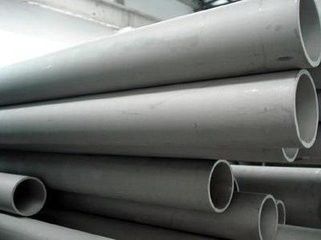

inconel 600 tube
,inconel 718 tube
Inconel Steel Tube dengan kelas baja paduan Inconel 600
peralatan.
Tabung InconelKarakteristik:paduan bertulang padat berbasis nikel-kromium-besi.
Korosi suhu tinggi yang baik
Ketahanan oksidasi
Pengolahan panas dan dingin yang sangat baik
Kinerja pengelasan
Pada 700 °C berikutnya ia memiliki ketahanan panas yang memuaskan dan plastisitas yang tinggi.
Tabung InconelPenggunaan di industri kimia,industri nuklir,terutama digunakan di lingkungan korosif
Komposisi kimia:
C: ≤ 0.15
Cr:14.0-17.0
Ni+Co:≥ 72
Al: ≤ 0.35
Ti: ≤ 0.50
Fe:6.00-10.00
Nb+Ta:≤1.00
Mn:1.00 maksimal
Si:0.50max
P:0.04max
S:0.015max
Cu:0.50max
Sifat fisik:
Konduktivitas termal:
| θ/°C | 20 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| λ/(W/(m·°C)) | 12.85 | 13.94 | 15.15 | 16.62 | 18.71 | 20.72 | 22.4 | 24.49 | 27 | 29.51 | 31.6 |
Sifat listrik resistivitas:
| θ/°C | 20 ¢ 200 | 20 ¢ 300 | 20 ¢ 400 | 20 ¢ 500 | 20 ¢ 600 | 20 ¢ 700 | 20 ¢ 800 | 20 ¢ 1 |
| α/10-6°C-1 | 12.35 | 12.75 | 13.1 | 13.55 | 14.5 | 15.15 | 15.7 | 16.2 |
Inconel 600 adalahstruktur kristal kubik berpusat wajah.
Sifat mekanik:
Kondisi:Menghancurkan.
YS:255Mpa
TS:640MPA
En:45%
Standar Relay:
ASTM B167Spesifikasi standar untuk paduan nikel-kromium-besi (UNS N06600, N06601, N06603, N06690, N06693, N06025, N06045, dan N06696), paduan nikel-kromium-kobalt-molibdenum (UNS N06617),dan Nickel-Iron-Chromium-Tungsten Alloy (UNS N06674) Pipa dan Tabung Tanpa Jajar
ASTM B516Spesifikasi standar untuk paduan nikel-kromium-besi las (UNS N06600, UNS N06603, UNS N06025, dan UNS N06045)
AMS 5580Nikel tabung tanpa jahitan
-
