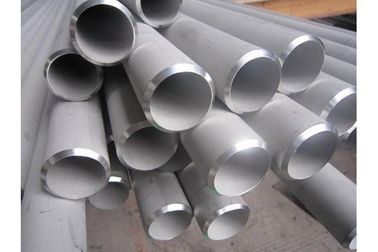

Alloy Nickel - Base Inconel Tube Kemurnian Tinggi Inconel 718 Tubing 1634,4 σB / MPa

Properti Dasar
Tempat Asal: Cina
Nama merek: Torich
Sertifikasi: CE PED
Nomor Model: Inconel 718
Properti Perdagangan
Jumlah Pesanan Minimum: 1000KG
Harga: 6000-20000 USD per ton
Ketentuan Pembayaran: L/C, T/T
Kemampuan Penyediaan: 200 ton per tahun
Ringkasan Produk
Inconel Steel Tube dengan Inconel Alloy Steel GradeInconel 718 Komponen mekanik: Kualitas Standar Kemurnian Tinggi C: ≤ 0.080.02-0.06 0.02-0.06 Cr:17.0-21.0 17.0-21.0 17.0-21.0 Ni:50.0-55.0 50.0-55.0 50.0-55.0 Co:≤1,0 ≤1,0 ≤1.0 Mo:2.8-3.3 2.8-3.3 2.8-3.3 Al:0.3-0.7 0.3-0.7 0.3-0.0.7 Ti:0.75-1.15 0...

Rincian produk

Menyoroti:

inconel 600 tube

,

inconel 718 tube

Deskripsi Produk

Inconel Steel Tube dengan Inconel Alloy Steel GradeInconel 718

Komponen mekanik:

Kualitas Standar Kemurnian Tinggi

C: ≤ 0.080.02-0.06 0.02-0.06

Cr:17.0-21.0 17.0-21.0 17.0-21.0

Ni:50.0-55.0 50.0-55.0 50.0-55.0

Co:≤1,0 ≤1,0 ≤1.0

Mo:2.8-3.3 2.8-3.3 2.8-3.3

Al:0.3-0.7 0.3-0.7 0.3-0.0.7

Ti:0.75-1.15 0.75-1.15 0.75-1.15

Perhatikan:4.75-5.505.0-5.50 5.0-5.50

B:00.006max 0.006max 0.006max

Mg:0.01max 0.01max0.005max

Mn:0.35max 0.35max 0.35max

Si:0.35max 0.35max 0.35max

P:0.015max 0.015max 0.015max

S:0.015max 0.015max0.002max

Cu:0.30max 0,30max 0,30max

Ca:0.01max 0.01max0.005max

Pb:0.5max0.001max 0.001max

Se:0.3max 0.3max 0.3max

Karakteristik:

Inconel718 paduan super paduan nikel-basis.

Dalam kisaran -253-700°C dengan kinerja keseluruhan yang baik

Anti-kelelahan yang baik, anti-radiasi, anti-oksidasi, ketahanan korosi, sifat pengolahan yang baik, kinerja las, stabilitas organisasi jangka panjang.

Aplikasiadalah ruang angkasa, energi nuklir, industri minyak, dan sebagainya dalam berbagai aplikasi.

Sifat mekanik InconelX-718.

Spesifikasi

d / mm

Arah pengambilan sampel

θ/°C

Sifat tarik setidaknya kurang dari

HBS

Kinerja yang tahan lama

σP0.2/MPa

σb/MPa

δ5/%

ψ/%

σ/MPa

t/h

δ5/%

≤ 125

Potret

20

650

1030

860

1280

1

12

12

15

15

≥ 346

---

---

690

---

≥ 25

---

≥ 5

126 ~ 200

Transversal

20

650

1030

860

1240

965

6

6

8

8

---

---

---

690

---

≥ 25

---

---

> 200

Transversal

20

650

1020

800

1230

900

6

6

8

8

---

---

---

690

---

≥ 25

---

---

Aku tidak tahu.

Dampak suhu pada sifat tarik dari batang yang digulung panas.

Suhu / °C

Kekuatan tarik

σb / MPa

Kekuatan hasil

σP0.2 / MPa

Perpanjangan/% Penyusutan/%
- 195 tahun.5 1634.4 1196.5 26.0 27
- 51 tahun.1 1389.6 1089.6 23.0 33.5
26.6 1313.7 1058.6 22 32.5
648.8 1134.4 999.9 28.0 59.2
704.4 1003.4 917.2 22 34
