Pipa Clad Stainless Khusus Dilas GB / T 18704 06Cr19Ni10 Untuk Keperluan Struktural
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO 9001 ISO14001 TS16949
Nomor Model:
GB / T 18704
Properti Perdagangan
Jumlah Pesanan Minimum:
3 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:
60000 Ton per Tahun
Ringkasan Produk
Deskripsi produk: Untuk tujuan struktural GB/T 18704 Pipa berlapis stainless steel las Kelas baja/bahan baja: Kelas baja Komposisi kimia % C Ya. Mn P S Tidak Cr N 12Cr17Mn6Ni5N ≤ 0.15 ≤ 1.00 5.50-7.50 ≤ 0.050 ≤ 0.030 3.50-5.50 16.00-18.00 0.05-0.25 12Cr18Mn0Ni5N ≤ 0.15 ≤ 1.00 7.50-10.0 ≤ 0.050 ≤ 0...
Rincian produk
Menyoroti:
structural steel square tubing
,persegi panjang pipa baja
Characteristic:
Pipa Berpakaian Stainless Dilas
Material:
06Cr19Ni10, 12Cr18Ni9 dll
Production Method:
Diproduksi oleh dilas
Package:
Dalam bundel atau sesuai permintaan
End Protector:
Polos
Length:
1-8m
Type:
Pipa Berpakaian
MTC:
EN10204.3.1
Deskripsi Produk
Deskripsi produk:
Untuk tujuan struktural GB/T 18704 Pipa berlapis stainless steel las
Kelas baja/bahan baja:
| Kelas baja | Komposisi kimia % | |||||||
| C | Ya. | Mn | P | S | Tidak | Cr | N | |
| 12Cr17Mn6Ni5N | ≤ 0.15 | ≤ 1.00 | 5.50-7.50 | ≤ 0.050 | ≤ 0.030 | 3.50-5.50 | 16.00-18.00 | 0.05-0.25 |
| 12Cr18Mn0Ni5N | ≤ 0.15 | ≤ 1.00 | 7.50-10.0 | ≤ 0.050 | ≤ 0.030 | 4.00-6.00 | 17.00-19.00 | 0.05-0.25 |
| 12Cr18Ni9 | ≤ 0.15 | ≤ 1.00 | ≤ 2.00 | ≤ 0.045 | ≤ 0.030 | 8.00-10.00 | 17.00-19.00 | ≤ 0.10 |
| 06Cr19Ni10 | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | ≤ 0.045 | ≤ 0.030 | 8.00-11.00 | 18.00-20.00 | - |
Sifat Mekanis:
| Kelas baja | Kekuatan hasil MPa | Kekuatan tarik MPa | Elongasi % |
| ≥ | |||
| 12Cr17Mn6Ni5N | 245 | 520 | 25 |
| 12Cr18Mn0Ni5N | 245 | 520 | |
| 12Cr18Ni9 | 210 | 520 | 30 |
| 06Cr19Ni10 | 210 | 520 | |
Kondisi pengiriman:
SNB, SB, SP, SS
Jangkauan ukuran:
OD: 12,7-325mm
WT: 0,8-12mm
Panjang: 1000-8000mm
Ukuran biasa kami: 12.7x0.8mm, 48.3x1.6mm, 127x3.5mm dll
Karakteristik pipa berlapis:
Resilien yang baik
Mudah dibentuk mesin
Biaya yang hilang
Kualitas stabil
Kerontokan yang halus
TORICH Jaminan Kualitas
Proses Produksi:

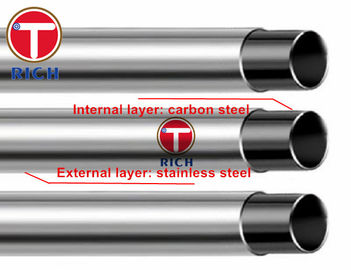

Bagian dalam pelat baja karbon, terbungkus erat di luar pelat baja tahan karat dengan cetakan terus-menerus las.
Bahan baku baja:
Garis produksi:
Uji arus eddy dan uji ultrasonik:
Inspeksi kualitas di laboratorium:
Kemasan:
Untuk tujuan struktural GB/T 18704 Pipa berlapis stainless steel las
