ASTM A334 Gr6 Carbon Steel Seamless Tube, Ss Seamless Pipe Untuk Temperatur Rendah '
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO 9001 ISO14001 TS16949
Nomor Model:
ASTM A334
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
900-1500 USD/ton
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:
60000 Ton per Tahun
Ringkasan Produk
Deskripsi produk: Tabung baja karbon dan paduan tanpa jahitan ASTM A334 Gr6 untuk layanan suhu rendah Bahan: Elemen Kompasi, % Gr1 Gr3 Gr6 Gr7 Gr8 Gr9 Gr11 C, maksimal 0.30 0.19 0.30 0.19 0.13 0.20 0.10 Mn 0.40-1.06 0.31-0.64 0.29-1.06 0.90 maksimal 0.90 maksimal 0.40-1.06 0.60 maksimal P, maksimal ...
Rincian produk
Menyoroti:
baja karbon Tabung
,high carbon steel tube
Characteristic:
Tabung baja mulus
Material:
Gr1, Gr6, Gr8 dll
Production Method:
Mulus / dilas
Package:
Dalam bundel atau sesuai permintaan
End Protector:
Biasa / Miring
Length:
2-12 m
Type:
Tabung Baja Karbon dan Paduan
MTC:
EN10204.3.1
Deskripsi Produk
Deskripsi produk:
Tabung baja karbon dan paduan tanpa jahitan ASTM A334 Gr6 untuk layanan suhu rendah
Bahan:
| Elemen | Kompasi, % | ||||||
| Gr1 | Gr3 | Gr6 | Gr7 | Gr8 | Gr9 | Gr11 | |
| C, maksimal | 0.30 | 0.19 | 0.30 | 0.19 | 0.13 | 0.20 | 0.10 |
| Mn | 0.40-1.06 | 0.31-0.64 | 0.29-1.06 | 0.90 maksimal | 0.90 maksimal | 0.40-1.06 | 0.60 maksimal |
| P, maksimal | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 |
| S, maksimal | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 |
| Ya. | - | 0.18-0.37 | 0.10 menit | 0.13-0.32 | 0.13-0.32 | - | 0.35 maksimal |
| Tidak | - | 3.18-3.82 | - | 2.03-2.57 | 8.40-9.60 | 1.60-2.24 | 35.0-37.0 |
| Cr | - | - | - | - | - | - | 0.50 maksimal |
| Cu | - | - | - | - | - | 0.75-1.25 | - |
| Co. | - | - | - | - | - | - | 0.50 maksimal |
| Mo | - | - | - | - | - | - | 0.50 maksimal |
Pembuatan:
Pipa dibuat dengan proses las tanpa jahitan atau otomatis tanpa penambahan logam pengisi dalam operasi las.
Pengolahan panas:
Semua pipa tanpa jahitan dan las, selain kelas 8 dan 11, dirawat panas untuk mengontrol mikrostruktur mereka sesuai dengan metode:
· Meneroralisasi
· Dipotong dan Dipanaskan
· Double Normalisasi dan tempered
Uji dan Pemeriksaan:
Persyaratan Tekanan
Persyaratan Dampak
Pengujian Mekanis
- Pengambilan sampel
- Uji tegangan transversal atau longitudinal dan uji perataan
- Uji hidrostatik
- Tes Dampak

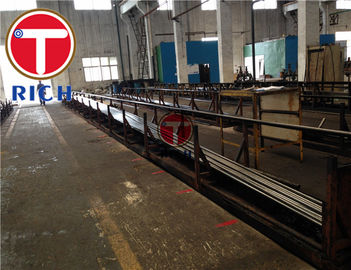

Produksi Steel Tube Gr6:
