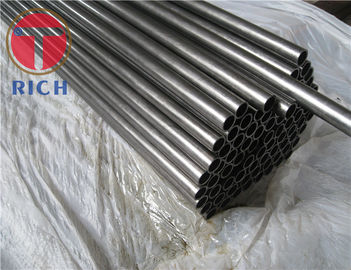

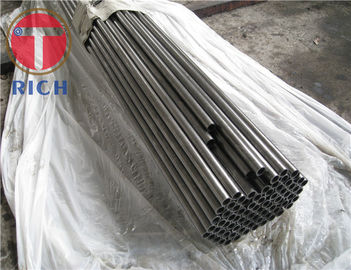

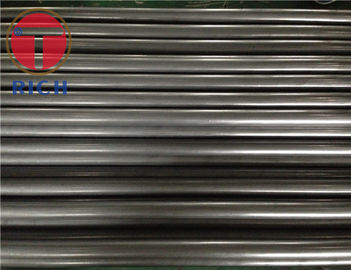

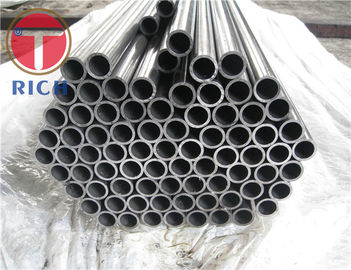

Astm A213 Sa213 Tabung Boiler Baja Karbon Seamless Dengan Finish Panas / Dingin
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO9001, TS16949
Nomor Model:
ASTM A213
Properti Perdagangan
Jumlah Pesanan Minimum:
3tons
Harga:
USD1000-1200/TON
Ketentuan Pembayaran:
T / T, L / C, D / A, D / P, Western Union, MoneyGram
Kemampuan Penyediaan:
60000ton / tahun
Ringkasan Produk
ASTM A213 SA213 Boiler, Super Heater dan Tabung Penukar Panas Jangkauan ukuran:O.D.:6-168mm W.T.:1-15mm L: sesuai dengan kebutuhan pelanggan Aplikasi:Tabung InstrumenTabung kromatografiTabung hidraulikTabung Tekanan TinggiTabung yang dibersihkanTubing Multi Core Pembuatan:Proses yang mulus dengan ...
Rincian produk
Menyoroti:
baja karbon Tabung
,high carbon steel tube
Product Name:
ASTM A213 SA213 Boiler, Super Heater Dan Tabung Penukar Panas
Standard:
ASTM A213, SA213
Technique:
Hasil akhir panas, hasil akhir yang dingin
Section Shape:
Bulat
Certification:
ISO9001, TS16949
Alloy Or Not:
Paduan Feritik
Secondary Or Not:
Non-sekunder
Special Tube:
Tabung penukar panas
Surface:
diminyaki
Hea Treatment:
Anil penuh atau isotermal
Deskripsi Produk
ASTM A213 SA213 Boiler, Super Heater dan Tabung Penukar Panas
Jangkauan ukuran:O.D.:6-168mm W.T.:1-15mm L: sesuai dengan kebutuhan pelanggan
Aplikasi:
Tabung Instrumen
Tabung kromatografi
Tabung hidraulik
Tabung Tekanan Tinggi
Tabung yang dibersihkan
Tubing Multi Core
Pembuatan:
Proses yang mulus dengan Hot-Finish atau Cold-Finish.
Pengolahan panas:
Penggilingan penuh atau isotermik
Normalkan dan tenang
Subkritis penggilingan
Sifat Mekanis dan Pemeriksaan:
Persyaratan Tekanan
Persyaratan Kekerasan
Tes perataan
Uji pembakaran
Kondisi permukaan:
Ferritic Alloy tabung baja selesai dingin bebas skala dan cocok untuk inspeksi
Pipa baja paduan ferritik yang diproses panas bebas dari skala longgar dan seragam untuk inspeksi.
| Kelas baja dan komposisi kimia: | |||||||
| Kelas baja | C | Mn | P | S | Ya. | Cr | Mo |
| maksimal | maksimal | maksimal | maksimal | maksimal | menit | ||
| T5 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.5 | 4.0-6.0 | 0.45-0.65 |
| T9 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.0-10.0 | 0.90-1.10 |
| T11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.0-1.50 | 0.44-0.65 |
| T12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | 0.50 | 0.80-1.25 | 0.44-0.65 |
| T21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 2.65-3.35 | 0.80-1.06 |
| T22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | 1.90-2.60 | 0.87-1.13 |
| Kelas baja | Kekuatan tarik | Kekuatan Hasil | Perpanjangan | Kekerasan.Max. | |
| Min.ksi [Mpa] | Min.ksi [Mpa] | % | Brinell/Vickers | Rockwell | |
| T5b | 60[415] | 30[205] | 30 | 179HBW/190HV | 89HRB |
| T9 | 60[415] | 30[205] | 30 | 179HBW/190HV | 89HRB |
| T12 | 60[415] | 32[220] | 30 | 163HBW/170HV | 85HRB |
| T91 | 85[585] | 60[415] | 20 | 250HBW/265HV | 25HRC |
| T92 | 90[620] | 64[440] | 20 | 250HBW/265HV | 25HRC |
