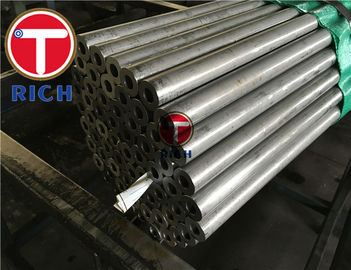

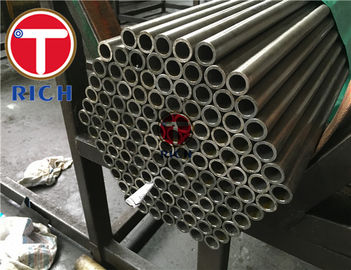

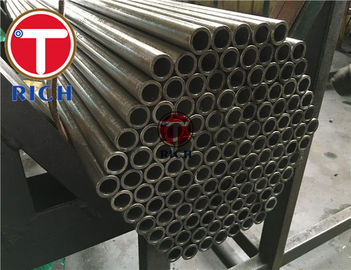

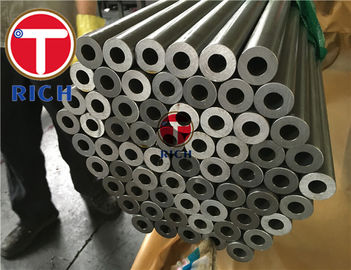

Aisi8620 Cold Drawn Alloy Steel Seamless Tube Untuk Steam Turbin - Gear Unit
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO 9001 ISO14001 TS16949
Nomor Model:
AISI8620
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:
60000 Ton per Tahun
Ringkasan Produk
Deskripsi produk: untuk unit turbin uap-gear Cold-drawn Seamless Alloy Steel Tubes AISI8620 Detil singkat: Komposisi kimia: Kelas baja C Ya. Mn Cr Tidak Mo P S Ti 20CrNiMo 0.17-0.23 0.17-0.37 0.60-0.95 0.40-0.70 0.35-0.75 0.20-0.30 ≤ 0.035 ≤ 0.035 - AISI8620 0.18-0.23 0.15-0.35 0.70-0.90 0.40-0.60 0...
Rincian produk
Menyoroti:
tabung baja paduan
,baja paduan tabung mulus
Characteristic:
Tabung Baja Paduan AISI8620
Material:
AISI8620, 20CrNiMo dll
Production Method:
Dingin Dingin Diambil
Package:
Dalam bundel atau sesuai permintaan
End Protector:
Polos / Miring
Length:
2-12M
Type:
Tabung baja paduan
MTC:
EN10204.3.1
Deskripsi Produk
Deskripsi produk:
untuk unit turbin uap-gear Cold-drawn Seamless Alloy Steel Tubes AISI8620
Detil singkat:
Komposisi kimia:
| Kelas baja | C | Ya. | Mn | Cr | Tidak | Mo | P | S | Ti |
| 20CrNiMo | 0.17-0.23 | 0.17-0.37 | 0.60-0.95 | 0.40-0.70 | 0.35-0.75 | 0.20-0.30 | ≤ 0.035 | ≤ 0.035 | - |
| AISI8620 | 0.18-0.23 | 0.15-0.35 | 0.70-0.90 | 0.40-0.60 | 0.40-0.70 | 0.15-0.25 | ≤ 0.035 | ≤ 0.040 | - |
| AISI8620H | 0.17-0.23 | 0.15-0.35 | 0.60-0.95 | 0.35-0.65 | 0.35-0.75 | 0.15-0.25 | - | - | - |
| 20CrMnTiH | 0.17-0.23 | 0.17-0.37 | 0.80-1.15 | 1.00-1.35 | - | - | ≤ 0.035 | ≤.035 | 0.04-0.10 |
Sifat Mekanis:
| Kelas baja | Kekuatan Hasil MPa | Kekuatan tarik MPa | Perpanjangan % |
| 20CrNiMo | 785 | 980 | 9 |
| AISI8620 | |||
| AISI8620H | |||
| 20CrMnTiH | 835 | 1080 | 10 |
Aplikasi:untuk Unit Mesin Turbin Uap
Pengantar:
Baja paduan mengandung berbagai baja yang komposisinya melebihi batasan C, Mo, Cr, Va, Mn, Ni, Si, dan B yang ditetapkan untuk baja karbon.Baja ini lebih responsif terhadap perawatan mekanik dan panas daripada baja karbon.
Baja paduan AISI 8620 adalah baja paduan karburisasi yang umum. Baja paduan ini fleksibel selama perawatan pengerasan, sehingga memungkinkan peningkatan sifat case/core.Lembar data berikut akan memberikan rincian lebih lanjut tentang baja paduan AISI 8620..
Produksi tabung baja:
Uji arus eddy dan uji ultrasonik:
Kemasan:
