Hot Rolled Steel Hydraulic Tubing 6-11.8m, Tabung Baja Seamless Untuk Layanan Pilar Hidrolik
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO9001 TS16949
Nomor Model:
GB / T 17396
Properti Perdagangan
Jumlah Pesanan Minimum:
20TONS
Harga:
800-1200USD/ton
Ketentuan Pembayaran:
L/C, T/T
Kemampuan Penyediaan:
5000 ton per tahun
Ringkasan Produk
Hot tabung baja tanpa jahitan yang digulung untuk layanan pilar hidrolik Informasi Dasar Bahan 1020 1035 1045 27SiMn 30MnNbRE Standar GB/T 17396 Metode produksi Bergelombang panas Panjang 6-11.5m O.D. 100-900 mm Ketebalan dinding 6-30mm Komposisi kimia maksimal %: C Ya. Mn Nb RE Cr Tidak Cu Mo P S ...
Rincian produk
Menyoroti:
diasah silinder hidrolik tabung
,diasah hidrolik tabung silinder
Material:
1020 1035 1045 27SiMn 30MnNbRE
Standard:
GB/T 17396
Production Method:
Digulung panas
Length:
6-11.8m
O.D.:
100-900mm
Wall Thickness:
6-30mm
Deskripsi Produk

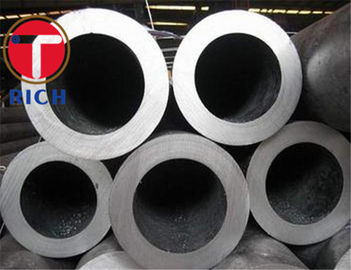

Hot tabung baja tanpa jahitan yang digulung untuk layanan pilar hidrolik
Informasi Dasar
| Bahan | 1020 1035 1045 27SiMn 30MnNbRE |
| Standar | GB/T 17396 |
| Metode produksi | Bergelombang panas |
| Panjang | 6-11.5m |
| O.D. | 100-900 mm |
| Ketebalan dinding | 6-30mm |
Komposisi kimia maksimal %:
| C | Ya. | Mn | Nb | RE | Cr | Tidak | Cu | Mo | P | S | |
| 1020 | 0.18-0.23 | 0.30-0.60 | 0.035 | 0.035 | |||||||
| 1035 | 0.32-0.38 | 0.60-0.90 | 0.035 | 0.035 | |||||||
| 1045 | 0.37-0.44 | 0.60-0.90 | 0.035 | 0.035 | |||||||
| 27SiMn | 0.24-0.32 | 1.10-1.40 | 1.10-1.40 | 0.30 | 0.30 | 0.20 | 0.15 | 0.035 | 0.035 | ||
| 30MnNbRE | 0.27-0.36 | 0.20-0.60 | 1.20-0.60 | 0.020-0.050 | 0.02-0.04 | 0.30 | 0.30 | 0.20 | 0.15 | 0.035 | 0.035 |
Tidak ada burrs
Kepadatan:7.85
kg/dm3

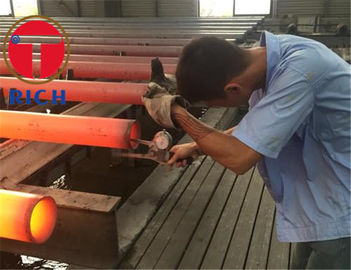

Kontrol kualitas:
Bahan baku masuk pemeriksaan.
Uji tarik
Uji kekerasan
Uji dampak
Uji cacat struktur makro
ect.
Kualitas adalah budaya kami.
