Segitiga Lemon Pipa Baja Khusus Untuk PTO Pertanian Drive Shaft dari TORICH
Properti Dasar
Tempat Asal:
Zhejiang, China
Nama merek:
TORICH
Sertifikasi:
ISO9001 ISO14001 TS16949
Nomor Model:
GB / T 3097
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T / T, L / C, D / A, D / P, Western Union, MoneyGram
Kemampuan Penyediaan:
5000 TON PER BULAN
Ringkasan Produk
Triangle Lemon pipa baja khusus untuk PTO pertanian drive shaft dari TORICH Informasi produk: Bahan: SAE1010, SAE1020, SAE1035, SAE1045, ST37.0, ST44, ST52, E235, E355 Kelas: BS, JIS, GB, DIN, ASTM, API, Bentuk: Lemon Ketebalan dinding: 0,5-50 mm Panjang: hingga 12m, atau sesuai dengan kebutuhan ...
Rincian produk
Menyoroti:
Alloy Steel Seamless Pipe
,structural steel square tubing
Product Name:
Segitiga Lemon Pipa Baja Khusus Untuk PTO Pertanian Drive Shaft dari TORICH
Keyword:
Pipa Baja Khusus
Application:
untuk Poros Drive Pertanian PTO
Material:
1010,1020,1045,16Mn, ST52, dll.
Shape:
Segitiga
Technique:
Dingin Diambil Mulus
OD:
5-420mm
WT:
0.5-50mm
Length:
Disesuaikan
Delivery Time:
20-45 hari
Deskripsi Produk

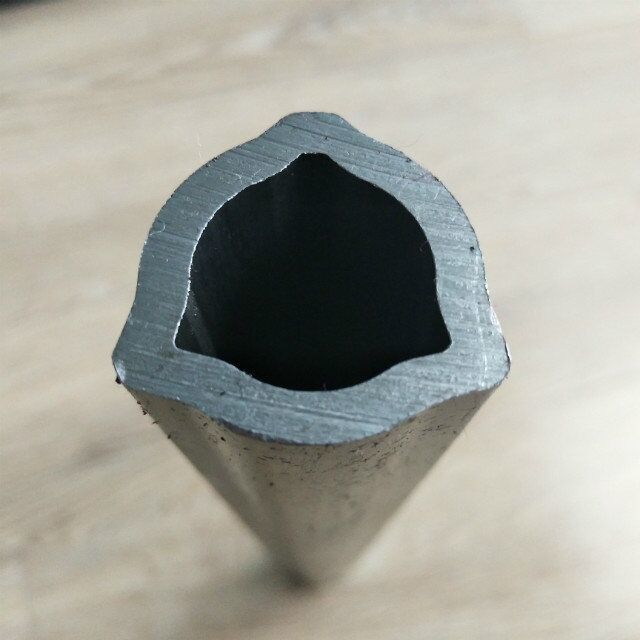

Triangle Lemon pipa baja khusus untuk PTO pertanian drive shaft dari TORICH
Informasi produk:
Bahan: SAE1010, SAE1020, SAE1035, SAE1045, ST37.0, ST44, ST52, E235, E355
Kelas: BS, JIS, GB, DIN, ASTM, API,
Bentuk: Lemon
Ketebalan dinding: 0,5-50 mm
Panjang: hingga 12m, atau sesuai dengan kebutuhan pelanggan.
Diameter luar: Bulat: 5-420mm
Diameter dan ketebalan dinding bisa sesuai permintaan pelanggan.
Teknologi: Cold Draw/Cold Rolled
Perawatan permukaan: dicat,digalvanisasi,atau dicelupkan minyak sesuai dengan kebutuhan pelanggan
Aplikasi: Pencahayaan, perabotan, peralatan medis
Tempat asal: Cina
Aplikasi Struktur mekanik, mesin tekanan karbon dll.
| Toleransi untuk lebar | |||
| Ukuran ((mm) | Toleransi ((mm) | ||
| Umum | Tingkat Tinggi | ||
| Lebar A / B | ≤ 30 | ± 0.30 | ± 0.20 |
| >30-50 | ± 0.40 | ± 0.30 | |
| >50-75 | ± 0,80%A | ± 0,70%A | |
| ± 0,80%B | ± 0,70%B | ||
| > 75 | ± 1%A | ± 0,8%A | |
| ± 1%B | ± 0,8%B | ||
| Toleransi untuk ketebalan dinding | |||
| Ukuran ((mm) | Toleransi ((mm) | ||
| Umum | Tingkat Tinggi | ||
| Lebar A / B | ≤ 1.0 | ± 0.18 | ± 0.12 |
| > 1,0-3.0 | +15% WT | + 12,5% WT | |
| -10% WT | -10% WT | ||
| > 3.0 | + 12,5% WT | ± 10% WT | |
| -10% WT | |||
