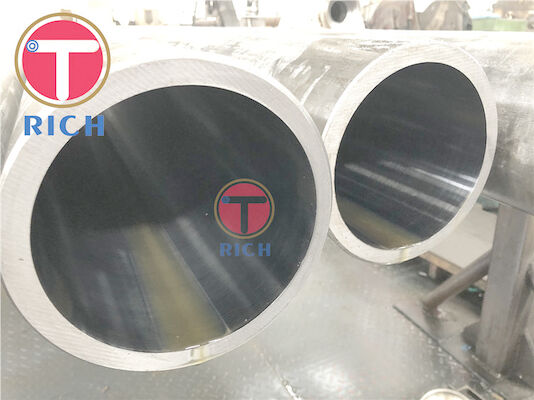

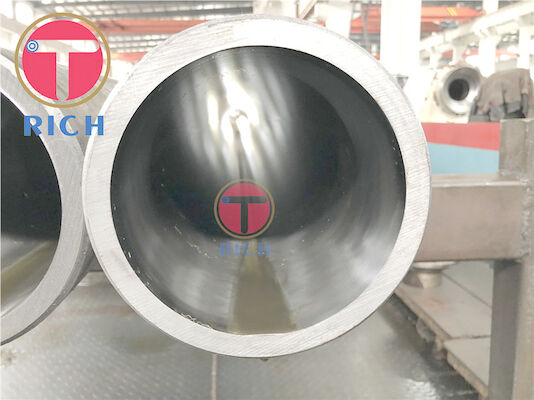

ASTM A513-5 Dom Steel Tubing Untuk Silinder Hidrolik Dan Silinder Pneumatik
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
GB/T 19001-2008 , ISO 9001:2008 , TS16949
Nomor Model:
GB / T3639 、 GB / T8713 、 EN10305-1: 2002 、 EN10305-2: 2002 、 ASTM A519-2006 、 ASTM A513-2007 、 GB /
Properti Perdagangan
Jumlah Pesanan Minimum:
2MT
Harga:
USD1700-1800 per ton
Ketentuan Pembayaran:
L/C, T/T, D/A, D/P, Western Union,
Kemampuan Penyediaan:
6000MT
Ringkasan Produk
ASTM A513-5 DOM Steel Tube Untuk Silinder Hidraulik Dan Silinder Pneumatik Standar:GB/T3639, GB/T8713, EN10305-1:2002, EN10305-2:2002,ASTM A519-2006, ASTM A513-2007, GB/T1591-2008, GB/T17396-2009 Bahan:20#, 45#, Q345B, Q345D, 25Mn, 27SiMn, E355 Standar/ukuran/toleransi tabung silinder hidrolik dan ...
Rincian produk
Menyoroti:
diasah silinder hidrolik tabung
,diasah hidrolik tabung silinder
Type::
Tabung Silinder Hidrolik
Material::
20#、45#、Q345B、Q345D、25Mn、27SiMn、E355
I.D.::
40-400mm
W.T.::
5mm
Technique::
DOM
Alloy Or Not::
Non-paduan
Length:
Hingga 12000mm sesuai dengan kebutuhan pelanggan
Place Of Origin:
Zhejiang, Tiongkok (Daratan)
Surface Treatment:
Sebagai kebutuhan pelanggan
Deskripsi Produk
ASTM A513-5 DOM Steel Tube Untuk Silinder Hidraulik Dan Silinder Pneumatik
Standar:GB/T3639, GB/T8713, EN10305-1:2002, EN10305-2:2002,
ASTM A519-2006, ASTM A513-2007, GB/T1591-2008, GB/T17396-2009
Bahan:20#, 45#, Q345B, Q345D, 25Mn, 27SiMn, E355
| Standar/ukuran/toleransi tabung silinder hidrolik dan pneumatik | ||||||||||
Metode kerja |
(mm) | Panjang (m) | Kejujuran (mm/m) | Toleransi pada ID | Toleransi di WT |
(um) | ||||
| Pembuatan dingin | 40 sampai 400 | ≤ 12m | 0.2-0.5 | / | ± 5% | ≤ 1.6 | ||||
| Dilapisi dingin | 40 sampai 150 | ≤ 12m | 0.2-0.5 | / | ± 5% | ≤ 0.8 | ||||
| Dilapisi dingin | 40 sampai 400 | ≤ 8m | 0.2-0.3 | H8-H9 | ± 5% | ≤ 0.4 | ||||
| Pengepungan dingin | 50 sampai 300 | ≤ 8m | 0.2-0.3 | H8-H9 | ± 5% | ≤ 0.4 | ||||
| Pengeboran lubang dalam-Rowing | 250 sampai 400 | ≤ 8m | 0.2-0.3 | H8-H9 | ± 8% | ≤ 0.8 | ||||
| Deep hole boring-Honeed Rowing | 250 sampai 400 | ≤ 8m | 0.2-0.3 | H8-H9 | ± 8% | ≤ 0.4 | ||||
| Properti mekanis | |||||||||
| Kondisi pasokan akhir
Besi kelas | Cold selesai ((hard)) ((BK)) | (Ditarik dingin dan mengurangi tekanan ((BK + S) | |||||||
| T.S. bN/mm2 | Penghargaan 5% | T.S bN/mm2 | Y.S Bn/mm2 | Penghargaan 5% | Kekerasan HB | Nilai dampak ((-20°C) J | |||
| 20 | ≥ 550 | ≥ 8 | ≥520 | ≥ 400 | ≥ 15 | 170 | / | ||
| 45 | ≥680 | ≥ 5 | ≥ 630 | ≥520 | ≥ 12 | 190 | / | ||
| Q345B | ≥660 | ≥ 8 | ≥ 620 | ≥520 | ≥ 15 | 190 | / | ||
| Q345D | ≥660 | ≥ 8 | ≥ 620 | ≥520 | ≥ 15 | 190 | ≥27 | ||
| 25Mn | ≥ 640 | ≥ 8 | ≥ 620 | ≥510 | ≥ 15 | 190 | / | ||
| 27SiMn | ≥ 780 | ≥ 5 | ≥ 700 | ≥580 | ≥ 10 | 210 | / | ||
| E355 | ≥ 700 | ≥ 8 | ≥650 | ≥580 | ≥ 15 | 195 | ≥27 | ||
| Komposisi kimia | |||||||||
Besi kelas | C | Ya. | Mn | P | S | Cr | Tidak | Cu | V |
| 20 | 0.17-0.23 | 0.17-0.37 | 0.35-0.65 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.30 | ≤ 0.25 | / |
| 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.30 | ≤ 0.25 | / |
| Q345B | ≤ 0.20 | ≤ 0.50 | ≤ 0.17 | ≤ 0.035 | ≤ 0.035 | ≤ 0.30 | ≤ 0.50 | ≤ 0.30 | ≤ 0.15 |
| Q345D | ≤ 0.18 | ≤ 0.50 | ≤ 0.17 | ≤ 0.030 | ≤ 0.025 | ≤ 0.30 | ≤ 0.50 | ≤ 0.30 | ≤ 0.15 |
| 25Mn | 0.24-0.32 | 1.10-1.40 | 1.10-1.40 | ≤ 0.035 | ≤ 0.035 | ≤ 0.30 | ≤ 0.30 | ≤ 0.20 | / |
| 27SiMn | 0.22-0.29 | 0.17-0.37 | 0.70-1.0 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.30 | ≤ 0.25 | / |
| E355 | ≤ 0.22 | ≤ 0.50 | ≤ 1.60 | ≤ 0.035 | ≤ 0.025 | / | / | / | / |
| (Toleransi pada ID) um | |||||||||
| Ukuran ID | (Toleransi pada ID) | ||||||||
| H7 | H8 | H9 | H10 | ||||||
| 30 | +21 0 | +33 0 | +52 0 | +84 0 | |||||
| >30-50 | +25 0 | +39 0 | +62 0 | +100 0 | |||||
| >50-80 | +30 0 | +46 0 | +74 0 | +120 0 | |||||
| > 80-120 | +35 0 | + 54 0 | +87 0 | +140 0 | |||||
| > 120-180 | +40 0 | +63 0 | +100 0 | +160 0 | |||||
| > 180 sampai 250 | +46 0 | + 72 0 | +115 0 | +185 0 | |||||
| > 250-315 | +52 0 | +81 0 | +140 0 | +210 0 | |||||
| > 315-400 | +57 0 | +89 0 | +170 0 | +230 0 | |||||
