Pipa Baja Bentuk Omega Khusus 1010 1020 Pelindung Tutup Pipa Plastik
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO9001, TS16949
Nomor Model:
BS, JIS, GB, DIN, ASTM
Properti Perdagangan
Jumlah Pesanan Minimum:
1 TON
Harga:
Dapat dinegosiasikan
Kemampuan Penyediaan:
20.000 ton / tahun
Ringkasan Produk
Omega Bentuk pipa baja khusus 1010 1020 Plastik pipa tutup ujung pelindung Deskripsi produk: Omega Tube Seamless Carbon Steel Special Shape Pipe 1010 1020 pipa baja khusus tabung Omega Informasi produk: Bahan: SAE1010, SAE1020, SAE1035, SAE1045, ST37.0, ST44, ST52, E235, E355 Kelas: BS, JIS, GB, DIN...
Rincian produk
Menyoroti:
Alloy Steel Seamless Pipe
,persegi panjang pipa baja
Production:
Ditarik Dingin
Heat Treatment:
anil
Surface:
Persyaratan pelanggan
Material:
CFS 3, CFS 3A, CFS 4 dll
End Protector:
Tutup Pipa Plastik
Usage:
Ketel
Type:
Tabung Baja Mulus
Shape:
Bentuk Omega
Deskripsi Produk

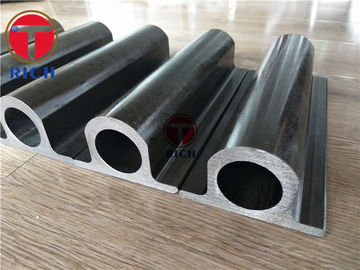

Omega Bentuk pipa baja khusus 1010 1020 Plastik pipa tutup ujung pelindung
Deskripsi produk:
Omega Tube Seamless Carbon Steel Special Shape Pipe 1010 1020
pipa baja khusus tabung Omega
Informasi produk:
| Bahan: | SAE1010, SAE1020, SAE1035, SAE1045, ST37.0, ST44, ST52, E235, E355 |
| Kelas: | BS, JIS, GB, DIN, ASTM, API, |
| Bentuk: | Omega |
| Ketebalan dinding: | 0.5-50mm |
| Panjangnya: | hingga 12m, atau sesuai dengan kebutuhan pelanggan. |
| Diameter luar: | Bulat: 5-420mm |
| Diameter dan ketebalan dinding bisa sesuai permintaan pelanggan. | |
| Teknologi: | Ditarik dingin/Dilapisi dingin |
| Pengolahan permukaan: | dicat,digalvanisasi,atau dicelupkan minyak sesuai dengan kebutuhan pelanggan |
| Aplikasi: | Pencahayaan, perabotan, peralatan medis |
| Tempat asal: | Cina |
| Aplikasi | Struktur mekanik, Mesin tekanan karbon dll. |
| Pengiriman & Pembayaran: | |
| Kemasan: | Dalam bundel; atau sesuai dengan kebutuhan pelanggan |
| MOQ: | 5 MT |
| Ketentuan Pengiriman: | FOB Shanghai |
| Ketentuan Parlemen: | T/T, 30% pembayaran muka, saldo dibayarkan terhadap salinan B/L |
| Waktu pengiriman: | Dalam 25-40 hari sejak pembayaran muka diterima |
Kondisi pengiriman:
BK, BKW, GBK, GZF, NBK, NZF
Jangkauan ukuran:
OD: 5,0-220mm
WT:0.5-25mm
Panjang: maksimal 12000mm
Karakteristik tabung baja DOM:
Konsentrisitas yang baik
Toleransi OD dan ID yang baik
Keakuratan Tinggi
Kualitas stabil
Kerontokan yang halus
TORICH Jaminan Kualitas
Proses Produksi:
Tabung tanpa jahitan dan Cold Drawing atau Cold Rolling untuk Omega Shape Production
Garis produksi menggambar dingin:
Bahan bakuStainle Tube:
Uji arus eddy dan uji ultrasonik:
Inspeksi kualitas di laboratorium:
Kemasan:
BS 633-4 Pipa baja yang ditarik dingin tanpa jahitan
