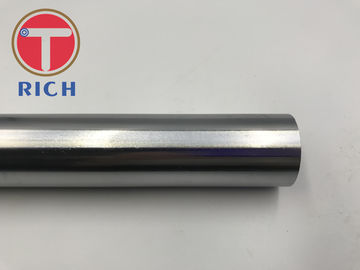

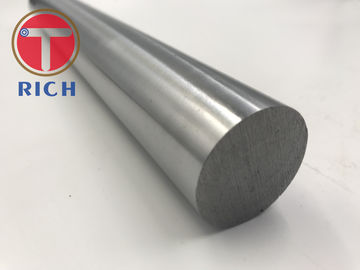

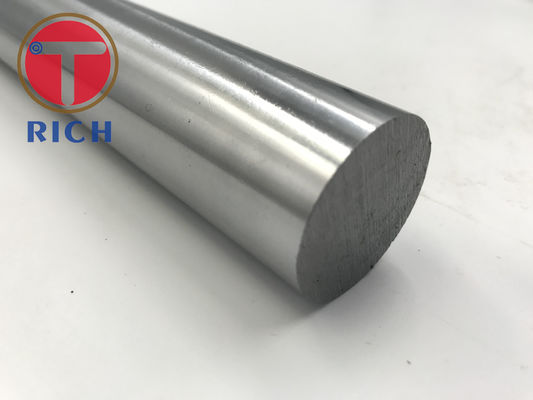

DIN 17200 CK45 40Cr 20MnV6 72mm QT Batang Piston Berlapis Kromium
Properti Dasar
Tempat Asal:
Zhejiang, Cina
Nama merek:
TORICH
Sertifikasi:
ISO9001, ISO14001, TS16949
Nomor Model:
DIN 17200
Properti Perdagangan
Jumlah Pesanan Minimum:
1ton
Ketentuan Pembayaran:
L / C, D / A, D / P, T / T, Western Union, MoneyGram
Kemampuan Penyediaan:
2000 Ton per Tahun
Ringkasan Produk
DIN 17200 CK45 40Cr 20MnV6 72mm QT Batang Piston Berlapis Kromium untuk Silinder Hidraulik Nama: Batang Piston berlapis krom Tipe: Padat / Kerongkong Bahan:CK45, 20MnV6,42CrMo4, 40Cr D: 40-400mm W.T: ≥5mm Paduan atau tidak: Tidak berlogam Panjang: Hingga 12000mm Menurut Permintaan Pelanggan Tempat ...
Rincian produk
Menyoroti:
Batang Piston DIN 17200
,Batang Piston Berlapis Kromium 20MnV6
,Batang Piston Berlapis Kromium QT
Keyword:
Batang Piston DIN 17200 CK45
Standard:
DIN 1720
Material:
CK45, 20MnV6, 42CrMo4, 40Cr
Heat Treatment:
anil, QT
Surface:
Chrome, Nikel
OD:
5mm-420mm
WT:
0,5 mm - 50 mm
Length:
3-9 m
Usage:
silinder hidrolik
Type:
Padat / Berongga
Deskripsi Produk

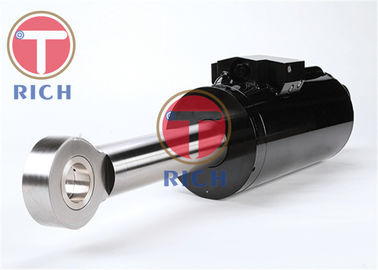

DIN 17200 CK45 40Cr 20MnV6 72mm QT Batang Piston Berlapis Kromium untuk Silinder Hidraulik
Nama: Batang Piston berlapis krom
Tipe: Padat / Kerongkong
Bahan:CK45, 20MnV6,42CrMo4, 40Cr
D: 40-400mm
W.T: ≥5mm
Paduan atau tidak: Tidak berlogam
Panjang: Hingga 12000mm Menurut Permintaan Pelanggan
Tempat Asal: Zhejiang, Cina (Daratan)
Pengolahan permukaan: Berkrom, Nikel
Pengolahan panas: Annealed, QT
Bahan:CK45;20MnV6;42CrMo4;40Cr
| Komposisi Kimia ((%) | ||||||||||
| Kelas baja | C% | Mn% | Si% | S% | P% | V% | Ni% | Cr% | Mo% | Cu% |
| CK45 | 0.42-0.50 | 0.50-0.80 | 0.17-0.37 | ≤ 0.035 | ≤ 0.035 | / | ≤ 0.25 | ≤ 0.25 | / | ≤ 0.25 |
| 20MnV6 | 0.17-0.24 | 1.30-1.70 | 0.10-0.50 | ≤ 0.035 | ≤ 0.035 | 0.10-0.20 | ≤ 0.30 | ≤ 0.30 | / | ≤ 0.30 |
| 42CrMo4 | 0.38-0.45 | 0.5-0.8 | 0.17-0.37 | ≤ 0.035 | ≤ 0.035 | 0.07-0.12 | ≤ 0.03 | 0.90-1.20 | 0.15-0.25 | ≤ 0.03 |
| 40Cr | 0.37-0.45 | 0.50-0.80 | 0.17-0.37 | ≤ 0.035 | ≤ 0.035 | / | ≤ 0.30 | 0.80-1.1 | / | ≤ 0.03 |
| Properti Mekanis | ||||||||||
| Bahan | Kekuatan tarik Rm (Mpa) | Kekuatan Hasil Rel (Mpa) | Pujian A% | CHARPY | Kondisi | |||||
| CK45 | 610 | 355 | 15 | > 41J | Di normalkan | |||||
| CK45 | 800 | 540 | 20 | > 41J | Q+T | |||||
| 20MnV6 | 750 | 590 | 12 | > 41J | Di normalkan | |||||
| 42CrMo4 | 980 | 850 | 14 | > 47J | Q+T | |||||
| 40Cr | 1000 | 800 | 10 | Q+T | ||||||
| Kondisi Pasokan | Dihancurkan dan dilapisi krom |
| Ketebalan krom | 20 sampai 30 mikron |
| KEKERASAN LEBIH | Ra≤0,2 mikron dan Rt≤2 mikron |
| Toleransi pada hari | ISO f7 pada diameter |
| OVALITY | Setengah dari toleransi ISO f7 |
| Kekuatan | ≤ 0,2MM/M |
| Permukaan KERAS | 850-1150 HV ((Vickers 100g) |
| Koesi | Tidak ada retak, pecah atau lepas setelah kelelahan panas (menghangatkan pada 3200 derajat celcius dan mendinginkan dalam air) |
| Porositas | Uji menurut ISO 1456/1458 dan evaluasi hasil menurut ISO 4540 rating 8-10 |
| Ketahanan korosi | Uji dalam semprotan garam alami menurut ASTM B117-120 jam |
| Evaluasi Hasil | sesuai dengan ISO4540 RATING7-10 |
| WELDABILITY | Bagus sekali. |
| Pengemasan | Minyak anti karat yang akan diterapkan pada bahan dan setiap batang yang akan dikemas dalam sleeve kertas |
| Sertifikat | Semua sertifikat yang berkaitan dengan pengolahan panas dan plating bahan diperlukan |
