ASTM B111 C68700 Heat Exchanger Tubes
Properti Dasar
Tempat Asal:
Zhejiang, Cina
Nama merek:
TORICH
Sertifikasi:
ISO9001; ISO14001; TSI16949
Nomor Model:
ASTM B111
Properti Perdagangan
Jumlah Pesanan Minimum:
200 KG
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L / C, D / A, D / P, T / T, Western Union, MoneyGram
Kemampuan Penyediaan:
60000 Ton per tahun
Ringkasan Produk
ASTM B111 C68700 Aluminium Brass Seamless Tube untuk Kondensator dan Penukar Panas Jenis: Tabung Tembaga Baja Aplikasi: Untuk kondensor permukaan, penukar panas, dan penguap Teknik: Ditarik dingin Ukuran: OD 5-420mm WT 1-50 mm Panjang Maksimal 12000mm Komposisi Kimia: Komposisi Kimia Elemen ...
Rincian produk
Menyoroti:
C68700 Heat Exchanger Tubes
,ASTM B111 Heat Exchanger Tubes
,pipa Heat Exchanger C68700
Product Name:
ASTM B111 C68700 Aluminium Brass Seamless Tube untuk Kondensor dan Penukar panas
Product Keyword:
Tabung Aluminium Kuningan Seamless
Grade:
C68700
Application:
Untuk kondensor permukaan, penukar panas, dan evaporator
Secondary:
Non-sekunder
Section Shape:
Bulat
Deskripsi Produk
ASTM B111 C68700 Aluminium Brass Seamless Tube untuk Kondensator dan Penukar Panas
Jenis: Tabung Tembaga Baja
Aplikasi: Untuk kondensor permukaan, penukar panas, dan penguap
Teknik: Ditarik dingin
Ukuran:
| OD | 5-420mm |
| WT | 1-50 mm |
| Panjang | Maksimal 12000mm |
Komposisi Kimia:
| Komposisi Kimia | |
| Elemen | Komposisi, % |
| Cu, incl. Ag | 76.0-79.0 |
| Sn | ️ |
| Al | 1.8-2.5 |
| Ni, inkl. Co | ️ |
| Pb | 0.07 maksimal |
| Fe | 0.06 maksimal |
| Zn | Saldo |
| Mn | 0.02-0.06 |
Properti mekanik:
| Tembaga atau paduan tembaga UNS No. | Nama Temperature | Suhu pengelasan, °C | Kekuatan tarik, menit | Kekuatan hasil, min | HV | |||
| Kode | Nama | KSI | MPa | KSI | MPa | |||
| C68700 | O61 | Berwarna hitam | Lebih dari 650 | 50 | 345 | 18 | 125 | 150 |

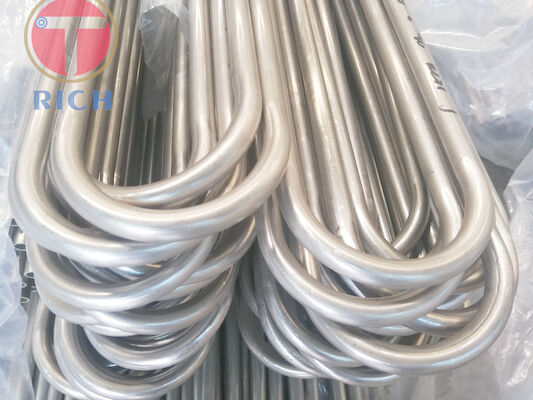

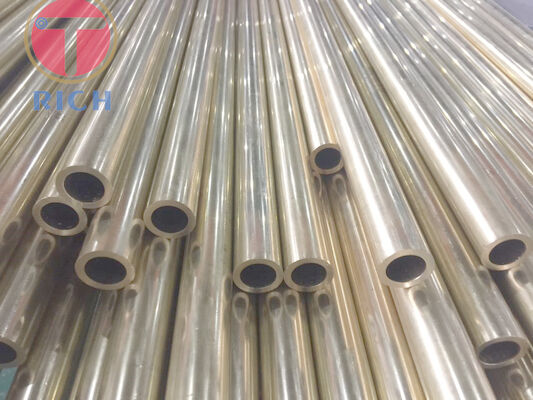

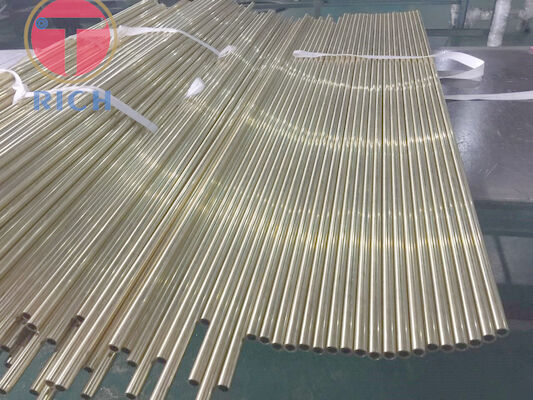

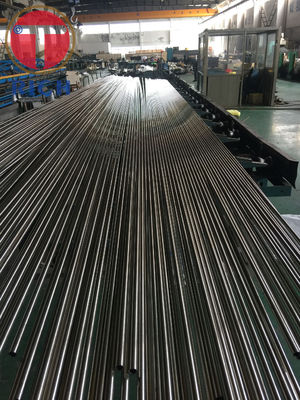

Pameran Produk:
FAQ
T: Apakah Anda perusahaan dagang atau produsen?
A: Kami adalah produsen pipa baja profesional.
T: Berapa lama waktu pengiriman Anda?
A: Umumnya dibutuhkan 7-14 hari jika barang ada di stok atau 30-60 hari jika tidak ada stok, ini terutama tergantung pada kuantitas.
T: Apakah Anda menyediakan sampel gratis?
A: Ya,kami bisa menawarkan sampel gratis tetapi perlu membayar biaya pengiriman.
T: Apa syarat pembayaran Anda?
A:Pembayaran <=1000USD, 100% di muka. Pembayaran>=1000USD, 30% T / T di muka, saldo sebelum pengiriman.
Jika Anda memiliki pertanyaan lain, pls merasa bebas untuk menghubungi kami.
