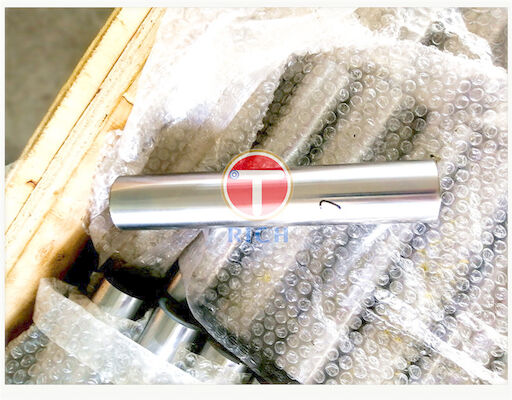

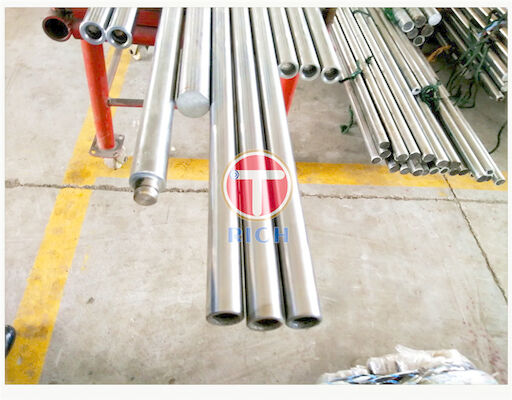

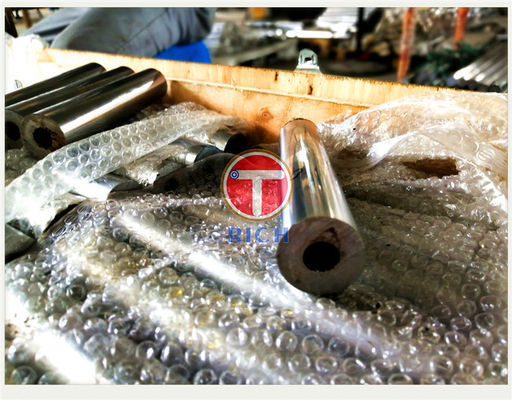

Cerah Selesai Dipoles 4130 4140 42CrMo4 QT Hidrolik Ck45 C45E Hard Chrome Round Bar/Baja Baja/Batang Piston
Rincian produk
4140 Steel Round Bar
,4130 Steel Round Bar
,Torich Steel Round Bar
TORICH bercahaya selesai dipoles 4130 4140 42CrMo4 QT Hidrolik Ck45 C45E Keramik keras batang bulat / baja batang / batang piston
OD:6-300mm
Panjang1:1-9m
Bahan:CK45/ST52/20MnV6/42CrMo/40Cr/Bearing steel/stainless steel/4140 4130 45# 1045 S45C GCr15
Ketebalan krom:20-30 mikron
Kekerasan lapisan krom:800HV ((min)
Pengolahan panas:QT Pengelupasan
Tetap lurus:0.2/1000mm
Keropos permukaan:Ra 0,2 mikron (max)
Lapisan permukaan: Berkualitas tinggi
Toleransif7
Kekuatan hasil:≥ 350Mpa
Kekuatan tarik:≥580Mpa
Perpanjangan:≥15%
Kondisi pasokan:1.Hard krom dilapisi
2.Induksi mengeras
3.Dikeringkan&Mempered
4.Induksi dikeraskan dengan Q&T
Deskripsi:
Bahan
| Bahan | C% | Mn% | Si% | S% | P% | V% | Cr% |
| Ck45 | 0.42-0.50 | 0.50-0.80 | 0.17-0.37 | ≤ 0.035 | ≤ 0.035 |
| ≤ 0.25 |
| ST52 | ≤ 0.22 | ≤ 1.6 | ≤ 0.55 | ≤ 0.04 | ≤ 0.04 | 0.02-0.15 |
|
| 20MnV6 | 0.17-0.24 | 1.30-1.70 | 0.10-0.50 | ≤ 0.035 | ≤ 0.035 | 0.10-0.20 | ≤ 0.30 |
| 42CrMo4 | 0.38-0.45 | 0.50-0.80 | 0.17-0.37 | ≤ 0.035 | ≤ 0.035 | 0.07-0.12 | 0.90-1.20 |
| 40Cr | 0.37-0.45 | 0.50-0.80 | 0.17-0.37 | ≤ 0.035 | ≤ 0.035 |
| 0.80-1.10 |
4. Sifat Mekanis
| Bahan | T.S N/MM2 | Y.S N/MM2 | E% ((MIN) | CHARPY | Kondisi |
| CK45 | 610 | 355 | 15 | > 41J | NORMALIZE |
| CK45 | 800 | 630 | 20 | > 41J | Q + T |
| ST52 | 500 | 355 | 22 |
| NORMALIZE |
| 20MnV6 | 750 | 590 | 12 | > 40J | NORMALIZE |
| 42CrMo4 | 980 | 850 | 14 | > 47J | Q + T |
| 40Cr | 1000 | 800 | 10 |
| Q + T |
Fitur
Toleransi tinggi
Jumlah kecil tersedia
Custom dibuat sesuai pesanan pelanggan
Aplikasi:
Pneumatik hidraulik, poros linier, mesin konstruksi, mesin plastik, mesin bungkus, mesin cetak, poros mesin, gerakan internal.
Kemasan:
Kotak kayu kapas.
-
