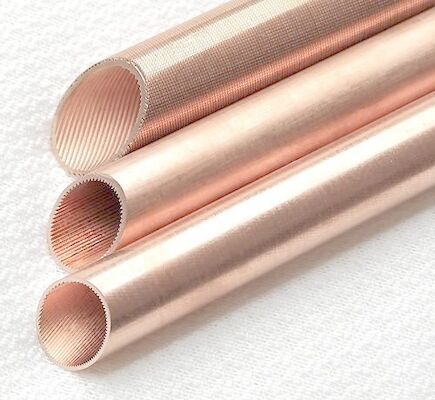

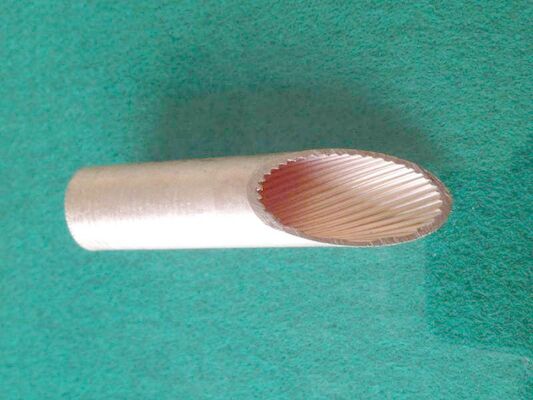

C12200 Inner Grooved Copper 5.0mm Heat Exchanger Tubes

Properti Dasar
Tempat Asal: Zhejiang
Nama merek: TORICH
Sertifikasi: ISO
Nomor Model: C12200
Properti Perdagangan
Jumlah Pesanan Minimum: 500 kg
Harga: USD 10 Per Kg
Ketentuan Pembayaran: L / C, D / A, D / P, T / T, Western Union, MoneyGram
Kemampuan Penyediaan: 50 Ton Per Bulan
Tag

tabung penukar panas

tabung baja karbon

C12200 Heat Exchanger Tubes
Ringkasan Produk
C12200 Tabung Tembaga Garing Dalam 1) Standar Dipenuhi: ASTM B-68, GB/T 20928 2) Kelas: C12200 3) Temperature: lembut menarik atau ringan lembut menarik 4) Unit Berat: 34kg -270 kg 5) Diameter luar: 5,0 mm - 16,00 mm 6) Diameter bagian dalam: 4,3 mm - 14,22 mm 7) Ketebalan dinding bagian bawah: 0,20 ...

Rincian produk

Menyoroti:

C12200 Heat Exchanger Tubes

,

TORICH Heat Exchanger Tubes

,

5
Deskripsi Produk

C12200 Tabung Tembaga Garing Dalam

1) Standar Dipenuhi: ASTM B-68, GB/T 20928

2) Kelas: C12200

3) Temperature: lembut menarik atau ringan lembut menarik

4) Unit Berat: 34kg -270 kg

5) Diameter luar: 5,0 mm - 16,00 mm

6) Diameter bagian dalam: 4,3 mm - 14,22 mm

7) Ketebalan dinding bagian bawah: 0,20 mm - 0,75 mm

8) Total ketebalan dinding: 0,35 mm - 0,83 mm

9) kedalaman alur sirip: 0,15 mm - 0,33 mm

OD

Inch ((mm)

BWT

Inch ((mm)

 Jumlah sirip

Tinggi sirip

(mm)

 Sudut Heliks

Berat badan

(kg/m)
(7,0) 0.330 60 0.203 12 0.0781
5/16 (7.94) 0.305 60 0.203 18 0.0804
3/8 (9.52) 0.305 60 0.203 18 0.0967
3/8 (9.52) 0.330 60 0.203 18 0.0989
3/8 (9.52) 0.356 60 0.203 18 0.1027
3/8 (9.52) 0.381 60 0.203 18 0.1205
3/8 (9.52) 0.406 60 0.203 18 0.1176
1/2 (12,7) 0.381 60 0.254 18 0.1622
1/2 (12,7) 0.406 60 0.254 18 0.1711
1/2 (12,7) 0.432 60 0.254 18 0.1792
1/2 (12,7) 0.456 60 0.254 18 0.1887
1/2 (12,7) 0.483 60 0.254 18 0.2064
5/8 (15.88) 0.498 75 0.305 23 0.2695
5/8 (15.88) 0.510 75 0.305 23 0.2695
5/8 (15.88) 0.510 75 0.305 25 0.3049
5/8 (15.88) 0.584 75 0.305 25 0.3240
5/8 (15.88) 0.635 60 0.305 27 0.3503
5/8 (15.88) 0.715 60 0.305 27 0.3726

Fitur:

1) Proof kebocoran

2) Bertahan lama

3) Desain alur yang akurat

4) Tahan korosi

5) Kekuatan metalurgi yang tinggi

6) Tahan suhu tinggi

7) Tahan tekanan tinggi

8) Sifat transfer panas yang sangat baik

9) Konduktivitas listrik yang baik, dll.

Aplikasi:

Alur spiral terus menerus atau diskontinu pada permukaan dalam tabung tembaga dapat meningkatkan area kontak, mengubah jenis aliran pendingin di tabung.Permukaan luar tabung tembaga juga dapat diproses dengan alur spiral bergelombang untuk memperluas jangkauan penggunaanIni cocok untuk penukar panas di AC rumah atau penguap kering di AC pusat.

Air conditioner

Penukar panas

Pendingin udara pusat evaporator kering

Radiator pipa panas dari produk elektronik

Peralatan surya

Satuan air pendingin sekrup pendingin air
