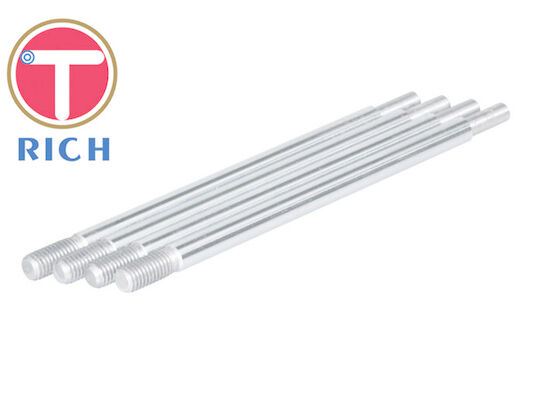

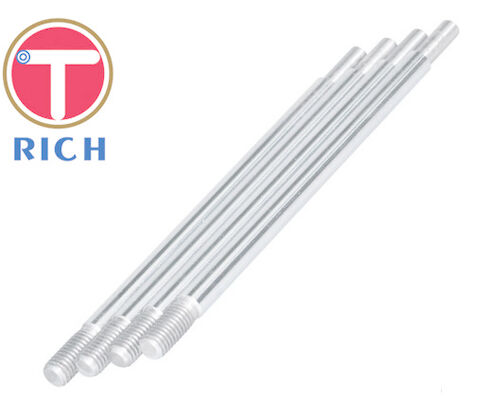

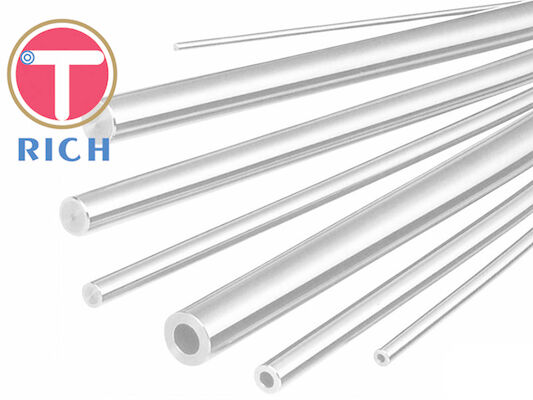

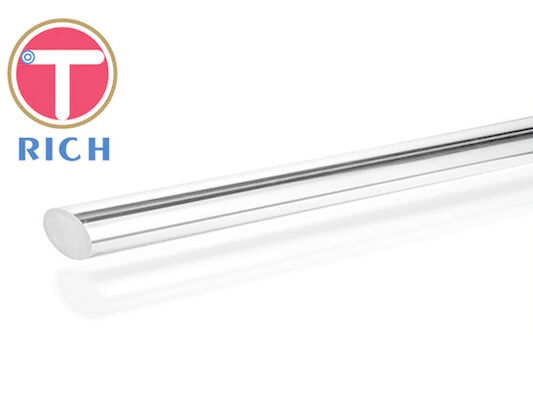

12mm CK45 Induksi Hardened Chromium Hydraulic Cylinder Tube
Properti Dasar
Tempat Asal:
ZHEJIANG CHINA
Nama merek:
TORICH
Sertifikasi:
ISO 9001
Nomor Model:
DIN CK45
Properti Perdagangan
Jumlah Pesanan Minimum:
1 TON
Harga:
USD 1500-2000 Per Ton
Ketentuan Pembayaran:
L / C, D / A, D / P, T / T, Western Union, MoneyGram
Kemampuan Penyediaan:
500 ton per Bulan
Ringkasan Produk
INDUKSI HIDROULIC CYLINDER KERAS KROMIUM PISTON batang Diameter luar:Ø 6mm-30mm Total panjang:100 mm -550 mm Bahan baja:45# DIN CK45/JIS 45C dan 35# DIN CK35/JIS 35C Ketebalan krom:10 ~ 25 μm Kekerasan krom:850 HV Min Ketidaksetaraan:Ra 0,2 Mikron Max Kejujuran:0.2/1000mm Kekuatan Hasil:Menurut ...
Rincian produk
Menyoroti:
Tabung Silinder Hidraulik 12mm
,Tabung Silinder Hidraulik Chromium Hardened
,Tabung Silinder Hidraulik CK45
Size:
12-300mm
Material:
20 #, 45 #, 40Cr, 46CrMo4 atau sesuai kebutuhan
Technique:
tenggelam / terkelupas dingin
Tolerance:
ISO f7
Chrome Layer Thickness:
15-30μm
Leeb Hardness:
20-60HRC
Application:
tabung silinder
Roughness:
Ra ≤0.2u
Straightness:
≤ 0,2 / 1000
Length:
maks 16m
Deskripsi Produk
INDUKSI HIDROULIC CYLINDER KERAS KROMIUM PISTON batang
Diameter luar:Ø 6mm-30mm
Total panjang:100 mm -550 mm
Bahan baja:45# DIN CK45/JIS 45C dan 35# DIN CK35/JIS 35C
Ketebalan krom:10 ~ 25 μm
Kekerasan krom:850 HV Min
Ketidaksetaraan:Ra 0,2 Mikron Max
Kejujuran:0.2/1000mm
Kekuatan Hasil:Menurut bahan baja dan kebutuhan pelanggan
Kekuatan tarik:Menurut bahan baja dan kebutuhan pelanggan
Perpanjangan:Menurut bahan baja
Tes lentur:Menurut kebutuhan pelanggan
Kondisi pasokan:
1. Berlapis Chrome keras
2. Induksi mengeras
3. Dehidrogenasi & Tempered
Deskripsi proses manufaktur utama:
1. Pengurangan bahan baku baja hidrolik
2. CNC Machining + Kerongkongan Machining
3. Induksi pengerasan
4. Plating Chrome
5. Dehidrogenasi dan Tempering
6. Polandia dan Superfinish Polandia
7. 100% Pemeriksaan
8Kothak Kerajinan dan Kemasan Kasus Kayu
