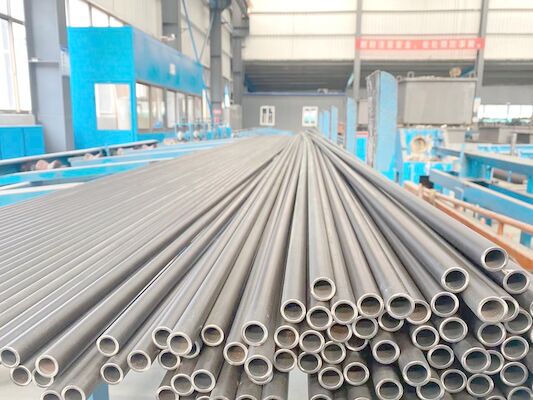

ASTM A179 Carbon Steel 1mm Heat Exchanger Tubes
Properti Dasar
Tempat Asal:
Zhejiang, Cina
Nama merek:
TORICH
Sertifikasi:
ISO9001,ISO14001,TS16949
Nomor Model:
SA179, SA192, SA210, SA213 T5, T11, T22
Properti Perdagangan
Jumlah Pesanan Minimum:
5 Ton
Harga:
800-1200 usd per ton
Ketentuan Pembayaran:
T / T, L / C, D / A, D / P, Western Union, MoneyGram
Kemampuan Penyediaan:
50.000 ton per tahun
Ringkasan Produk
ASTM A179 tabung penukar panas baja karbon Aplikasi: untuk Boiler, Superheater, pipa pipa uap dari boiler Jangkauan ukuran:OD:12.7-127mm W.T.:1-15mm L: sesuai dengan kebutuhan pelanggan Kelas baja dan komposisi kimia: Kelas C Mn P S Ya. A-1 ≤ 0.27 ≤ 0.93 ≤ 0.035 ≤ 0.035 ≥ 0.10 C ≤ 0.35 0.29-1.06 ≤ 0...
Rincian produk
Menyoroti:
Tabung Penukar Panas Baja Karbon
,Tabung Penukar Panas ASTM A179
,Tabung Penukar Panas 1mm
Product Name:
ASTM A179 Carbon Steel Heat Exchanger Tubes
Keyword:
Tabung Penukar Panas
Shape:
Bulat
Type:
Mulus
Material:
T5 T11, T12, A-1, C
Application:
untuk boiler, penukar panas, penggunaan Superheater
Brand:
UNTUK KAYA
Length:
Disesuaikan
OD:
12.7-127mm
WT:
1-15mm
Deskripsi Produk
ASTM A179 tabung penukar panas baja karbon
Aplikasi: untuk Boiler, Superheater, pipa pipa uap dari boiler
Jangkauan ukuran:OD:12.7-127mm W.T.:1-15mm L: sesuai dengan kebutuhan pelanggan
| Kelas baja dan komposisi kimia: | |||||
| Kelas | C | Mn | P | S | Ya. |
| A-1 | ≤ 0.27 | ≤ 0.93 | ≤ 0.035 | ≤ 0.035 | ≥ 0.10 |
| C | ≤ 0.35 | 0.29-1.06 | ≤ 0.035 | ≤ 0.035 | ≥ 0.10 |
Sifat mekanik:
| Kelas | Titik Yield Mpa ((ksi) | Kekuatan tarik Mpa ((ksi) | Perpanjangan |
| A-1 | ≥255 ((37) | ≥415 ((60) | ≥ 30% |
| C | ≥275 ((40) | ≥485 (70) | ≥ 30% |
| Toleransi untuk OD dan WT ((SA-450/SA-450M) | |||||
| OD dalam ((mm) | + | - | WT dalam mm) | + | - |
| <1''(25.4) | 0.10 | 0.10 | ≤1,1/2'(38.1) | 20% | 0 |
| 1'''1'1'1'25.4'38.1 | 0.15 | 0.15 | >1.1/2'(38.2) | 22% | 0 |
| > 1,1/2' ′ < 2' ′8 | 0.20 | 0.20 | |||
| 2' ′ < 2.1/2 ′ ((50.8 ′ 63.5) | 0.25 | 0.25 | |||
| 2.1/2''<3'(63.5'76.2) | 0.30 | 0.30 | |||
| 3''?? < 4' ((76.2 ️ 101.6) | 0.38 | 0.38 | |||
| 4' ′ < 7.1/2' ((101.6 ′ 190.5) | 0.38 | 0.64 | |||
| > 7.1/2 ′9′(190.5 ′228.6) | 0.38 | 1.14 | |||
Kondisi permukaan:
Penggorengan atau ledakan tembakan, Passivated, Phosphate Hitam.
Uji dan Pemeriksaan:
Tes perataan
Uji pembakaran
Tes Kekerasan
Uji listrik hidrostatik atau tidak merusak (Uji arus eddy dan uji ultrasonik)
Dokumen referensi:
Spesifikasi ASTM A450/A450M untuk persyaratan umum untuk tabung baja karbon, paduan ferit, dan paduan austenit
