ASTM A179 Tabung Penukar Panas Bersirip Longitudinal Dianil
Properti Dasar
Tempat Asal:
Zhejiang, Cina
Nama merek:
TORICH
Sertifikasi:
ISO9001, ISO14001, TS16949
Nomor Model:
ASTM A179
Properti Perdagangan
Jumlah Pesanan Minimum:
5 Ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L / C, D / A, D / P, T / T, Western Union, MoneyGram
Kemampuan Penyediaan:
2000 Ton per Tahun
Ringkasan Produk
TORICH ASTM A179 Longitudinal Fined Heat Exchanger dan Superheater Tube Tabung berbasis:ASTM A179 A192 A213 T5 T9 T11 Jenis sirip:Pinus Lengan Jenis sirip lainnya: Menurut bentuk sirip dan strukturnya Tabung berdaun persegi, tabung berdaun sprial, tabung berdaun longitudinal, tabung berdaun serpihan ...
Rincian produk
Menyoroti:
Tabung Bersirip Aluminium Longitudinal
,Tabung Penukar Panas Anil
,Tabung Penukar Panas Bersirip
Keyword:
Tabung bersirip
Standard:
ASTM A179
Material:
SA179 SA192 A106 GrB T5 T9 T11 dll
Production Method:
Fin Welded
Finish:
Anil
Length:
2-20m
Fin Material:
Aluminium, Paduan Tembaga, Baja Tahan Karat, Baja Karbon
Finned:
Sirip Longitudinal
Deskripsi Produk

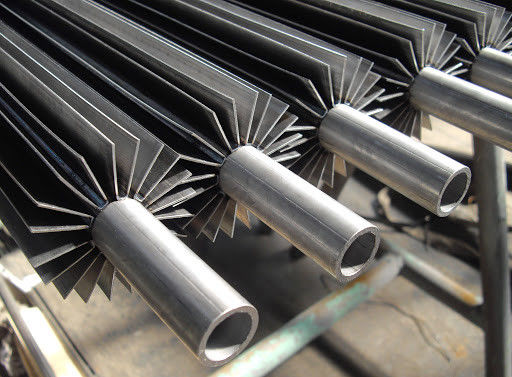

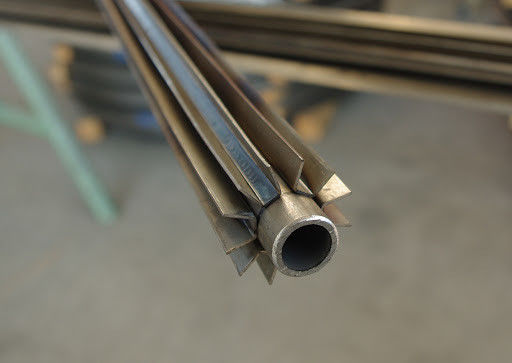

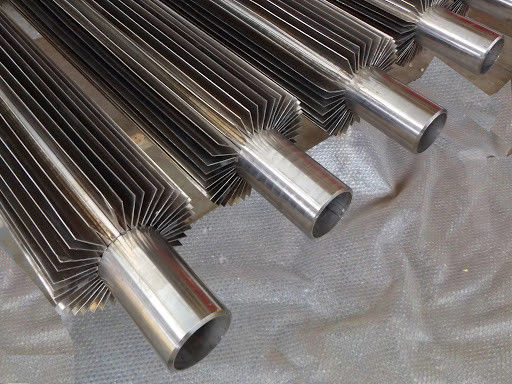

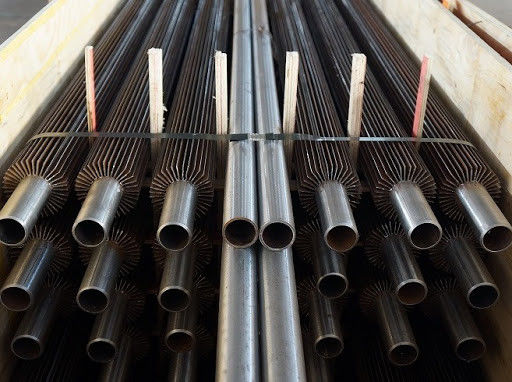

TORICH ASTM A179 Longitudinal Fined Heat Exchanger dan Superheater Tube
Tabung berbasis:ASTM A179 A192 A213 T5 T9 T11
Jenis sirip:Pinus Lengan
Jenis sirip lainnya:
| Menurut bentuk sirip dan strukturnya | Tabung berdaun persegi, tabung berdaun sprial, tabung berdaun longitudinal, tabung berdaun serpihan spiral, tabung berdaun dalam |
| Menurut bahan sirip | Tabung bergelombang logam tunggal, tabung bergelombang komposit bimetal |
| Menurut teknologi pengolahan | Tabung sirip yang diekstrusi, tabung sirip las, tabung sirip roll forming, tabung sirip set |
Bahan sirip:Baja karbon, baja tahan karat, aluminium, tembaga dll
Aplikasi: Boiler,Penukar panas, Superheater,Penghemat
Karakteristik kinerja Fin Tube:
1) Anti korosi
2) Anti-pakai
3) resistensi kontak yang lebih rendah
4) Stabilitas yang Lebih Tinggi
Tabung dengan sirip longitudinal luar: proses las frekuensi tinggi dan sirip pencetakan berbentuk U diadopsi.
Tabung memiliki karakteristik pas ketat, pengelasan yang kuat, tahan panas kontak kecil dan tidak ada deformasi
Rasio sirip dapat mencapai lebih dari 10.
Aplikasi:Dalam industri minyak bumi, kimia dan industri lainnya
