Tabung Bersirip Aluminium Spiral Berbentuk L Untuk Penukar Panas Pendingin Udara
Rincian produk
Tabung Bersirip Aluminium Spiral
,Tabung Bersirip Aluminium Anil
,Tabung Penukar Panas Berbentuk L

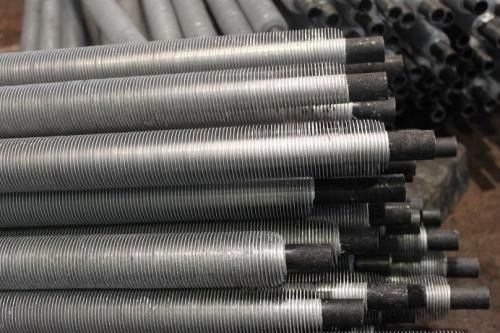

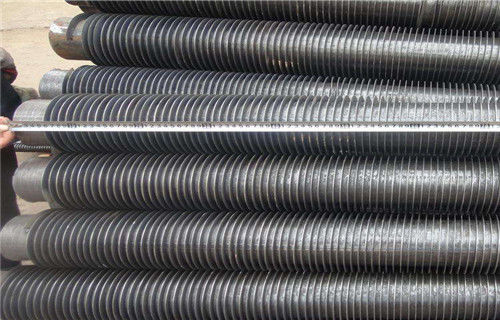

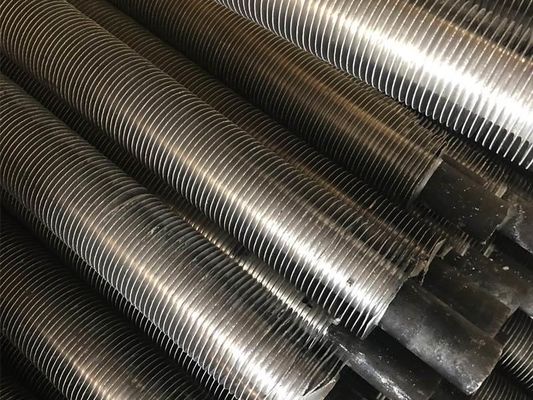

TORICH L berbentuk spiral Aluminium Fined Tube untuk Air Cooler Panas Exchanger
TORICH L berbentuk spiral aluminium Fin tabung untuk pendingin udara
| Ukuran | Diameter φ12-φ87mm, Panjang 100mm-20m
|
| Jenis sirip | L Fin, LL Fin, KL Fin, tipe G
|
| Tes | Uji hidraulik, uji pneumatik, uji tarik, uji kinerja disipasi panas, analisis spektral
|
L Fin:
Strip berbentuk L memberikan tekanan kontak optimal dari kaki sirip ke tabung dasar sehingga meningkatkan efisiensi transfer panas.
Hal ini juga memberikan perlindungan korosi yang cukup untuk tabung dasar.
* Suhu kerja maksimum: 270 ° F ((130 ° C)
* Bahan sirip: Aluminium, Tembaga
LL Fin:
Sama seperti L Fin kecuali kaki sirip tumpang tindih memberikan perlindungan korosi yang lebih.
sebuah alternatif untuk lingkungan korosif jenis sirip yang lebih mahal.
* Suhu Kerja Maksimal:330 ° F ((165 ° C)
* Bahan sirip: Aluminium, Tembaga
KL Fin:
Sama seperti L Fin kecuali bahwa tabung dasar terkerut sebelum aplikasi kaki sirip.
Setelah aplikasi, kaki sirip dikorek ke dalam keriting yang sesuai pada tabung dasar sehingga memperkuat ikatan
antara sirip dan tabung, menghasilkan karakteristik transfer payudara yang lebih baik.
* Suhu kerja maksimum: 500 °F ((260 °C)
* Bahan sirip: Aluminium, tembaga
-
