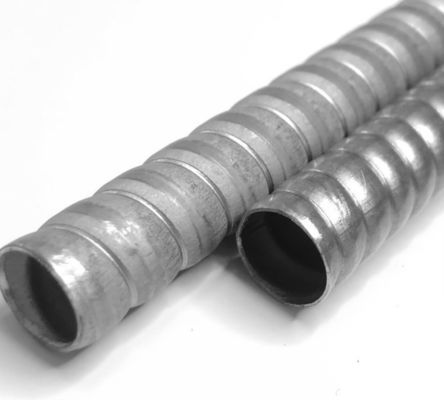

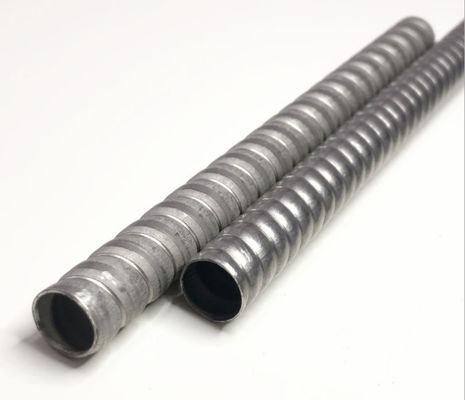

ISO 9001 Spiral Corrugated TA1 TA2 Titanium Alloy Tube
Rincian produk
TA1 Titanium Alloy Tube
,Spiral Corrugated Titanium Alloy Tube
,TA2 Titanium Alloy Pipe
TA1 TA2 Titanium Alloy Spiral Twist Coil Tube Efisiensi Tinggi Spiral Corrugate Titanium Tube
Standar Eksekutif:standar nasional titanium
Aplikasi produk:
1.pipa las titanium dinding tipis untuk penukar panas, kondensator dan evaporator,
2.Pipa las titanium cairan industri, pipa tahan korosi
3.Pipa pendukung untuk berbagai peralatan industri dan kapal bertekanan, digunakan dalam tenaga listrik, industri kimia, pemanfaatan air laut dan teknik laut, aerospace, metalurgi, kedokteran,industri makanan dan industri lainnya.
Bentuk:
Twist, Spiral, Coil
Jangkauan spesifikasi:
Φ ((8.0-25.4) mm Χ Τ (0.5-2.0) mm
Kelas material:
Tabung titanium dan paduan titanium:
(TA1, TA2, TA3, ta8, ta8-1, ta9, ta9-1, TA10, gr.1, gr.2, gr.7, gr.12, gr.16, dll.)
Pipa austenit baja tahan karat:
SUS304, SUS316L, 321, 904L, dll.
Pipa stainless steel ferritik:
409,409L,439L,SUS445J2
pipa stainless steel dupleks:
2205,2507
Karakteristik tabung efisiensi tinggi
1Luas transfer panas antara cairan dan dinding meningkat, dan total transfer panas pipa meningkat.
2. Meningkatkan tingkat turbulensi cairan
1) Meningkatkan efisiensi kontak antara cairan dan dinding
2) Menghancurkan perkembangan lapisan batas termal cairan dan meningkatkan kapasitas transfer panas peti mati
3) Mengurangi resistensi molekul uap untuk menyebar ke permukaan film malam.
3. Meningkatkan ketahanan air
1) Hal ini dapat mengurangi ketebalan film air dan meningkatkan area transfer panas
2) Pada saat yang sama, waktu kontak antara cairan dan dinding ditingkatkan dalam kisaran tertentu untuk meningkatkan transfer panas.
