Koefisien Perpindahan Panas Tinggi Extruded Od10mm Heat Exchanger Tubes
Rincian produk
tabung penukar panas od10mm
,tabung penukar panas torich
,tabung sirip ekstrusi od10mm

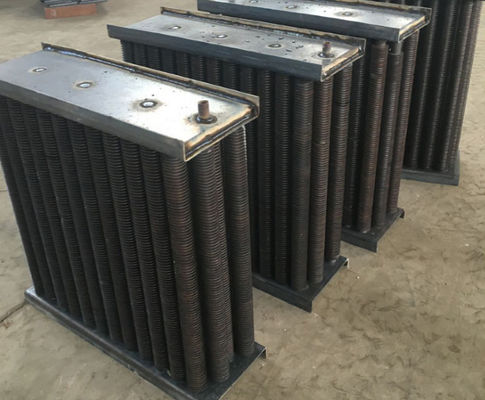

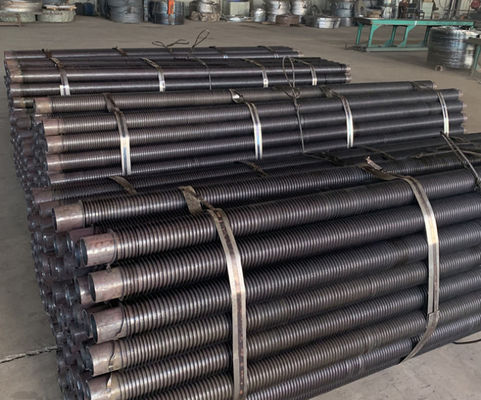

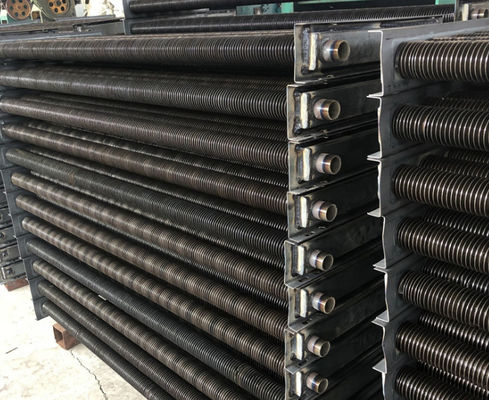

Koefisien Transfer Panas Tinggi Tabung Fined Extruded dan Tabung Penukar Panas Radiator Fin

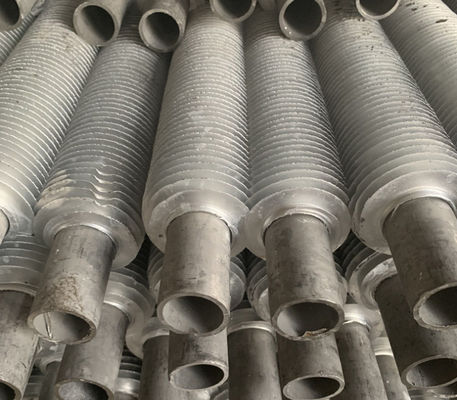

Tabung berdaun mengambil bentuk tabung dasar yang menutupi tabung aluminium,
(pipa dasar bisa baja karbon, baja tahan karat, tembaga) melalui ekstrusi mesin untuk membentuk sirip,
dasar siripnya dekat dengan dinding luar tabung, dengan koefisien transfer panas yang tinggi dan kinerja transfer panas yang sangat baik.
Rincian:
| Suhu kerja maksimum | 545 |
| Bahan sirip | Aluminium |
| Diameter tabung dasar | 10mm-51mm |
| Ketebalan dinding tabung dasar | 1.65mm-3.0mm |
| Ketebalan sirip | 0.3mm-1.2mm |
| Pin Pitch | 2.0mm-15.0mm |
| Tinggi sirip | 5mm-16mm |
| Bahan tabung dasar | Tabung baja karbon, tabung baja tahan karat, tabung paduan |
| Bahan sirip | Aluminium |
Keuntungan dari tabung sirip adalah bahwa:
ketika sumber panas atau sumber dingin cair, seperti uap, air, minyak termal.
Ketika gas perlu dipanaskan atau didinginkan oleh gas, area transfer panas yang lebih besar diperlukan.
Luas tabung dengan sirip beberapa kali atau bahkan 10 kali dari tabung cahaya biasa.
Ini tidak hanya meningkatkan efisiensi transfer panas peralatan, tetapi juga sangat mengurangi biaya transfer panas.
-
