Torich Cold Drawn Tube Astm A179 / Asme Sa179 Sa192
Rincian produk
astm a179 tabung ditarik dingin
,tabung ditarik dingin torich
,asme sa179 pipa ditarik dingin
ASTM A179 / ASME SA179 SA192 Tabung dan Pipa Bahan Boiler Tekanan Tinggi
Detil cepat:
| Asal usul | Cina |
| Nama merek | Torich |
| Sertifikat | ISO9001 TS16949 |
| Bahan | ASTM A179 ASME SA179 SA192 ST52.3 St37..4 dll |
| Nama produk | ASTM A179 / ASME SA179 SA192 Tabung dan Pipa Bahan Boiler Tekanan Tinggi |
| Kapasitas | Menekuk |
Pengantar dasar
Ukuran sa 179 tabung penukar panas/kondensor:OD:1/4" (6.25mm) sampai 8" (203mm), WT 0.02" (0.5mm) sampai 0.5" ((12mm)
Metode produksi ASTM A179 Heat Exchanger Tubing:Menggambar dingin
Bahan:ASTM A179 ASME SA179 SA192 ST52.3 St37..4 dll
Bentuknya:Omega Bulat dll
Deskripsi Produksi
ASTM A179 / ASME SA179SA 192 Komposisi kimia sebagai berikut:
Kelas baja dan komposisi kimia:
| C | 0.06-0.18 |
| Mn | 0.27-0.63 |
| P | ≤ 0.035 |
| S | ≤ 0.035 |
| Ya. | ≤ 0.25 |
ASTM A179 / ASME SA179 SA192 Tabung baja penukarSifat Mekanis
Jarak tegangan: min ksi[Mpa] 47[325]
Titik Hasil: min ksi[Mpa] 26[180]
Elongasi: ≥35%
Boiler
Kapal Tekanan
Penghemat
Superheater
Penukar Panas
Kondensator
Fitur:
1.100% PMI, Spektrokimia dan Tes Analisis untuk bahan baku

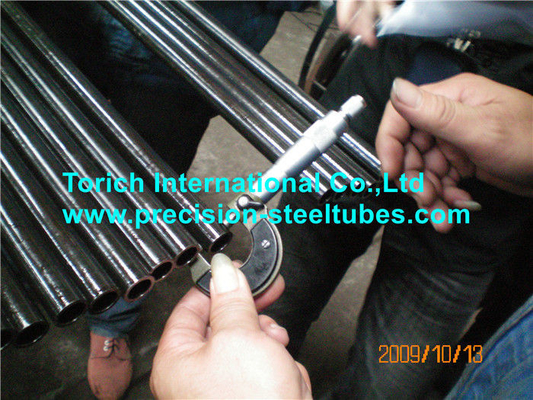

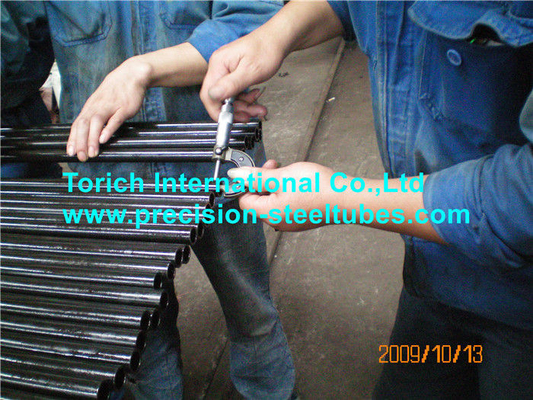

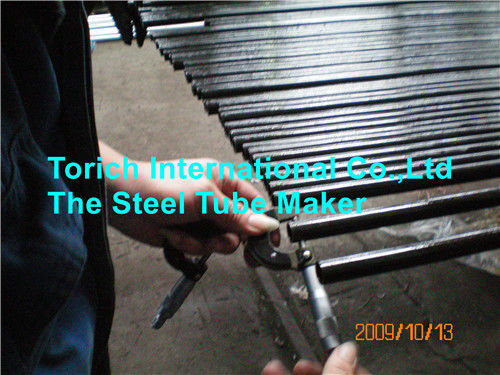

2.100% Dimensi & Pemeriksaan Visual
3. Uji Sifat Mekanis Termasuk Uji Ketegangan,Uji Kebakaran (Untuk Tabung/Tabung Tanpa Sambungan) / Uji Flange (Untuk Tabung & Tabung Las), Uji Kekerasan,Uji Perataan Terbalik
4.100% pengujian hidrostatik atau 100% pengujian non-destruktif (ET atau UT)
5.Pengujian radiografi untuk pipa las (harus sesuai dengan spesifikasi,atau harus seperti yang disepakati antara pembeli dan penjual)
6.Pengujian tegak lurus (opsional)
7.Pengujian kasar (opsional)
8.Pengujian Korosi Intergranular (opsional)
9.Pengujian dampak (opsional)
10Penentuan ukuran biji-bijian (opsional)
Pameran produk:
Kemasan:Kasus kayu atau sesuai dengan kebutuhan klien
Pengiriman:Pengangkutan darat/pengangkutan laut
