Tabung Penukar Panas Cd Tekanan Tinggi Seamless Rifled 8mm Od
Properti Dasar
Tempat Asal:
Zhejiang, CN
Nama merek:
TORICH
Sertifikasi:
ISO 9001,ISO14001,TS16949
Nomor Model:
ASTM A210 KELAS C
Properti Perdagangan
Jumlah Pesanan Minimum:
3 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Kemampuan Penyediaan:
50000 TON PER TAHUN
Ringkasan Produk
Tabung penukar panas pipa tanpa jahitan bertekanan tinggi Nama produk: Pipa boiler tanpa jahitan bertulang tekanan tinggi/pipa boiler berisang Bahan Baja Karbon,Baja paduan Od: 21,3-762mm: Standar DIN GB ISO JIS BA ANSI Kelas: 20G,20MnG,15CrMoG,SA210Gr.A1, SA210Gr.C, SA213T12, ASTM A335P11 P91,P22...
Rincian produk
Menyoroti:
8mm tabung penukar panas
,tabung penukar panas cds
,tabung 8mm dari cds
Product Name:
Tabung Penukar Panas Pipa Seamless Rifled Tekanan Tinggi
Keyword:
Pipa Bersenapan
Shape:
Bulat
Application:
Untuk Boiler Dan Penukar Panas
Material:
ASTM A210 KELAS C
Surface:
disesuaikan
Length:
MAKSIMUM 12000mm
Tube OD:
8-400mm
Fin Thickness:
5-100mm
Brand:
UNTUK KAYA
Deskripsi Produk
Tabung penukar panas pipa tanpa jahitan bertekanan tinggi
Nama produk: Pipa boiler tanpa jahitan bertulang tekanan tinggi/pipa boiler berisang
Bahan Baja Karbon,Baja paduan
Od: 21,3-762mm: Standar
DIN GB ISO JIS BA ANSI
Kelas: 20G,20MnG,15CrMoG,SA210Gr.A1, SA210Gr.C, SA213T12, ASTM A335P11 P91,P22,16Mo3.......
Ketebalan dinding: 2,77-25,4 mm
Panjang: 5.8/6/11.8/12mtr sesuai kebutuhan atau panjang acak
No benang: 4 tulang / 6 tulang / 8 tulang / 12 tulang...
Pengolahan permukaan: Lukisan hitam, minyak atau galvanis
Istilah pembayaran; 30% TT advance
Istilah harga: FOB, CIF, Cnf, Cfr
Waktu pengiriman: sesuai pesanan

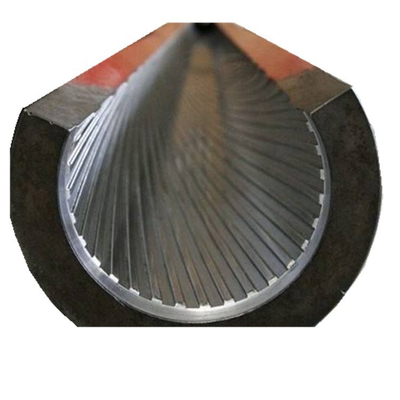

Boiler bertekanan tinggi pipa rifled adalah salah satu jenis endofragma proses garis spiral pipa baja tanpa jahitan. aplikasi utama di pada kapasitas boiler utilitas dinding pendingin air.Biasanya dengan tabung fluoresensi yang menggunakan perbandingan, dapat mempertahankan kondisi mendidih nuklir di bawah kondisi operasi beban demam tinggi, sehingga menghindari mengirim kondisi film mendidih, mencegah pipa untuk terbakar,memperpanjang umur pipa.
Parameter Kimia dan Mekanika
| Kelas | C | Mn | Ya. | Cr | Mo | S | P |
| 20G | 0.17 ~ 0.23 | 0.35 ~ 0.65 | 0.17 ~ 0.37 | --- | --- | ≤ 0.020 | ≤ 0.025 |
| 20MnG | 0.17 ~ 0.23 | 0.70 ~ 1.00 | 0.17 ~ 0.37 | --- | --- | ≤ 0.020 | ≤ 0.025 |
| 25Mng | 0.22 ~ 0.29 | 0.70 ~ 1.00 | 0.17 ~ 0.37 | --- | --- | ≤ 0.020 | ≤ 0.025 |
| 12CrMoG | 0.08 ~ 0.15 | 0.40 ~ 0.70 | 0.17 ~ 0.37 | 0.40 ~ 0.70 | 0.40 ~ 0.55 | ≤ 0.020 | ≤ 0.025 |
| 15CrMoG | 0.12 ~ 0.18 | 0.40 ~ 0.70 | 0.17 ~ 0.37 | 0.80 ~ 1.10 | 0.40 ~ 0.55 | ≤ 0.020 | ≤ 0.025 |
| SA-210A1 | ≤ 0.27 | ≤ 0.93 | ≥ 0.10 | --- | --- | ≤ 0.035 | ≤ 0.035 |
| SA-210C | ≤ 0.35 | 0.29 ~ 1.06 | ≥ 0.10 | --- | --- | ≤ 0.035 | ≤ 0.035 |
| SA-213T2 | 0.10 ~ 0.20 | 0.30 ~ 0.61 | 0.10 ~ 0.30 | 0.50 ~ 0.81 | 0.44 ~ 0.65 | ≤ 0.025 | ≤ 0.025 |
| SA-213T12 | 0.05 ~ 0.15 | 0.30 ~ 0.61 | ≤ 0.50 | 0.80 ~ 1.25 | 0.44 ~ 0.65 | ≤ 0.025 | ≤ 0.025 |
| Kelas | T ((MPa) | Y ((MPa) | E ((%) | Kekerasan |
| 20G | 410 ~ 550 | 245 | ≥ 24 | --- |
| 20MnG | ≥415 | ≥ 240 | ≥ 22 | --- |
| 25Mng | ≥ 485 | ≥ 275 | ≥ 20 | --- |
| 12CrMoG | 410 ~ 560 | ≥205 | ≥ 21 | --- |
| 15CrMoG | 440 ~ 640 | ≥235 | ≥ 21 | --- |
| SA-210C | ≥415 | ≥255 | ≥ 30 | ≤143HBW |
| SA-210A1 | ≥ 485 | ≥ 275 | ≥ 30 | ≤ 179HBW |
| SA-213T2 | ≥415 | ≥205 | ≥ 30 | ≤163HBW |
| SA-213T12 | ≥415 | ≥ 220 | ≥ 30 | ≤163HBW |
