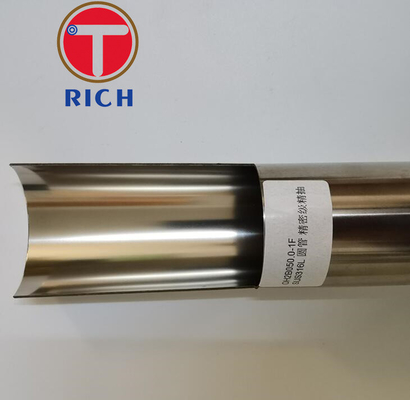

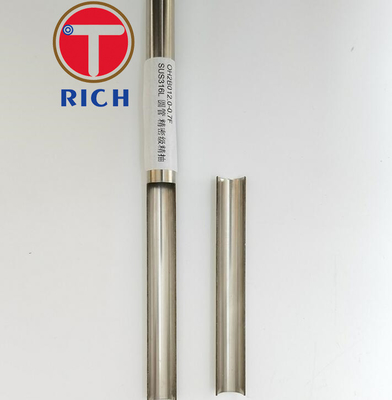

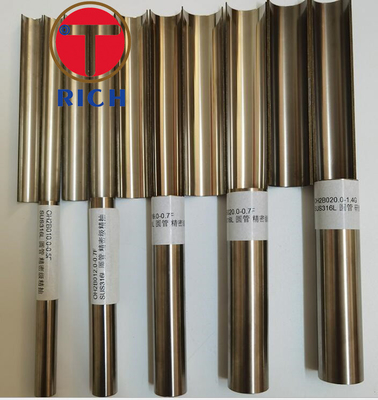

Tabung Silinder Hidrolik Pneumatik 304 Stainless Steel
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO 9001
Nomor Model:
304
Properti Perdagangan
Jumlah Pesanan Minimum:
300kgs
Harga:
3.5-6.0/kg
Ketentuan Pembayaran:
L/C, T/T
Kemampuan Penyediaan:
20000 ton per tahun
Ringkasan Produk
304 pipa tabung pneumatik pipa stainless steel Tipe:Tabung Silinder Hidraulik Detil cepat: Asal usul Cina Nama merek Torich Sertifikat ISO9001 TS16949 Bahan 304,316,AISI 310 dll Nama produk 304 pipa tabung pneumatik pipa stainless steel Kapasitas Pemotongan polishing grinding Pengantar dasar Metode ...
Rincian produk
Menyoroti:
Tabung Silinder Hidrolik 304 SS
,Tabung Silinder Hidrolik Pneumatik
,Pipa Silinder Hidrolik 304 SS
Material:
304
Production Method:
Digambar dingin + diasah
Length:
3m
Alloy Or Not:
YA
Technique:
Ditarik Dingin
Thickness:
2 - 70 mm
Standard:
ASTM
Outer Diameter(Round):
30 - 250 mm
Application:
Pipa Hidrolik
Deskripsi Produk
304 pipa tabung pneumatik pipa stainless steel
Tipe:Tabung Silinder Hidraulik
Detil cepat:
| Asal usul | Cina |
| Nama merek | Torich |
| Sertifikat | ISO9001 TS16949 |
| Bahan | 304,316,AISI 310 dll |
| Nama produk | 304 pipa tabung pneumatik pipa stainless steel |
| Kapasitas | Pemotongan polishing grinding |
Pengantar dasar
Metode produksi:Menggambar dingin tanpa jahitan
I.D.: 40-400mmW.T.: ≥5mm
Teknik: Menggambar Dingin
Bahan 304 316 ekt stainless steel.
Tempat Asal: Zhejiang, Cina (Daratan)
Bahan:
Kelas baja:
| Ferrit | Austenit | Duplex | Super Duplex | Ni-Alloy | Titanium |
| TP410 TP405 S44400 S44660 TP430 | TP304/304L/TP304H TP316/316L/TP316H TP316Ti TP317/317L TP321/TP321H TP347/TP347H TP310S/TP310H N08904/904L | S31803 S32205 S32304 S31500 | S32750 S32760 | C276 MONEL400 HASTELLOY B HASTELLOY 22 N06600 N06625 no. 6690 N08020 N08800 N08810 N08811 N08825
| Gr.2 |
Tabung dari paduan lain dan kelas baja dapat diproduksi atas persetujuan.
Apa yang bisa kita lakukan:
Penarik dingin
Aplikasi:
Silinder pneumatik
Fitur:
1. Keruwetan luar ≤0,4μm bagian dalam ≤0,8μm
2- Konsentrisitas 0.1
3. lurus≤0,3mm/1000mm
4Kekuatan tarik ≥ 500MPa Batas elastis Rp0.2 ≥ 200MPa
Kemasan:Kasus kayu atau sesuai dengan kebutuhan klien
Pengiriman:Pengangkutan darat/pengangkutan laut
