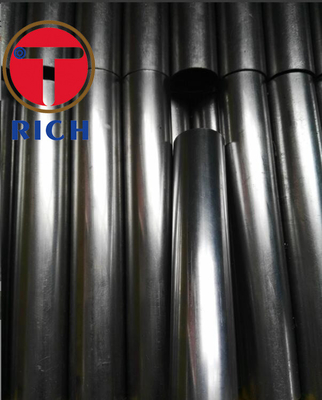

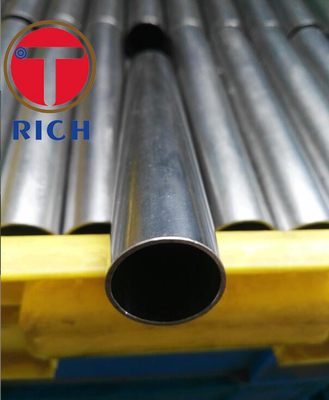

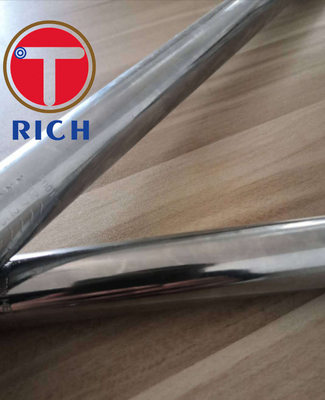

ASTM - A524 Pipa Baja Karbon Mulus Suhu Lebih Rendah Atmosfer Untuk Suku Cadang Mobil
Properti Dasar
Tempat Asal:
CINA
Nama merek:
Torich
Sertifikasi:
IS09001 ISO14001 TS16949
Nomor Model:
ASTM-A524
Properti Perdagangan
Jumlah Pesanan Minimum:
1 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, T/T
Kemampuan Penyediaan:
5000 ton per tahun
Ringkasan Produk
Spesifikasi standar ASTM-A524 untuk pipa baja karbon tanpa jahitan untuk suhu atmosfer dan suhu rendah untuk suku cadang mobil Pipa baja sesuai dengan standar ASTM-A524 Amerika. Teknologi Eropa dapat secara efektif mengontrol toleransi dimensi pipa baja ber dinding tebal dengan diameter kecil. ...
Rincian produk
Menyoroti:
Pipa Baja Karbon Atmosfer
,Pipa Baja Karbon Mulus A524
,Pipa Hidrolik Seamless Suhu Rendah
Alloy Or Not:
Non-Paduan
Technique:
Ditarik Dingin
Thickness:
0,1 - 10 mm
Outer Diameter(Round):
4 - 50 mm
standard2:
ASTM-A524
Special Pipe:
Tabung mulus
Product Name:
ASTM-A524Spesifikasi Standar Untuk Pipa Baja Karbon Seamless
Section Shape:
Bulat
Deskripsi Produk
Spesifikasi standar ASTM-A524 untuk pipa baja karbon tanpa jahitan untuk suhu atmosfer dan suhu rendah untuk suku cadang mobil
Pipa baja sesuai dengan standar ASTM-A524 Amerika.
Teknologi Eropa dapat secara efektif mengontrol toleransi dimensi pipa baja ber dinding tebal dengan diameter kecil.
Toleransi diameter dalam dan luar dapat dikontrol dalam 0,05mm, dan toleransi ketebalan dinding dapat
Bagian dengan presisi tinggi dan persyaratan, bagian mobil, dll.
Tabung baja karbon tanpa jahitan sesuai dengan standar ASTM A524
Komposisi kimia ASTM A524
| Elemen | % |
| C | 0.21 |
| Mn | 0.9-1.35 |
| P | 0.035 maksimal |
| S | 0.035max |
| Ya. | 0.1-0.4 |
Sifat mekanik
| Persyaratan tegangan | Ketebalan dinding | |
| Kekuatan tarik Mpa | Kelas I 0,375 inci (9,52 mm) dan di bawah | Kelas II,lebih dari 0,375 inci (9,52mm) |
| Kekuatan output min Mpa | 414-586Mpa | 380-550Mpa
|
| Perpanjangan dalam 2 inci atau 50mm | 30 | 25 |
ASTM A524 Kelas 1 & 2(Spesifikasi standar untuk pipa baja karbon tanpa jahitan untuk suhu atmosfer dan suhu rendah)
Jangkauan ukuran:1/8 sampai 26
Jadwal:10,20, 30, 40,60, Standard (STD), Extra Heavy (XH), 80, 100, 120, 140, 160, XXH & lebih berat
Kelas:ASTM A524 kelas 1, ASTM A524 kelas 2
