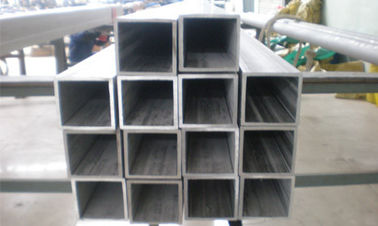

Pipa Baja Khusus Persegi Panjang, Tabung Logam Persegi Untuk Mesin Pertanian

Properti Dasar
Tempat Asal: Cina
Nama merek: Torich
Sertifikasi: ISO 9001:2008 , TS16949
Nomor Model: Tabung logam persegi
Properti Perdagangan
Jumlah Pesanan Minimum: 5MT
Harga: Dapat dinegosiasikan
Ketentuan Pembayaran: L/C, T/T
Kemampuan Penyediaan: 7000MT / Bulan
Ringkasan Produk
Metal Square Tubing, pipa baja khusus Standar: ASTM A500 Metal Square Tubing Tabung struktural karbon las dan tanpa jahitan yang dibentuk dingin dalam bentuk bulat dan khusus Aplikasi: untuk konstruksi kereta api, mesin pertanian dan bangunan dll Jangkauan ukuran: OD tabung persegi. :20-20 sampai ...

Rincian produk

Menyoroti:

Alloy Steel Seamless Pipe

,

structural steel square tubing

Dimension:: 20-20 hingga 500-500mm * 1-24mm * 12000mm
Application:: Untuk konstruksi kereta api, mesin pertanian, dan bangunan dll
Product Name:: Pipa Baja Khusus
Grade:: GradeA, GradeB, GradeC, GradeD
Standard:: ASTM A500
Section Shape:: Kotak, Kotak
Deskripsi Produk

Metal Square Tubing, pipa baja khusus

Standar: ASTM A500 Metal Square Tubing
Tabung struktural karbon las dan tanpa jahitan yang dibentuk dingin dalam bentuk bulat dan khusus

Aplikasi: untuk konstruksi kereta api, mesin pertanian dan bangunan dll

Jangkauan ukuran:
OD tabung persegi. :20-20 sampai 500-500 W.T.:1-24mm L:max12000mm
OD tabung persegi panjang. :20-30 sampai 400-600 W.T.:1-24mm L:max12000mm

Pengembalian Kimia
Elemen Kelas A, b dan D Kelas C
Analisis Panas Analisis Produk Analisis Panas Analisis Produk
Karbon, maksimal 0.26 0.3 0.23 0.27
Mangan, maksimal 1.35 1.40 1.35 1.4
Fosfor, maksimal 0.035 0.045 0.035 0.045
Sulfur, maksimal. 0.035 0.045 0.035 0.045
Tembaga, Min. 0.2 0.18 0.2 0.18

Persyaratan tegangan
Tabung Struktural Bulat
Kelas A Kelas B Kelas C Kelas D
Kekuatan tegangan,min,psi ((Mpa) 45 (310) 58 ((400) 62 ((425) 58 ((400)
Kekuatan output,min,psi ((Mpa) 33 ((230) 42(290) 46 ((315) 36 ((250)
Elongasi dalam 2 in. ((50mm) min,% 25 23 21 23
Tabung Struktural berbentuk
Kelas A Kelas B Kelas C Kelas D
Kekuatan tegangan,min,psi ((Mpa) 45 (310) 58 ((400) 62 ((425) 58
Kekuatan output,min,psi ((Mpa) 39(270) 46 ((315) 50 ((315) 36 ((250)
Elongasi dalam 2 in. ((50mm) min,% 25 23 21 23
