ISO 9001: 2008 Pipa Baja Khusus Dingin, Tabung Baja Karbon Dilas
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO 9001:2008 , TS16949 , KR , RINA
Properti Perdagangan
Jumlah Pesanan Minimum:
5MT
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, T/T
Kemampuan Penyediaan:
7000MT / Bulan
Ringkasan Produk
Pipa persegi baja, pipa khusus baja. Standar: ASTM A500 Steel Square Tubes-Steel Square Pipes Tabung struktural karbon las dan tanpa jahitan yang dibentuk dingin dalam bentuk bulat dan bulat Aplikasi:untuk pembangunan jembatan, bangunan, dan untuk tujuan struktural umum Jangkauan ukuran: OD tabung ...
Rincian produk
Menyoroti:
Alloy Steel Seamless Pipe
,structural steel square tubing
Dimension::
20-20 hingga 500-500mm * 1-24mm * 12000
Application::
Untuk konstruksi jembatan, dan bangunan, dan untuk keperluan strcutrual umum
Standard::
ASTM A500
Section Shape::
Kotak, Kotak
Deskripsi Produk

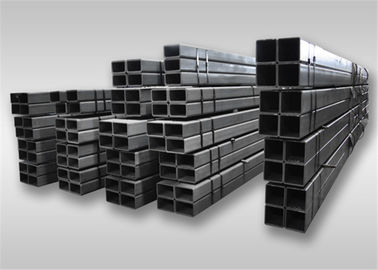

Pipa persegi baja, pipa khusus baja.
Standar: ASTM A500 Steel Square Tubes-Steel Square Pipes
Tabung struktural karbon las dan tanpa jahitan yang dibentuk dingin dalam bentuk bulat dan bulat
Aplikasi:untuk pembangunan jembatan, bangunan, dan untuk tujuan struktural umum
Jangkauan ukuran:
OD tabung persegi. :20-20 sampai 500-500mm W.T.:1-24mm L:max12000mm
OD tabung persegi panjang. :20-30 sampai 400-600mm W.T.:1-24mm L:max12000mm
| Persyaratan tegangan | ||||
| Tabung Struktural Bulat | ||||
| Kelas A | Kelas B | Kelas C | Kelas D | |
| Kekuatan tegangan,min,psi ((Mpa) | 45 (310) | 58 ((400) | 62 ((425) | 58 ((400) |
| Kekuatan output,min,psi ((Mpa) | 33 ((230) | 42(290) | 46 ((315) | 36 ((250) |
| Elongasi dalam 2 in. ((50mm) min,% | 25 | 23 | 21 | 23 |
| Tabung Struktural berbentuk | ||||
| Kelas A | Kelas B | Kelas C | Kelas D | |
| Kekuatan tegangan,min,psi ((Mpa) | 45 (310) | 58 ((400) | 62 ((425) | 58 |
| Kekuatan output,min,psi ((Mpa) | 39(270) | 46 ((315) | 50 ((315) | 36 ((250) |
| Elongasi dalam 2 in. ((50mm) min,% | 25 | 23 | 21 | 23 |
