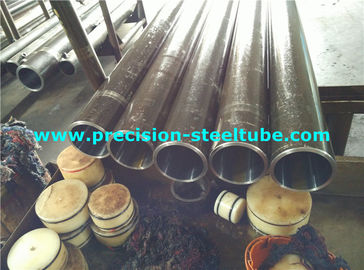

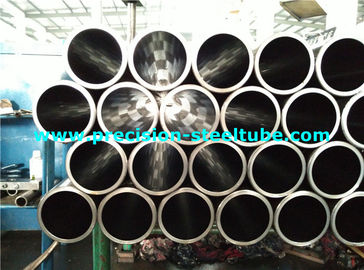

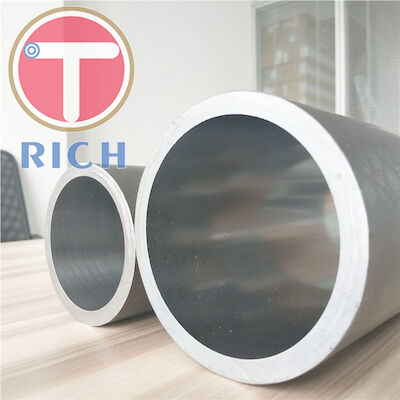

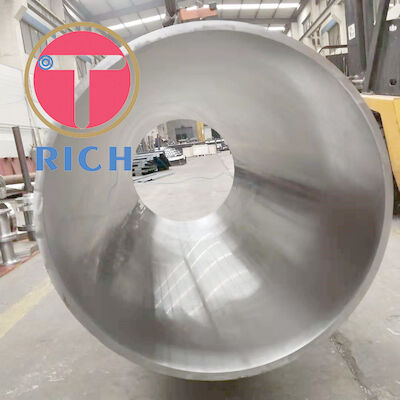

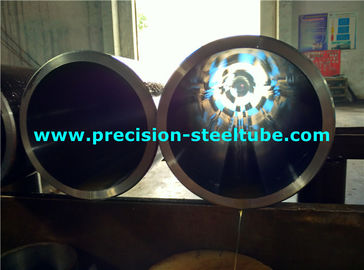

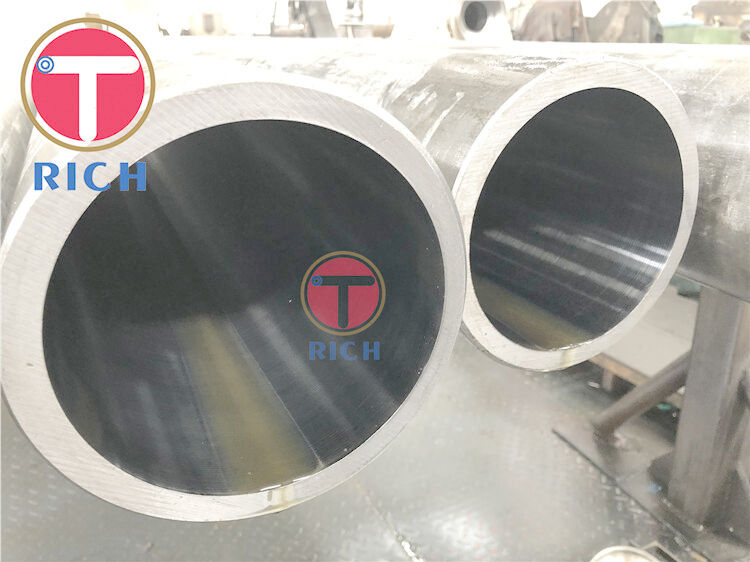

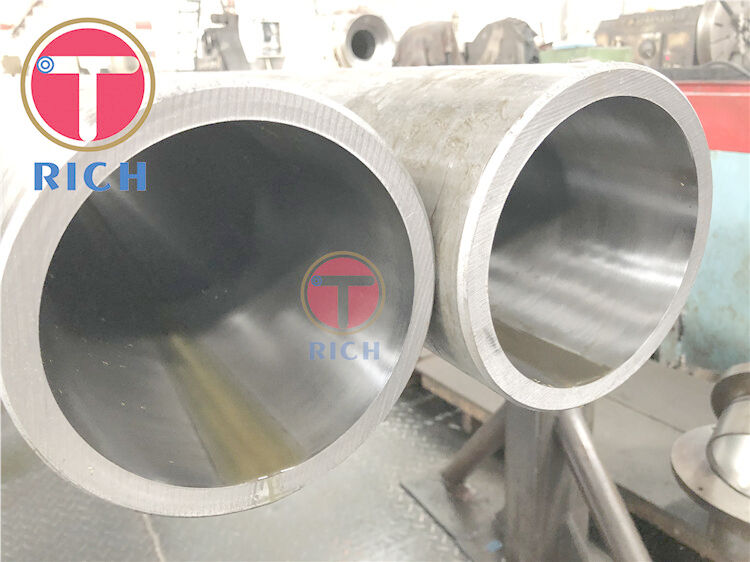

Tabung Teleskopik Silinder Tahan Lama Cold Drawn Seamless Tube OD 120-400mm
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO 9001-2008 ISO14001 TS16949 DNV
Nomor Model:
GB / T3639 、 GB / T8713 、 EN10305-1: 2002 、 EN10305-2: 2002 、 ASTM A519-2006 、 ASTM A513-2007 、 GB /
Properti Perdagangan
Jumlah Pesanan Minimum:
5MT
Harga:
USD1200-1500 Per ton
Ketentuan Pembayaran:
L/C, T/T
Kemampuan Penyediaan:
6000MT/Month
Ringkasan Produk
Silinder Teleskopik tahan lama tabung tanpa jahitan yang ditarik dingin OD 40-400mm Bahan:20#,45#,Q345B,Q345D,25Mn,27SiMn,E355 Tabung Silinder Pneumatik Tabung silinder hidrolik ID mm OD mm Ketebalan (mm) Unit berat(kg/m) ID mm OD mm Ketebalan (mm) Unit berat(kg/m) 90 100 5 11.71 50 60 5 6.78 50 63 ...
Rincian produk
Menyoroti:
diasah hidrolik tabung silinder
,Hidrolik silinder pipa
Type::
Tabung Silinder Hidrolik
Material::
20#、45#、Q345B、Q345D、25Mn、27SiMn、E355
O.D.:
40-400mm
W.T.:
5mm
Technique::
Undian Dingin
Alloy Or Not::
Non-paduan
Length:
Hingga 12000mm sesuai dengan kebutuhan pelanggan
Place Of Origin:
Zhejiang, Tiongkok (Daratan)
Surface Treatment:
Sebagai kebutuhan pelanggan
Deskripsi Produk
Silinder Teleskopik tahan lama tabung tanpa jahitan yang ditarik dingin OD 40-400mm
Bahan:20#,45#,Q345B,Q345D,25Mn,27SiMn,E355
| Tabung Silinder Pneumatik | Tabung silinder hidrolik | ||||||||
ID mm | OD mm | Ketebalan (mm) | Unit berat (kg/m) | ID mm | OD mm | Ketebalan (mm) | Unit berat (kg/m) | ||
| 90 | 100 | 5 | 11.71 | 50 | 60 | 5 | 6.78 | ||
| 50 | 63 | 6.5 | 9.06 | ||||||
| 100 | 110 | 5 | 12.95 | 50 | 65 | 7.5 | 10.63 | ||
| 50 | 70 | 10 | 14.8 | ||||||
| 125 | 135 | 5 | 16.03 | 56 | 66 | 5 | 7.52 | ||
| 60 | 70 | 5 | 8.01 | ||||||
| 140 | 152 | 6 | 21.6 | 60 | 73 | 6.5 | 10.66 | ||
| 60 | 80 | 10 | 17.26 | ||||||
| 150 | 160 | 5 | 19.11 | 63 | 76 | 6.5 | 11.14 | ||
| 63 | 80 | 8.5 | 14.99 | ||||||
| 160 | 170 | 5 | 20.34 | 63 | 83 | 10 | 18 | ||
| 65 | 75 | 5 | 8.63 | ||||||
| 160 | 172 | 6 | 24.56 | 65 | 80 | 7.5 | 13.41 | ||
| 70 | 80 | 5 | 9.25 | ||||||
| 180 | 194 | 7 | 32.28 | 70 | 83 | 6.5 | 12.26 | ||
| 70 | 86 | 8 | 15.39 | ||||||
| 200 | 214 | 7 | 35.73 | 70 | 90 | 10 | 19.73 | ||
| 75 | 90 | 7.5 | 15.26 | ||||||
| 200 | 216 | 8 | 41.03 | 75 | 95 | 10 | 20.96 | ||
| 80 | 93 | 6.5 | 13.87 | ||||||
| 200 | 219 | 9.5 | 49.08 | 80 | 95 | 7.5 | 16.18 | ||
| 80 | 100 | 10 | 22.19 | ||||||
| 250 | 266 | 8 | 50.9 | 80 | 102 | 11 | 24.68 | ||
| 80 | 108 | 14 | 32.45 | ||||||
| 250 | 273 | 11.5 | 74.16 | 85 | 98 | 6.5 | 14.67 | ||
| 85 | 100 | 7.5 | 17.11 | ||||||
| 300 | 320 | 10 | 76.45 | 85 | 105 | 10 | 23.43 | ||
| 90 | 102 | 6 | 14.2 | ||||||
| 320 | 340 | 10 | 81.38 | 90 | 105 | 7.5 | 18.03 | ||
| 90 | 108 | 9 | 21.97 | ||||||
| 400 | 426 | 13 | 132.4 | 90 | 110 | 10 | 24.66 | ||
| 90 | 114 | 12 | 30.18 | ||||||
| Tabung baja tarik dingin presisi tinggi yang digunakan untuk silinder hidrolik dan silinder pneumatik | |||||||||
| Tabung silinder hidrolik | Tabung silinder hidrolik | ||||||||
ID mm | OD mm | Ketebalan (mm) | Unit berat (kg/m) | ID mm | OD mm | Ketebalan (mm) | Unit berat (kg/m) | ||
| 100 | 115 | 7.5 | 19.88 | 140 | 178 | 19 | 74.5 | ||
| 100 | 118 | 9 | 24.19 | 150 | 168 | 9 | 35.29 | ||
| 100 | 121 | 10.5 | 28.61 | 150 | 170 | 10 | 39.46 | ||
| 100 | 127 | 13.5 | 37.79 | 150 | 175 | 12.5 | 50.09 | ||
| 110 | 127 | 8.5 | 24.84 | 150 | 180 | 15 | 61.03 | ||
| 110 | 130 | 10 | 25.59 | 160 | 180 | 10 | 41.92 | ||
| 110 | 133 | 11.5 | 34.46 | 160 | 184 | 12 | 50.9 | ||
| 110 | 140 | 15 | 46.24 | 160 | 188 | 14 | 60.07 | ||
| 115 | 131 | 8 | 24.27 | 160 | 190 | 15 | 64.73 | ||
| 115 | 135 | 10 | 30.83 | 160 | 194 | 17 | 74.2 | ||
| 115 | 138 | 11.5 | 35.87 | 170 | 203 | 16.5 | 75.88 | ||
| 115 | 140 | 12.5 | 39.3 | 175 | 194 | 9.5 | 43.22 | ||
| 120 | 135 | 7.5 | 23.58 | 180 | 200 | 10 | 46.85 | ||
| 120 | 140 | 10 | 32.06 | 180 | 203 | 11.5 | 54.31 | ||
| 120 | 142 | 11 | 35.54 | 180 | 210 | 15 | 72.13 | ||
| 120 | 146 | 13 | 42.64 | 180 | 214 | 17 | 82.59 | ||
| 125 | 140 | 7.5 | 24.51 | 180 | 219 | 19.5 | 95.93 | ||
| 125 | 146 | 10.5 | 35.09 | 200 | 225 | 12.5 | 65.5 | ||
| 125 | 148 | 11.5 | 38.71 | 200 | 230 | 15 | 79.53 | ||
| 125 | 150 | 12.5 | 42.38 | 200 | 235 | 17.5 | 93.86 | ||
| 125 | 152 | 13.5 | 46.11 | 200 | 245 | 22.5 | 123.45 | ||
| 125 | 156 | 15.5 | 53.7 | 220 | 250 | 15 | 86.93 | ||
| 125 | 159 | 17 | 59.53 | 220 | 273 | 26.5 | 161.09 | ||
| 130 | 152 | 11 | 38.25 | 250 | 280 | 15 | 98.02 | ||
| 130 | 156 | 13 | 45.84 | 250 | 299 | 24.5 | 165.84 | ||
| 130 | 160 | 15 | 53.64 | 280 | 325 | 22.5 | 167.84 | ||
| 135 | 160 | 12.5 | 45.47 | 280 | 351 | 35.5 | 276.2 | ||
| 140 | 160 | 10 | 36.99 | 300 | 351 | 25.5 | 204.68 | ||
| 140 | 163 | 11.5 | 42.96 | 300 | 377 | 38.5 | 321.38 | ||
| 140 | 166 | 13 | 49.05 | 320 | 351 | 15.5 | 128.24 | ||
| 140 | 168 | 14 | 53.17 | 320 | 377 | 28.5 | 244.93 | ||
| Ukuran tabung dalam inci (Unit, : inci) | |||||||||
| ID | 1 1/2 " | 2 " | 2 1/2 " | 3 " | 3 1/2 " | ||||
| ID | 4" | 5" | 6" | / | / | ||||
| Tabung tarik dingin untuk silinder teleskopik | |||||||||
| Tabung baja tarik dingin yang dilas Spesifikasi | EN10305-2 | ||||||||
| Kelas & Kondisi | E355+SR | ||||||||
| Y.S. | ≥540N/mm2 | ||||||||
| T.S. | ≥ 640N/mm2 | ||||||||
| % Penghargaan | ≥15% | ||||||||
| Nilai dampak | ≥27 J ((-20°C,10*10*55) | ||||||||
| Kekerasan ID | HB180-210 | ||||||||
| ID Kerapatan | ≤ 1,2um | ||||||||
| OD Kerontokan | ≤ 3,2um | ||||||||
| Konsentrisitas | ≤ 2% | ||||||||
| Ovalitas | ≤ 0,2 mm | ||||||||
| Kejujuran | ≤ 0,3 mm/m | ||||||||
| N.D.T. | ET+UT | ||||||||
