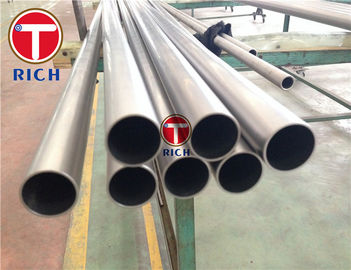

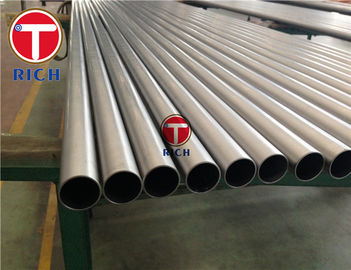

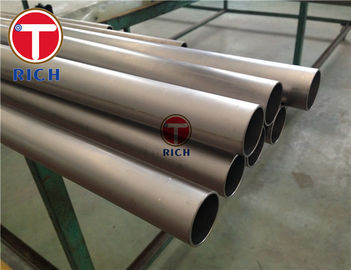

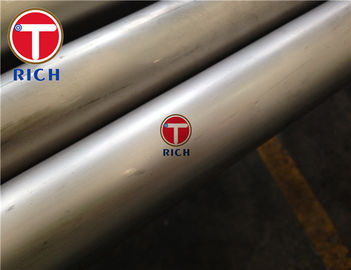

GB / T 30059 Alloy Steel Pipe Incoloy 800 Inconel 600 Seamless Untuk Penukar Panas
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO 9001 ISO14001 TS16949
Nomor Model:
GB / T 30059
Properti Perdagangan
Jumlah Pesanan Minimum:
1 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:
60000 Ton per Tahun
Ringkasan Produk
Deskripsi produk: Tabung paduan tahan korosi tanpa jahitan GB/T 30059 Incoloy 800 Inconel 600 Untuk penukar panas Kelas baja/bahan baja: Kelas baja Kelas Baja ASTM C Cr Tidak Fe Mo Cu Al Ti Nb Co. Ya. Mn P S NS1101 N08800 (Incoloy 800) ≤ 0.010 19.0-23.0 30.0-35.0 Sisanya - ≤ 0.75 0.15-0.60 0.15-0.60 ...
Rincian produk
Menyoroti:
baja paduan tabung mulus
,seamless alloy steel pipe
Characteristic:
Tabung Paduan Tahan Korosi yang Mulus
Material:
Incoloy 800, Incoloy 825, Inconel 600 dll
Production Method:
Diproduksi oleh ditarik dingin (cold rolled)
Package:
Dalam bundel atau sesuai permintaan
End Protector:
Polos
Length:
2-12m
Type:
tabung paduan
MTC:
EN10204.3.1
Deskripsi Produk
Deskripsi produk:
Tabung paduan tahan korosi tanpa jahitan GB/T 30059 Incoloy 800 Inconel 600 Untuk penukar panas
Kelas baja/bahan baja:
| Kelas baja | Kelas Baja ASTM | C | Cr | Tidak | Fe | Mo | Cu | Al | Ti | Nb | Co. | Ya. | Mn | P | S |
| NS1101 | N08800 (Incoloy 800) | ≤ 0.010 | 19.0-23.0 | 30.0-35.0 | Sisanya | - | ≤ 0.75 | 0.15-0.60 | 0.15-0.60 | - | - | ≤ 1.00 | ≤ 1.50 | ≤ 0.030 | ≤ 0.015 |
| NS1102 | N08810 (Incoloy 800H) | 0.05-0.10 | 19.0-23.0 | 30.0-35.0 | Sisanya | - | ≤ 0.75 | 0.15-0.60 | 0.15-0.60 | - | - | ≤ 1.00 | ≤ 1.50 | ≤ 0.030 | ≤ 0.015 |
| NS1103 | - | ≤ 0.030 | 24.0-26.5 | 34.0-37.0 | Sisanya | - | - | 0.15-0.45 | 0.15-0.60 | - | - | 0.30-0.70 | 0.50-1.50 | ≤ 0.030 | ≤ 0.030 |
| NS1401 | - | ≤ 0.030 | 25.0-27.0 | 34.0-37.0 | Sisanya | 2.0-3.0 | 3.0-4.0 | - | 0.40-0.90 | - | - | ≤ 0.70 | ≤ 1.00 | ≤ 0.030 | ≤ 0.030 |
| NS1402 | N08825 (Incoloy 825) | ≤ 0.05 | 19.0-23.5 | 38.0-46.0 | ≥ 22.0 | 2.5-3.5 | 1.5-3.0 | ≤ 0.20 | 0.60-1.20 | - | - | ≤ 0.50 | ≤ 1.00 | ≤ 0.030 | ≤ 0.015 |
| NS3102 | N06600 (Inconel 600) | ≤ 0.15 | 14.0-17.0 | Sisanya | 6.0-10.0 | - | ≤ 0.50 | - | - | - | - | ≤ 0.50 | ≤ 1.00 | ≤ 0.030 | ≤ 0.015 |
| NS3105 | N06690 (Inconel 690) | ≤ 0.05 | 27.0-31.0 | Sisanya | 7.0-11.0 | - | ≤ 0.50 | - | - | - | - | ≤ 0.50 | ≤ 0.50 | ≤ 0.030 | ≤ 0.015 |
| NS3306 | N06625 (Inconel 625) | ≤ 0.10 | 20.0-23.0 | Sisanya | ≤ 5.0 | 8.0-10.0 | - | ≤ 0.40 | ≤ 0.40 | 3.15-4.15 | ≤ 1.00 | ≤ 0.50 | ≤ 0.50 | ≤ 0.015 | ≤ 0.015 |
Sifat Mekanis:
| Kelas baja | Kelas Baja ASTM | Sifat Mekanis | ||
| Kekuatan tarik Rm/MPa | Kekuatan Hasil RP0.2/MPa | Perpanjangan A/% | ||
| ≥ | ||||
| NS1101 | N08800 (Incoloy 800) | 517 | 207 | 30 |
| NS1102 | N08810 (Incoloy 800H) | 448 | 172 | 30 |
| NS1103 | - | 515 | 205 | 30 |
| NS1404 | - | 540 | 215 | 35 |
| NS1402 | N08825 (Incoloy 825) | 586 | 241 | 30 |
| NS3102 | N06600 (Inconel 600) | 552 | 241 | 30 |
| NS3105 | N06690 (Inconel 690) | 586 | 241 | 30 |
| NS3306 | N06625 (Inconel 625) | 690 | 276 | 30 |
Kondisi pengiriman:
Diiris dan ditumbuk, diiris terang, ditarik dingin atau rol dingin
Jangkauan ukuran:
OD: 6-219mm
WT: 0,5-10mm
Panjang: 2000-12000mm
Ukuran biasa kami: 26.7x2.87mm, 6.35x1.65mm, 25x2mm dll
Karakteristik pipa berlapis:
Kekuatan tinggi
Mudah dibentuk mesin
Tahan korosi
Kualitas stabil
Kerontokan yang halus
TORICH Jaminan Kualitas
Proses Produksi:
Pengolahan dan pemurnian bahan bakar
Pemasok dingin tanpa jahitan atau digulung dingin tanpa jahitan
Bahan baku baja:
Tabung produksi:
Uji arus eddy dan uji ultrasonik:
Inspeksi kualitas di laboratorium:
Kemasan:
Tabung paduan tahan korosi tanpa jahitan GB/T 30059 Incoloy 800 Inconel 600 Untuk penukar panas
