ASTM A335 Alloy Steel Pipe OD 6 - 450mm untuk Layanan Suhu Tinggi
Properti Dasar
Tempat Asal:
Zhejiang, China
Nama merek:
TORICH
Sertifikasi:
ISO9001 ISO14001 TS16949
Nomor Model:
ASTM A335
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T / T, L / C, D / A, D / A, D / P, Western Union, MoneyGram
Kemampuan Penyediaan:
50000 TON PER TAHUN
Ringkasan Produk
ASTM A335 Alloy Steel Pipe OD 6 - 450mm untuk Layanan Suhu Tinggi ASTM A335 Pipa baja ferit dan paduan tanpa jahitan untuk layanan suhu tinggi Aplikasi: untuk boiler, superheater, exchanger panas Jangkauan ukuran:O.D.:6-420mm W.T.:1-50mm L: sesuai dengan kebutuhan pelanggan ASTM a103 ASTM A335 pipa ...
Rincian produk
Menyoroti:
tabung baja paduan
,seamless alloy steel pipe
Keyword:
Alloy Steel Pipe
Shape:
Bulat
Length:
1-12000mm
OD:
6-450mm
WT:
1-50mm
Technique:
Dingin ditarik
Usage:
untuk Layanan Suhu Tinggi, misalnya, pipa Boiler
Brand:
UNTUK KAYA
Grade:
10 #, 45 #, 16Mn, Q195, ST42, ST45
Place Of Origin:
Zhejiang, China
Deskripsi Produk

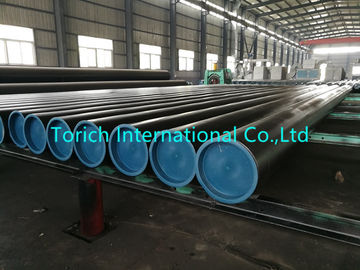

ASTM A335 Alloy Steel Pipe OD 6 - 450mm untuk Layanan Suhu Tinggi
ASTM A335 Pipa baja ferit dan paduan tanpa jahitan untuk layanan suhu tinggi
Aplikasi: untuk boiler, superheater, exchanger panas
Jangkauan ukuran:O.D.:6-420mm W.T.:1-50mm L: sesuai dengan kebutuhan pelanggan
ASTM a103 ASTM A335 pipa baja tanpa jahitan dari baja paduan ferit
| Kelas baja dan komposisi kimia: | |||||||
| Kelas baja | C | Mn | P | S | Ya. | Cr | Mo |
| maksimal | maksimal | maksimal | maksimal | maksimal | menit | ||
| P5 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | 4.00-6.00 | 0.45-0.65 |
| P9 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.90-1.10 |
| P11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
| P12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | 0.50 | 0.80-1.25 | 0.44-0.65 |
| P21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | 2.65-3.35 | 0.80-1.06 |
| P22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | 1.90-2.60 | 0.87-1.13 |
| P91 | 0.08-0.12 | 0.30-0.60 | 0.020 | 0.010 | 0.20-0.50 | 8.00-9.50 | 0.85-1.05 |
| P92 | 0.07-0.13 | 0.30-0.60 | 0.020 | 0.010 | 0.50 | 8.50-9.50 | 0.30-0.60 |
| Kelas baja | Kekuatan tarik | Kekuatan Hasil | Perpanjangan | Kekerasan.Max. | ||
| Min.ksi [Mpa] | Min.ksi [Mpa] | % | Brinell/Vickers | Rockwell | ||
| P1, P2 | 55[380] | 30[205] | 20 | |||
| P12 | 60[415] | 32[220] | 20 | |||
| P23 | 74[510] | 58[400] | 20 | |||
| P91 | 85[585] | 60[415] | 30 | 250 HB/265 HV | 25 HRC | |
| P92, P911 | 90[620] | 64[440] | 30 | 250 HB/265 HV | 25 HRC | |
| P122 | 90[620] | 58[400] | 30 | 250 HB/265 HV | 25 HRC | |
Foto produk
