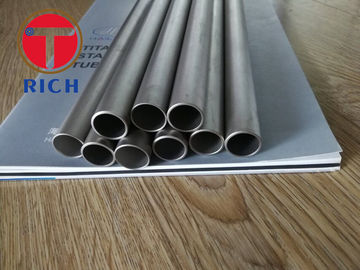

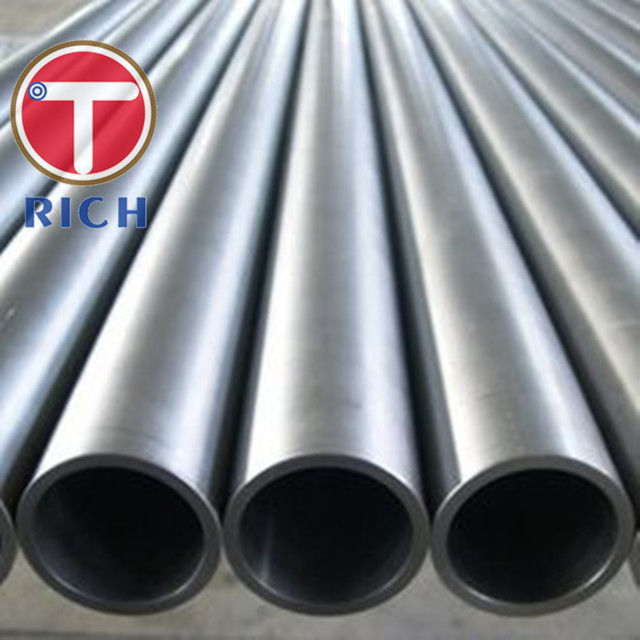

Round Seamless Titanium Pipe Alloy Steel Pipe Untuk Kondensor / Stainless Steel Tubing Untuk Heater Exchanger
Properti Dasar
Tempat Asal:
Zhejiang, China
Nama merek:
TORICH
Sertifikasi:
ISO9001 ISO14001 TS16949
Nomor Model:
GB / T3624, GB / T3625, ASTM B338 / ASME SB338, ASTM B861 / ASME SB861, DIN17861
Properti Perdagangan
Jumlah Pesanan Minimum:
500KG
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T / T, L / C, D / A, D / P, Western Union, MoneyGram
Kemampuan Penyediaan:
5000 TON PER BULAN
Ringkasan Produk
Tabung Titanium Bulat Tanpa Sambungan Alloy Steel Pipe Untuk Kondensor / Stainless Steel Tubing Untuk Heater Exchanger Standar:GB/T3624, GB/T3625, ASTM B338/ASME SB338, ASTM B861/ASME SB861, DIN17861 Jangkauan ukuran:OD: 10-80mm WT: 0,5-4,5mm Panjang: 15m maksimal Bahan:TA1, TA2, TA3, TA9, TA10 ...
Rincian produk
Menyoroti:
baja paduan tabung mulus
,seamless alloy steel pipe
Product Name:
Pipa Titanium Bulat Seamless Pipa Baja Paduan Untuk Kondensor / Tabung Stainless Steel Untuk Penukar
Keyword:
Pipa Baja Paduan
Application:
untuk Kondensor dan Heater-Exchanger
Shape:
Bulat
Standard:
GB/T3624, GB/T3625, ASTM B338, dll
Material:
TA1, TA2, TA3, TA9, TA10
Surface:
pemolesan
OD:
10-80mm
WT:
0,5-4.5mm
Length:
Maks 12000mm
Deskripsi Produk
Tabung Titanium Bulat Tanpa Sambungan Alloy Steel Pipe Untuk Kondensor / Stainless Steel Tubing Untuk Heater Exchanger
Standar:GB/T3624, GB/T3625, ASTM B338/ASME SB338, ASTM B861/ASME SB861, DIN17861
Jangkauan ukuran:OD: 10-80mm
WT: 0,5-4,5mm
Panjang: 15m maksimal
Bahan:TA1, TA2, TA3, TA9, TA10
Penggunaan:Kondensator dan Penukar Panas
Komposisi Kimia %
| Kelas | N maksimal | C maksimal | H maksimal | Fe maksimal | O maksimal | Sisa | Al | V | Pd | Mo | Cr | Ya. maksimal | S maksimal | Mn maksimal | Cu | lainnya Ers | Tidak | Ti | |
| Setiap maksimal | Total maksimal | ||||||||||||||||||
| TA1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | 0.1 | 0.4 | - | - | - | - | - | - | - | - | - | - | - | saldo |
| TA2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | 0.1 | 0.4 | - | - | - | - | - | - | - | - | - | - | - | saldo |
| TA3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | 0.1 | 0.4 | - | - | - | - | - | - | - | - | - | - | - | saldo |
| TA9 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | 0.1 | 0.4 | - | - | 0.12-0.25 | - | - | - | - | - | - | - | - | saldo |
| TA10 | 0.03 | 0.08 | 0.015 | 0.30 | 0.025 | 0.1 | 0.4 | - | - | - | 0.2-0.4 | - | - | - | - | - | - | 0.6-0.9 | saldo |
Sifat Mekanis
| Kelas | TS ((Mpa) | YS(Mpa) | E ((%), min |
| TA1 | ≥ 240 | 140-310 | 24 |
| TA2 | ≥ 400 | 275-450 | 20 |
| TA3 | ≥ 500 | 380-550 | 18 |
| TA9 | ≥ 400 | 275-450 | 20 |
| TA10 | ≥460 | ≥ 300 | 18 |
Karakteristik:
Konsentrisitas yang baik Keakuratan tinggi
Kualitas permukaan yang baik Kualitas yang stabil
Toleransi OD dan ID yang baik Kerapatan halus
Pipa titanium tanpa jahitan untuk kondensor dan penukar panas dari TORICH
