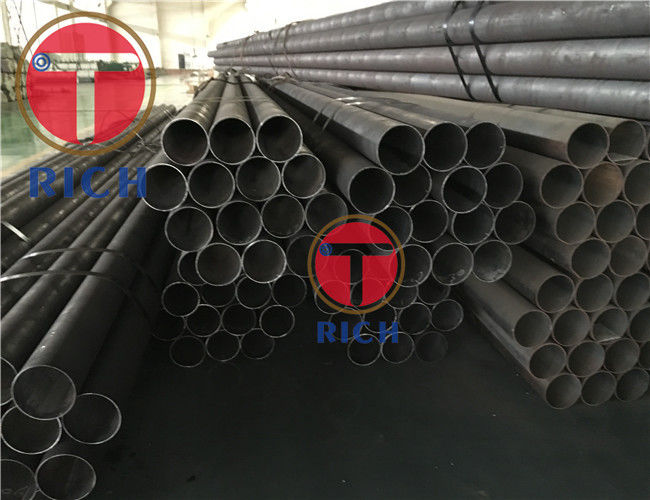

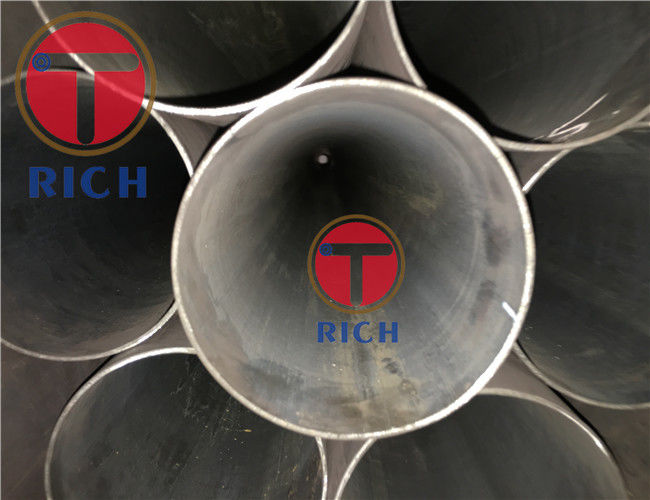

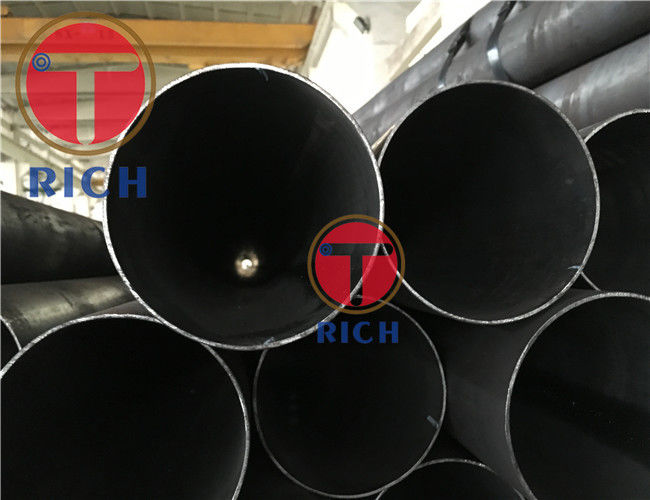

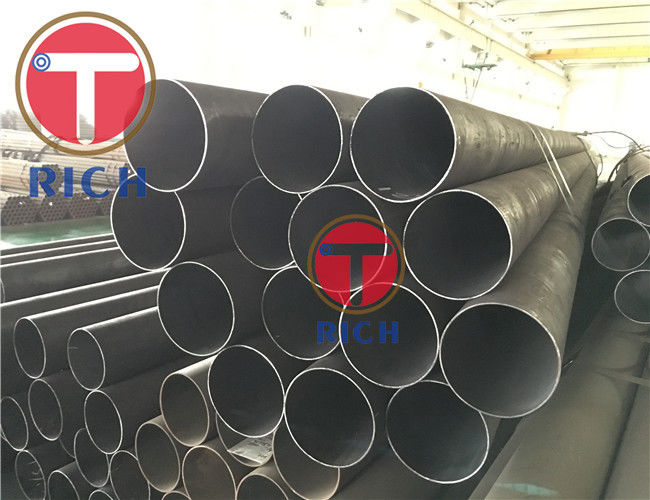

GB/T 8162 1020 Pipa Baja Mulus Tarik Dingin Dinding Tipis
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO 9001 ISO14001 TS16949
Nomor Model:
GB / T 8162
Properti Perdagangan
Jumlah Pesanan Minimum:
5 ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:
60000 Ton per Tahun
Ringkasan Produk
Deskripsi produk: GB/T 8162 1020 Pipa baja tarik dingin Pipa baja tanpa jahitan dinding tipis Kelas baja/bahan baja/nomor baja: 1010 1020 1045 dll Jangkauan ukuran: OD: 4,0-1200mm WT:0.5-200mm Panjang: maksimal 12000mm Ukuran produksi kami yang biasa50x0,5mm, 60x1mm dll Karakteristik:Kualitas ...
Rincian produk
Menyoroti:
Tabung baja karbon rendah
,low carbon steel pipe
Characteristic:
tabung baja dinding tipis
Material:
1010, 1020, 1045 dll
Production Method:
Mulus dingin ditarik
Package:
Dalam bundel atau sesuai permintaan
End Protector:
Biasa / Miring
Length:
2-12 m
Type:
baja karbon Tabung
MTC:
EN10204.3.1
Deskripsi Produk
Deskripsi produk:
GB/T 8162 1020 Pipa baja tarik dingin Pipa baja tanpa jahitan dinding tipis
Kelas baja/bahan baja/nomor baja:
1010 1020 1045 dll
Jangkauan ukuran:
OD: 4,0-1200mm
WT:0.5-200mm
Panjang: maksimal 12000mm
Ukuran produksi kami yang biasa50x0,5mm, 60x1mm dll
Karakteristik:
Kualitas Permukaan yang Baik
Toleransi OD dan ID yang baik dikontrol sesuai dengan standar teknis
Kualitas stabil
100% Uji arus Eddy
TORICH Jaminan Kualitas
Proses Produksi:
Tanpa jahitan Ditarik dingin ke tabung dinding yang sangat tipis + Pengolahan panas dari Annealing atau Normalisasi
Komposisi kimia:
| Kelas baja | C | Ya. | Mn | P | S |
| 10 | 0.07-0.13 | 0.17-0.37 | 0.35-0.65 | ≤ 0.030 | ≤ 0.030 |
| 20 | 0.17-0.23 | 0.17-0.37 | 0.35-0.65 | ≤ 0.030 | ≤ 0.030 |
| 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | ≤ 0.030 | ≤ 0.030 |
Produksi tabung baja:
Uji arus eddy dan uji ultrasonik:
Kemasan:
