Galvanis Double Wall Bundy Tube Zinc Coating Untuk Rem Mobil
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Torich
Sertifikasi:
ISO 9001 ISO14001
Nomor Model:
GM123M, GM124M, TS7600G, GB 11258-89
Properti Perdagangan
Jumlah Pesanan Minimum:
100KGS
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
L/C, T/T
Kemampuan Penyediaan:
2000tons per bulan
Ringkasan Produk
TORICH Dengan Lapisan Seng Untuk Rem Mobil Double Wall Galvanized Bundy Tube 1.Standar GM123M, GM124M, TS7600G, GB 11258-89 2.Kelas baja/bahan baja/nomor baja: Baja karbon rendah, seperti SPCCBLDBLC 3.Bahan baku: Pita baja karbon rendah yang digulung dingin 4.Karakteristik: Kualitas permukaan yang ...
Rincian produk
Menyoroti:
pipa baja karbon rendah
,pipa mekanis baja
Application:
untuk Sistem Rem Mobil
Alloy Or Not:
sesuai dengan kebutuhan pelanggan
Technique:
Lasan
Thickness:
0,5-2mm
Standard:
ASTM
Surface Treatment:
Galvanis, PVF, Nylon dll
Deskripsi Produk
TORICH Dengan Lapisan Seng Untuk Rem Mobil Double Wall Galvanized Bundy Tube
1.Standar
GM123M, GM124M, TS7600G, GB 11258-89
2.Kelas baja/bahan baja/nomor baja:
Baja karbon rendah, seperti SPCCBLDBLC
3.Bahan baku:
Pita baja karbon rendah yang digulung dingin
4.Karakteristik:
Kualitas permukaan yang baik, lapisan seragam
Tidak ada lapisan burr
Kualitas stabil
Ketahanan korosi yang sangat baik
TORICH Jaminan Kualitas
5.Aplikasi:
Tabung rem pada mobil
6.Spesifikasi:
| OD ((mm) | Toleransi OD ((mm) | WT(mm) | Toleransi WT ((mm) | Panjang gulungan |
| 4.76 (3/16 ¢) |
+/- 0,10 atau sesuai kebutuhan pelanggan |
0.7 |
+/- 0.07 |
600-1000m/coil |
| 6 | ||||
| 6.35 | ||||
| 8 (5/16 ¢) | ||||
| 9.5 (3/8) | ||||
| 10 | ||||
| 11.1 (7/16) | ||||
| 12 | ||||
| 12.7 (1/2 ¢) | ||||
| 8 |
1 |
+/- 0.1 | ||
| 10 | ||||
| 12 |
7Sifat mekanik:
| Kekuatan tarik (min) | 270MPa |
| Kekuatan hasil (menit) | 180 MPa |
| Elongasi (menit) | 14% |
8. Lapisan:
| Jenis | Ketebalan | Waktu uji semprotan garam |
| Lapisan seng putih | 8 μm | 72 jam |
| lapisan seng warna | 8 μm | 72 jam |
| Lapisan hijau zaitun | 8 μm | 180 jam |
| Lapisan PVF | seng putih 8μm + PVF 20μm | 1000 jam |
| Lapisan nilon | seng putih 8μm + nilon 40μm | 10000 jam |
9Pengemasan:Dalam gulungan, dalam kotak kayu dengan kemasan yang layak untuk laut

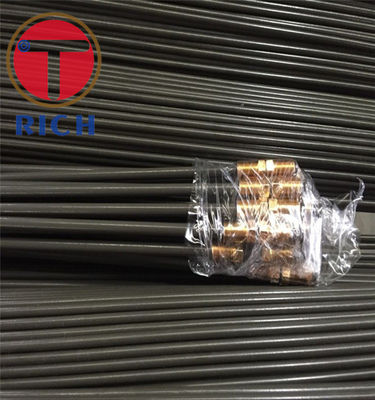

10Foto produk:
