Pipa Baja Paduan Dingin Ditarik ASTM A335 12,7 - 177,8mm OD 4 - 12,5m Panjang
Properti Dasar
Tempat Asal:
Cina
Nama merek:
TORICH
Sertifikasi:
ISO9001 TSI16949
Nomor Model:
ASTM A335
Properti Perdagangan
Jumlah Pesanan Minimum:
5 Ton
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
D / A, L / C, D / A, D / P, T / T, Serikat Barat, MoneyGram
Kemampuan Penyediaan:
6000 ton / tahun
Ringkasan Produk
Pipa paduan ASTM A335 P5, P9, P11, P22, P91 Pipa baja paduan digunakan dalam industri energi untuk suhu tinggi dan layanan suhu sangat rendah (kriogenik), atau untuk aplikasi dengan tekanan yang sangat tinggi. Pipa baja paduan ASTM A335 cocok dengan fittings dan flanges ASTM A234 seri WPx buttweld ...
Rincian produk
Menyoroti:
tabung baja paduan
,tabung baja paduan baja mulus
Product Name:
Pipa Alloy ASTM A335
Grade:
P5, P9, P11, P22, P91
Technique:
Dingin Diambil
OD:
12.7-177.8mm
WT:
2.2-25.4mm
Length:
4-12.5m
Alloy Or Not:
Paduan
Secondary Or Not:
Non-sekunder
Certificate:
EN10204.3.1
Shipment:
Laut, udara
Deskripsi Produk
Pipa paduan ASTM A335 P5, P9, P11, P22, P91
Pipa baja paduan digunakan dalam industri energi untuk suhu tinggi dan layanan suhu sangat rendah (kriogenik), atau untuk aplikasi dengan tekanan yang sangat tinggi.
Pipa baja paduan ASTM A335 cocok dengan fittings dan flanges ASTM A234 seri WPx buttweld (WP5, WP9, WP91) dan A182 Fx forged fittings and flanges (A182 F5, F9, F11, F22, F91).Semua bahan ini memiliki sifat kimia dan mekanik yang sama dan dapat digabungkan atau dilas.
Jangkauan ukuran:O.D.:6-420mm W.T.:1-50mm L: sesuai dengan kebutuhan pelangganPipa boiler ASTM A335 P1 baja paduan tanpa jahitan
| Kelas baja dan komposisi kimia: | |||||||
| Kelas baja | C | Mn | P | S | Ya. | Cr | Mo |
| maksimal | maksimal | maksimal | maksimal | maksimal | menit | ||
| P1 | 0.10-0.20 | 0.30-0.80 | 0.025 | 0.025 | 0.10-0.50 | - | 0.44-0.65 |
| P9 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.90-1.10 |
| P11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
| P12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | 0.50 | 0.80-1.25 | 0.44-0.65 |
| P21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | 2.65-3.35 | 0.80-1.06 |
| P22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | 1.90-2.60 | 0.87-1.13 |
| P91 | 0.08-0.12 | 0.30-0.60 | 0.020 | 0.010 | 0.20-0.50 | 8.00-9.50 | 0.85-1.05 |
| P92 | 0.07-0.13 | 0.30-0.60 | 0.020 | 0.010 | 0.50 | 8.50-9.50 | 0.30-0.60 |
| Kelas baja | Kekuatan tarik | Kekuatan Hasil | Perpanjangan | Kekerasan.Max. | ||
| Min.ksi [Mpa] | Min.ksi [Mpa] | % | Brinell/Vickers | Rockwell | ||
| P1, P2 | 55[380] | 30[205] | 20 | |||
| P12 | 60[415] | 32[220] | 20 | |||
| P23 | 74[510] | 58[400] | 20 | |||
| P91 | 85[585] | 60[415] | 30 | 250 HB/265 HV | 25 HRC | |
| P92, P911 | 90[620] | 64[440] | 30 | 250 HB/265 HV | 25 HRC | |
| P122 | 90[620] | 58[400] | 30 | 250 HB/265 HV | 25 HRC | |
Aplikasi:untuk boiler, superheater, exchanger panas

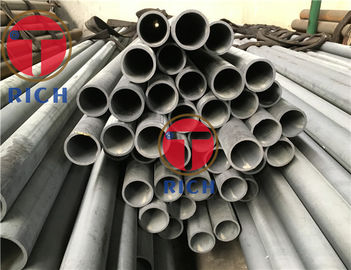

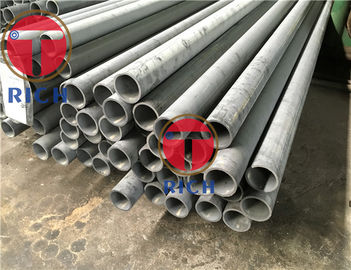

Pipa paduan ASTM A335 Foto-foto
