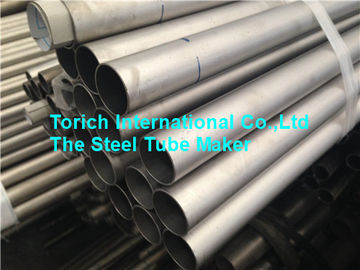

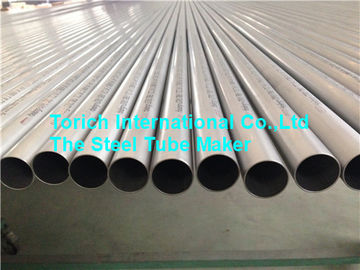

Titanium Seamless Panjang 15m TA1 TA2 Alloy Steel Pipe
Rincian produk
tabung baja paduan
,tabung baja paduan baja mulus
TORICH GB/T 3625 TA1 TA2 Titanium Heat Exchanger Tabung tanpa jahitan
OD:2.5 ~ 150mm
WT:0.5-10mm
Kelas:TA1, TA2, TA3, TA9, TA9-1, TA10.
Standar:Gr/T3624-1991,Gr/T3625-1995 ASTM AB338
Ukuran:OD:4-114mm WT: 0.2-4.mm
Kemasan:Paket kemasan, kotak kayu.
Elemen kimia:
| Kelas baja | Komposisi Kimia Nominal | Komposisi kimia/% | ||||||||||||
| Komponen utama | Ketidaktentuan, maksimal | |||||||||||||
| Ti | Mo | Pd | Tidak | Ya. | B | Fe | C | N | H | O | lainnya | |||
| Single | Jumlah | |||||||||||||
| TA1 | Industri Titanium | Tetap | ️ | ️ | ️ | ️ | ️ | 0.20 | 0.08 | 0.03 | 0.015 | 0.18 | 0.10 | 0.40 |
| TA2 | Industri Titanium | Tetap | ️ | ️ | ️ | ️ | ️ | 0.30 | 0.08 | 0.03 | 0.015 | 0.25 | 0.10 | 0.40 |
| TA3 | Industri Titanium | Tetap | ️ | ️ | ️ | ️ | ️ | 0.30 | 0.08 | 0.05 | 0.015 | 0.35 | 0.10 | 0.40 |
| TA9 | Ti-0.2Pd | Tetap | ️ | 0.12 ~ 0.25 | ️ | ️ | ️ | 0.30 | 0.08 | 0.03 | 0.015 | 0.25 | 0.10 | 0.40 |
| TA9-1 | Ti-0.2Pd | Tetap | ️ | 0.12 ~ 0.25 | ️ | ️ | ️ | 0.20 | 0.08 | 0.03 | 0.015 | 0.18 | 0.10 | 0.40 |
| TA10 | Ti-0.3Mo-0.8Ni | Tetap | 0.2 ~ 0.4 | ️ | 0.6 ~ 0.9 | ️ | ️ | 0.30 | 0.08 | 0.03 | 0.015 | 0.25 | 0.10 | 0.40 |
Mesin penggiling:
| Keamanan mekanik pada suhu kamar | ||||
| Kelas paduan | Kondisi | Keamanan mekanik pada suhu kamar | ||
| Kekuatan tarik /Mpa | Kekuatan perpanjangan tidak proporsional yang ditentukan /Mpa | persentase elongasi setelah patah tulang % | ||
| TA1 | Penggilingan | ≥ 240 | 140-310 | ≥ 24 |
| TA2 | ≥ 400 | 275-450 | ≥ 20 | |
| TA3 | ≥ 500 | 380-550 | ≥ 18 | |
| TA9 | ≥ 400 | 275-450 | ≥ 20 | |
| TA9-1 | ≥ 240 | 140-310 | ≥ 24 | |
| TA10 | ≥460 | ≥ 300 | ≥ 18 | |
Standar Amerika: ASTM B 337 B 338
Pembuat tabung baja, jika ada minat jangan ragu untuk email kami.
Dokumen referensi:
GB/T 228 Pengujian ketegangan bahan logam pada suhu lingkungan
GB/T 241 Pengujian Hidrostatik Tabung Logam
GB/T 244 Uji lentur tabung logam
GB/T 246 Uji perataan tabung logam
GB/T 3620.1 Tingkat titanium dan paduan titanium dan komposisi kimia
GB/T 3620.2 Komposisi kimia produk pengolahan titanium dan paduan titanium Penyimpangan yang diizinkan
GB/T 4698 Metode analisis kimia titanium spons, titanium dan paduan titanium
GB/T 8180 Pengemasan produk pengolahan titanium dan paduan titanium, penandaan, transportasi dan penyimpanan
GB/T 12969 Metode pengujian pipa titanium dan paduan titanium dengan ultrasonik dan eddy current
T: Apakah Anda perusahaan dagang atau produsen?
A: Penemu profesional pipa baja, produsen dan penyedia solusi
T: Berapa lama waktu pengiriman Anda?
A: Umumnya adalah 7-14 hari jika barang ada di stok. atau 30-60 hari jika barang tidak ada di stok, dan itu sesuai dengan kuantitas.
T: Apakah Anda menyediakan sampel? apakah itu gratis atau tambahan?
A: Ya, kami dapat menawarkan sampel gratis tetapi Anda perlu membayar biaya pengiriman.
T: Apa syarat pembayaran Anda?
A: Pembayaran <=1000USD, 100% di muka. Pembayaran>=1000USD, 30% T / T di muka, saldo sebelum pengiriman.
Jika Anda memiliki pertanyaan lain, jangan ragu untuk menghubungi kami
