WT 50mm UNS N06002 Pipa Baja Paduan Nikel Seamless
Rincian produk
Pipa Baja Paduan UNS N06002
,Pipa Paduan Nikel UNS N06002
,Pipa Baja Paduan WT 50mm
ASTM B168 Tabung dan Tabung Alloy Nikel
Pengantar:
Standar: ASTM B168
Metode produksi:Dilapisi dingin, dilapisi panas
Od: 5-420mm
Wt:0.5-50mm
panjang:Maksimal 12000mm
Jenis:Pipa baja paduan nikel
Aplikasi: Untuk barge dan truk tangki, atmosfer karburasi, kerupuk etilena diklorida
Komposisi kimia:
| Artikel | 600 | 601 | 617 | 625 | 690 | 718 | X750 | 825 |
| C | ≤ 0.15 | ≤ 0.1 | 0.05-0.15 | ≤ 0.08 | ≤ 0.05 | ≤ 0.08 | ≤ 0.08 | ≤ 0.05 |
| Mn | ≤ 1 | ≤ 1.5 | ≤ 0.5 | ≤ 0.35 | ≤ 0.5 | ≤ 0.35 | ≤ 1 | ≤ 1 |
| Fe | 6 sampai 10 | istirahat | ≤3 | istirahat | 7-11 | istirahat | 5-9 | ≥ 22 |
| P | ≤ 0.015 | ≤ 0.02 | ≤ 0.015 | ... | ... | ... | ... | ... |
| S | ≤ 0.015 | ≤ 0.015 | ≤ 0.015 | ≤ 0.015 | ≤ 0.015 | ≤ 0.01 | ≤ 0.01 | ≤ 0.03 |
| Ya. | ≤ 0.5 | ≤ 0.5 | ≤ 0.5 | ≤ 0.35 | ≤ 0.5 | ≤ 0.35 | ≤ 0.5 | ≤ 0.5 |
| Cu | ≤ 0.5 | ≤ 1 | ... | ≤ 0.3 | ≤ 0.5 | ≤ 0.3 | ≤ 0.5 | 1.5-3 |
| Tidak | ≥ 72 | 58-63 | ≥ 44.5 | 50-55 | ≥ 58 | 50-55 | ≥ 70 | 38-46 |
| Co. | ... | ... | 10-15 | ≤10 | ... | ≤ 1 | ≤ 1 | ... |
| Al | ... | Satu satu.7 | 0.8-1.5 | ≤ 0.8 | ... | 0.2-0.8 | 0.4-1 | ≤ 0.2 |
| Ti | ... | ... | ≤ 0.6 | ≤ 1.15 | ... | ... | 2.25-2.75 | 0.6-1.2 |
| Cr | 14-17 | 21-25 | 20-24 | 17-21 | 27-31 | 17-21 | 14-17 | 19.5-23.5 |
| Nb+Ta | ... | ... | ... | 4.75-5.5 | ... | 4.75-5.5 | 0.7-1.2 | ... |
| Mo | ... | ... | 8-10 | 2.8-3.3 | ... | 2.8-3.3 | ... | 2.5-3.5 |
| B | ... | ... | ≤ 0.006 | ... | ... | ... | ... | ... |

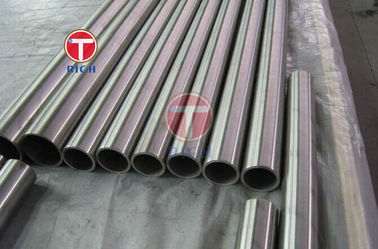

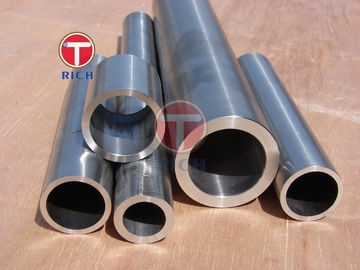

Gambar produk:
KONTROL KUALITAS
1. Inspeksi bahan baku yang masuk
2. Pengelompokan bahan baku untuk menghindari campuran kelas baja
3. Pemanasan dan Hammering End untuk Cold Drawing
4. Menggambar dingin dan penggulung dingin, pemeriksaan di jalur
5Pengolahan panas, +A, +SRA, +LC, +N, Q+T
6. Straightening-Motong ke panjang yang ditentukan-Selesai Pengukuran Inspeksi
7. Pengujian mekanik di laboratorium sendiri dengan kekuatan tarik, kekuatan hasil, elongasi, kekerasan, dampak, mikrostruktur dll
8Pengemasan dan Pengepakan
100% dari tabung baja kami diperiksa dimensi
100% tabung baja kami diperiksa secara visual untuk memastikan mereka memiliki kondisi permukaan yang sempurna dan tidak ada cacat permukaan.
Uji arus pusaran 100% dan uji ultrasonik untuk menghilangkan cacat longitudinal dan transversal
-
